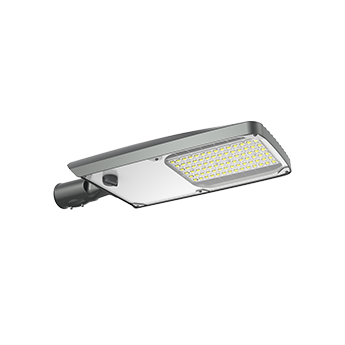

Marlin
Features
Power range: 15W–150W. Max. Output: 27,000 Lm
Luminaire efficiency: up to 180 lm/W. CCT: 1800K-6500K
Materials: Tempered Glass protection, PMMA lens, Anti-Corrosion Die-cast Aluminum Housing

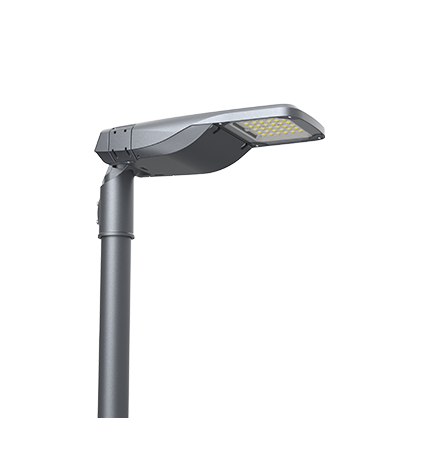

Installation: Side entry or Post top ±20° adjustable
Tool-free for easy maintenance. Innovative detachable driver chamber solution.
Smart ready: Support Nema and Zhaga receptacle for smart control connectivity
Protection Rate: IP66, up to IK09; Lifespan: >100,000 hours
Certifications: CE/CB/ENEC/ENEC+/Darksky/EPD/RoHs/IP66/IK09/D4i
Application scenarios
Highways
Arterial
Secondary
Branch roads
Major vehicle lanes
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-STD4-1-030 | UNI-STD4-2-060 | UNI-STD4-3-090 | UNI-STD4-4-120 | UNI-STD4-5-150 | |||
| Power (W) | 30 | 60 | 90 | 120 | 150 | |||
| Luminous Flux （lm） | 4800 | 9600 | 14400 | 19200 | 24000 | |||
| Working Temp. | - 40 ℃ ～45 ℃ | |||||||
| Working Humidity | 10 % ～ 90 % RH | |||||||
| Storage Temp. | - 40 ℃ ～ 55 ℃ | |||||||
| Housing Materials | Die-casting aluminum | |||||||
| IP Grade | IP66 | |||||||
| IK Grade | IK08 | |||||||
| Life Span (Hrs) | 100,000 | |||||||
Electrical
| Product Model | UNI-STD4-1-030 | UNI-STD4-2-060 | UNI-STD4-3-090 | UNI-STD4-4-120 | UNI-STD4-5-150 | |||
| Power (W) | 30 | 60 | 90 | 120 | 150 | |||
| Power Factor | ≥0.90 | ≥0.90 | ≥0.95 | ≥0.95 | ≥0.95 | |||
| Input Voltage | AC200-240V 50/60Hz | |||||||
| Driver | Osram/Tridonic/Inventronics/Moso | |||||||
Optical
| Product Model | UNI-STD4-1-030 | UNI-STD4-2-060 | UNI-STD4-3-090 | UNI-STD4-4-120 | UNI-STD4-5-150 | |||
| Power (W) | 30 | 60 | 90 | 120 | 150 | |||
| LED | Osram/5050 | |||||||
| CCT（K） | 3000K/4000K/5000K/5700K/6500K | |||||||
Light Distribution
Type I(UNI-691)
Type Ⅱ(UNI-540)
Type Ⅱ(UNI-618)
Type Ⅲ(UNI-712)
Type V(UNI-685)
Dementions
| Product Model | UNI-STD4-1-030 | UNI-STD4-2-060 | UNI-STD4-3-090 | UNI-STD4-4-120 | UNI-STD4-5-150 | |||
| Power (W) | 30 | 60 | 90 | 120 | 150 | |||
| Max Projected Area (㎡) | 0.11 | 0.14 | 0.14 | 0.17 | 0.17 | |||
| Product Dimension (mm) | 574×219×124 | 665×250×125 | 665×250×135 | 695×285×140 | 695×285×140 | |||
| Packing Dimension (mm) | 610×340×235 | 740×340×235 | 740×340×235 | 740×400×235 | 740×400×235 | |||
| Net Weight (kg) | 4.0±0.5 | 5.0±0.5 | 5.5±0.5 | 7.0±0.5 | 7.0±0.5 | |||
| Gross Weight (kg) | 5.0±0.5 | 6.5±0.5 | 7.0±0.5 | 9.0±0.5 | 9.0±0.5 | |||
Product specifications are for reference only and subject to the official contract documents.
