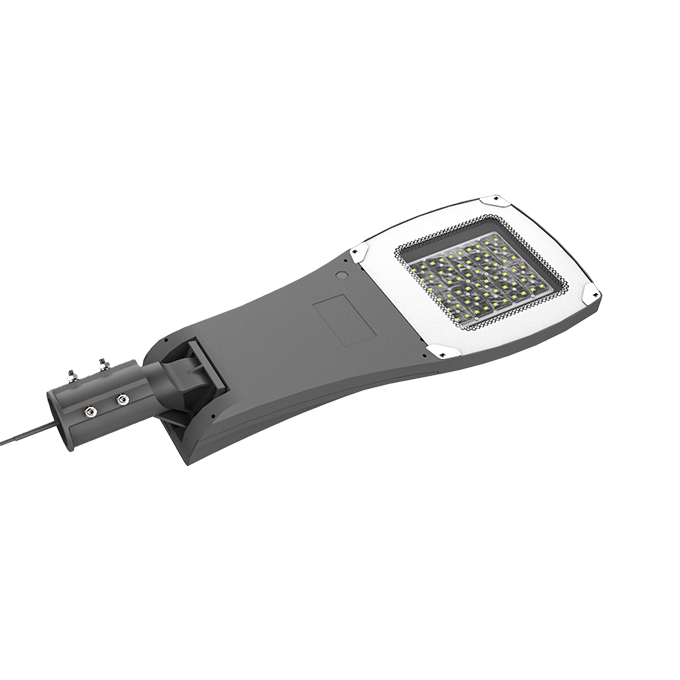

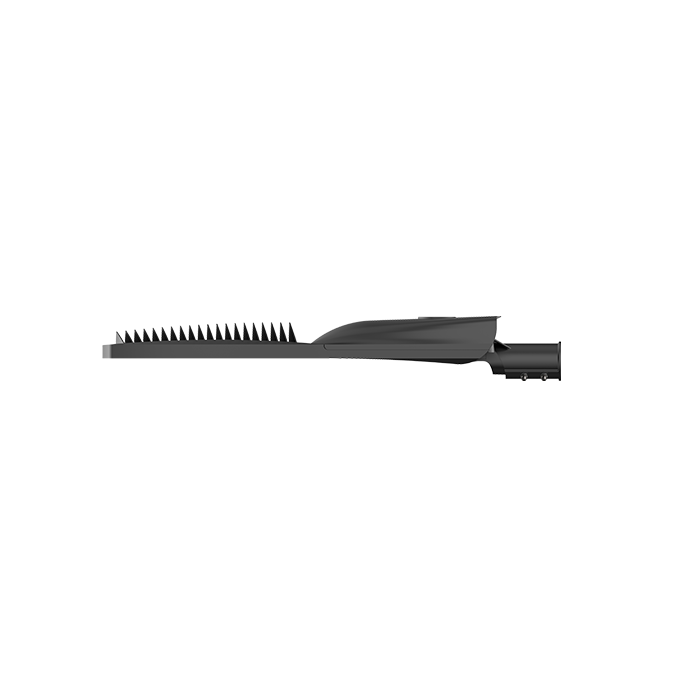

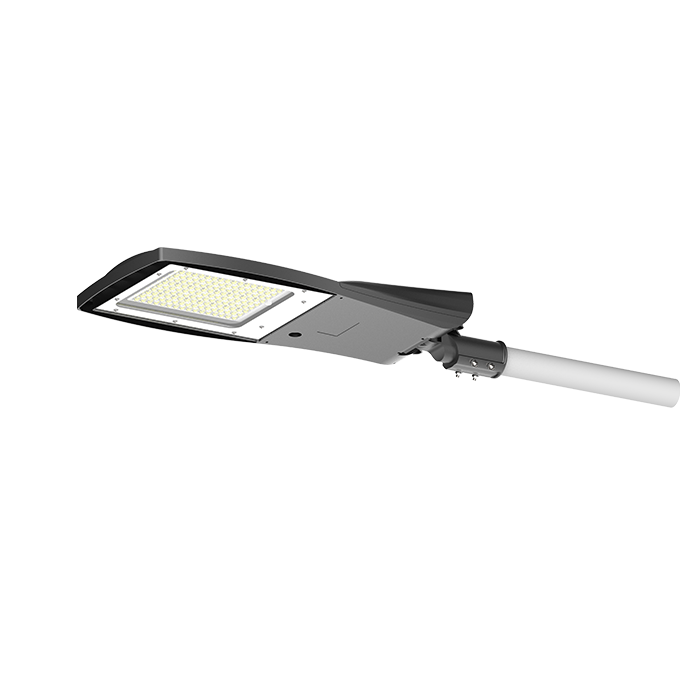

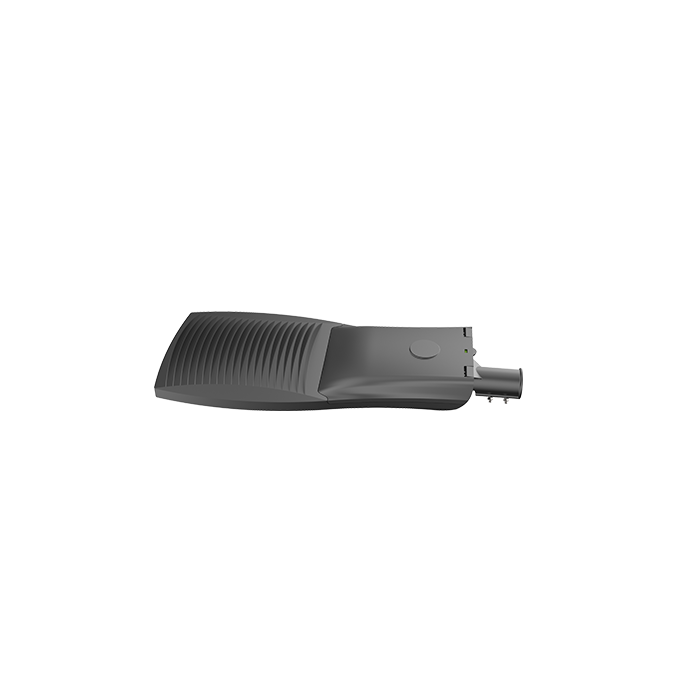

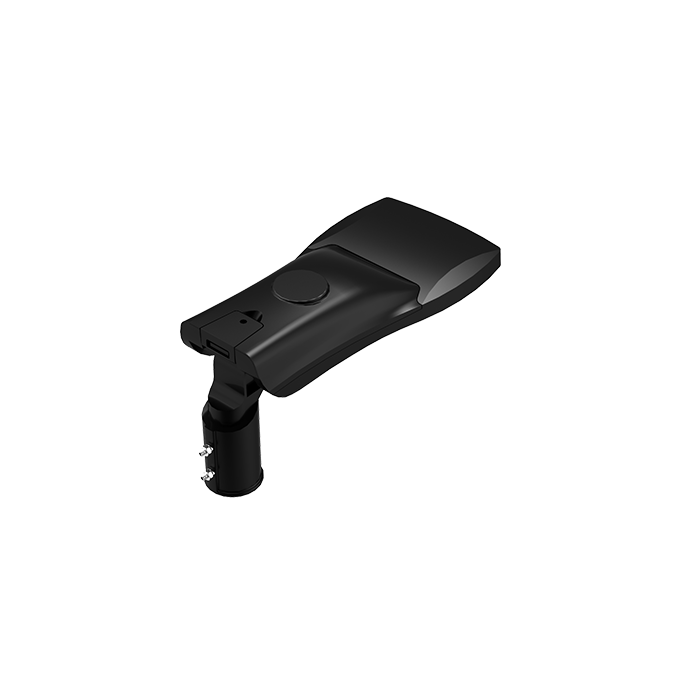

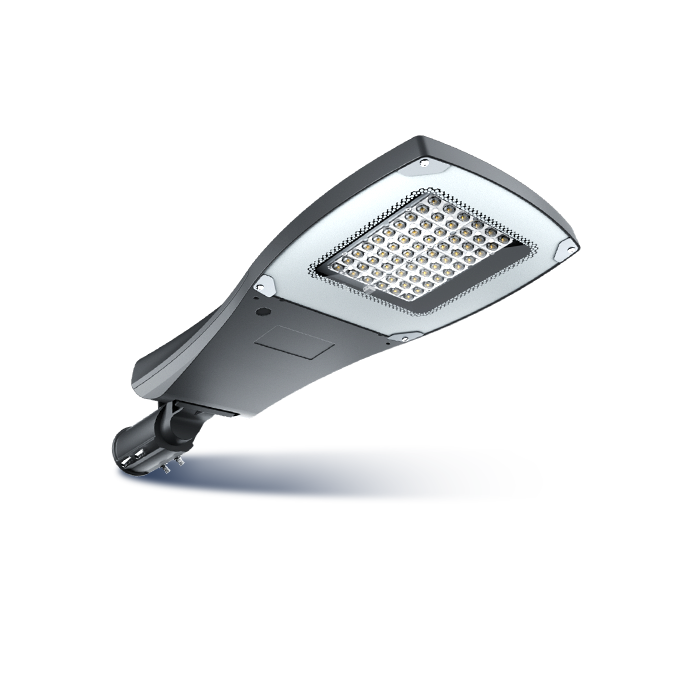

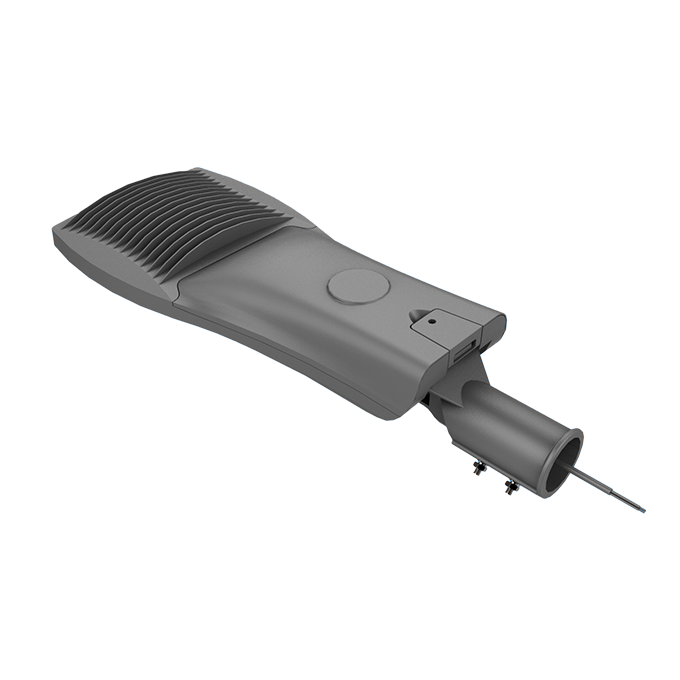

Beluga
Features
Power range: 15W-330W. Max. Output: 54,450 Lm
Luminaire efficiency: up to 165 lm/W. CCT: 1800K-6500K
Materials: Tempered Glass protection, PMMA lens, Anti-Corrosion Die-cast Aluminum Housing
Installation:Side entry or Post top with ±20° adjustable angle, Φ42/60/76mm spigots
Tool-free for easy maintenance. Innovative detachable driver chamber solution.
Smart ready: Support Nema and Zhaga receptacle for smart control connectivity
Protection grade: IP66, up to IK09; Lifespan: >100,000 hours
Certifications & Reports: CE/CB/ENEC/ENEC+/Darksky/EPD/RoHs/IP66/IK09/D4i
Application scenarios
Highways
Arterial
Secondary
Branch roads
Major vehicle lanes
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-STB1-1 | UNI-STB1-2 | UNI-STB1-3 | UNI-STB1-4 | UNI-STB1-5 | UNI-STB1-6 | UNI-STB1-7 | UNI-STB1-8 |
UNI-STB1-9 |
| Power (W) | 45 | 60 | 90 | 120 | 90 | 150 | 200 | 200 | 300 |
| Life span (Hrs) |
100,000 | ||||||||
Electrical
| Product Model | UNI-STB1-1 | UNI-STB1-2 | UNI-STB1-3 | UNI-STB1-4 | UNI-STB1-5 | UNI-STB1-6 | UNI-STB1-7 | UNI-STB1-8 |
UNI-STB1-9 |
| Power (W) | 45 | 60 | 90 | 120 | 90 | 150 | 200 | 200 | 300 |
Optical
| Product Model | UNI-STB1-1 | UNI-STB1-2 | UNI-STB1-3 | UNI-STB1-4 | UNI-STB1-5 | UNI-STB1-6 | UNI-STB1-7 | UNI-STB1-8 |
UNI-STB1-9 |
| Power (W) | 45 | 60 | 90 | 120 | 90 | 150 | 200 | 200 | 300 |
| LED | Osram/ Lumileds |
||||||||
| CCT（K） | 3000±300K 4000±300K 5000±300K 5700±500K 6500±500K |
||||||||
| Luminaire Efficiency@4000K、Ta=25℃ (lm/W) | Option: 125, 135, 150lm/W | ||||||||
| CRI | 70 | ||||||||
Light Distribution
Type Ⅰ(UNI-691)
Type Ⅱ(UNI-540)
Type Ⅱ(UNI-618)
Type Ⅲ(UNI-712)
Dementions
| Product Model | UNI-STB1-1 | UNI-STB1-2 | UNI-STB1-3 | UNI-STB1-4 | UNI-STB1-5 | UNI-STB1-6 | UNI-STB1-7 | UNI-STB1-8 |
UNI-STB1-9 |
| Power (W) | 45 | 60 | 90 | 120 | 90 | 150 | 200 | 200 | 300 |
| Product Dimension(mm) | 573×220×131 | 664×251×132 | 664×251×132 | 740×285×132 | 740×285×132 | 760×327×136 | 760×327×136 | 920×383×131 |
920×383×131 |
| Net Weight(kg) | 3.6±0.2 | 4.7±0.2 | 5.0±0.2 | 6.2±0.2 | 5.8±0 | 7.8±0.2 | 8.5±0.2 | 11.0±0.2 | 12.5±0.2 |
| Gross Weight(kg) | 4.6±0.2 | 5.8±0.2 | 6.1±0.2 | 7.5±0.2 | 7.2±0.2 | 9.3±0.2 | 10.0±0.2 | 12.5±0.2 | 14.0±0.2 |
| NetPacking Dimension (mm) |
502×275×200 | 585×305×205 | 585×305×205 | 675×360×205 | 675×360×205 | 715×415×225 | 715×415×225 | 890×470×220 | 890×470×220 |
Product specifications are for reference only and subject to the official contract documents.
Certifications
