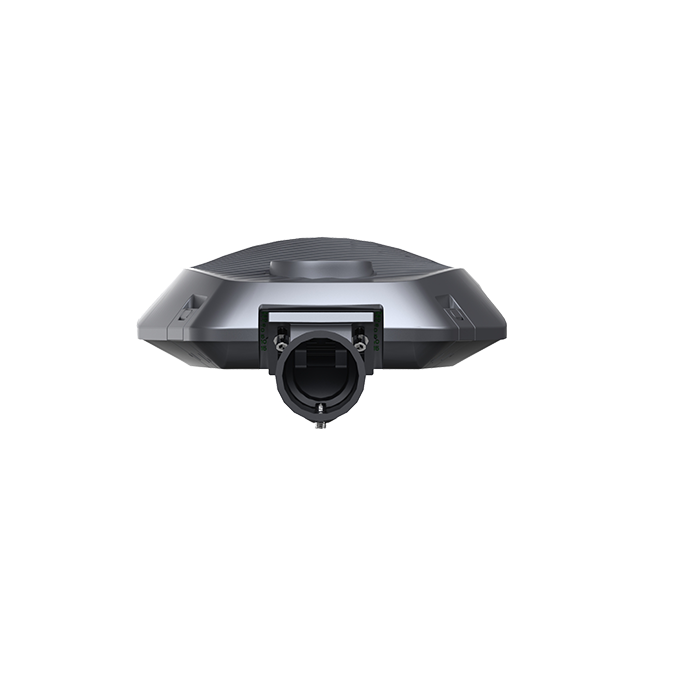

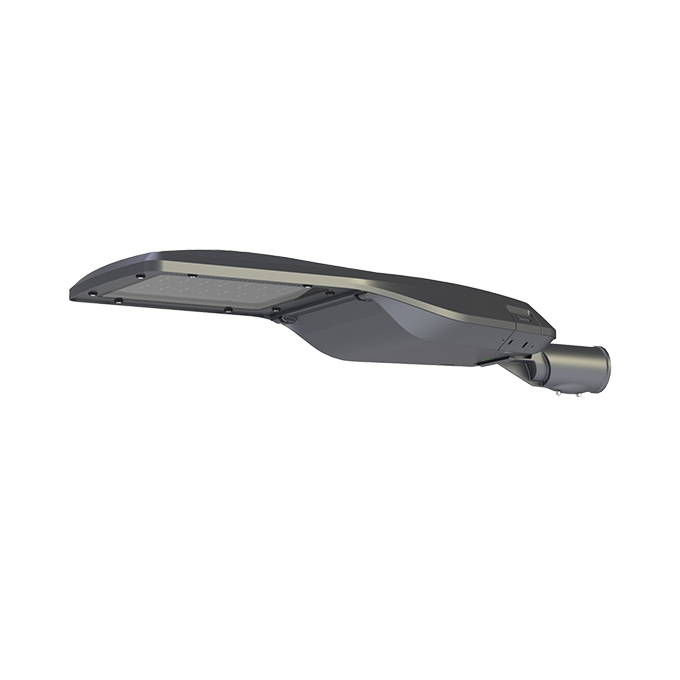

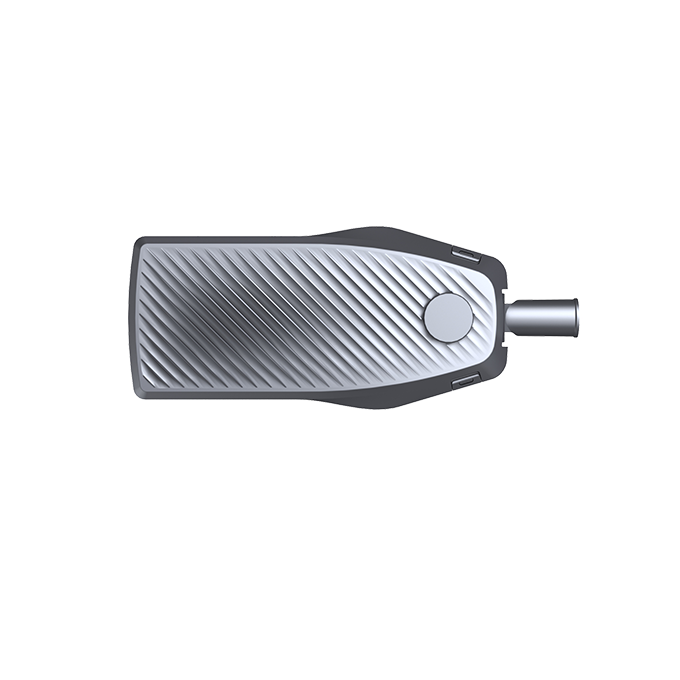

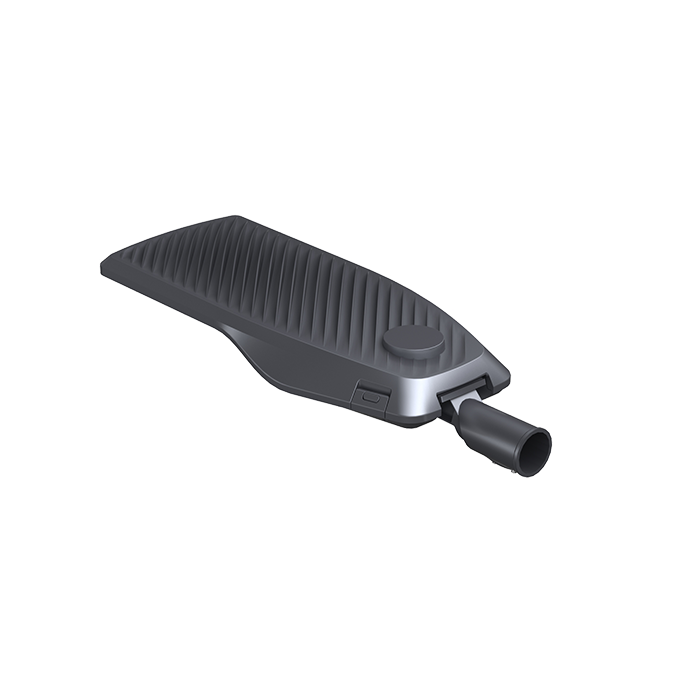

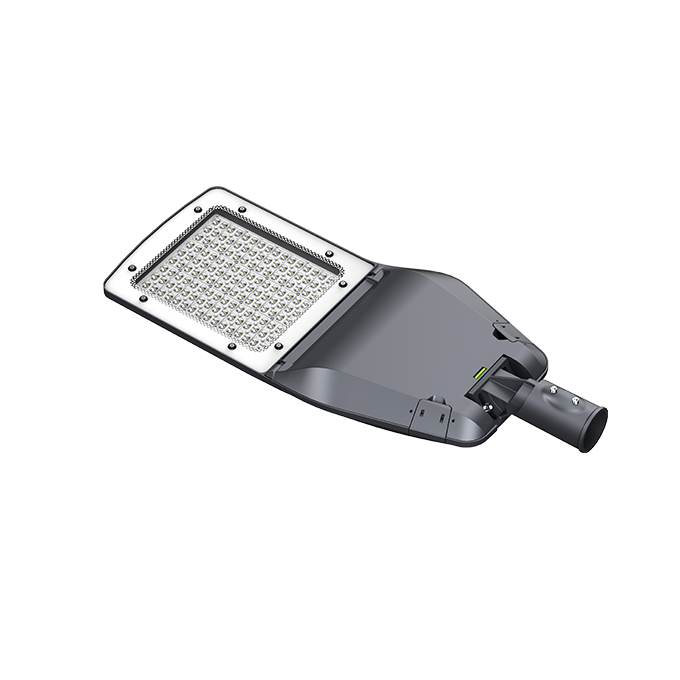

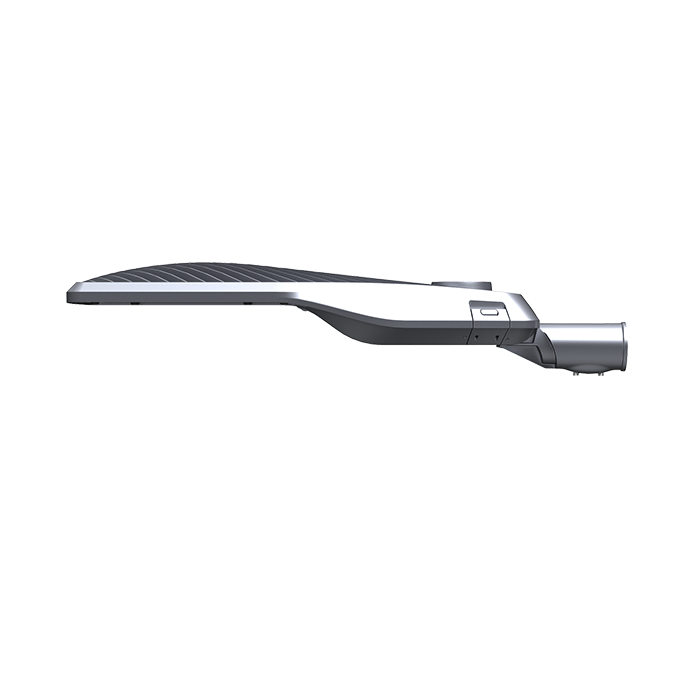

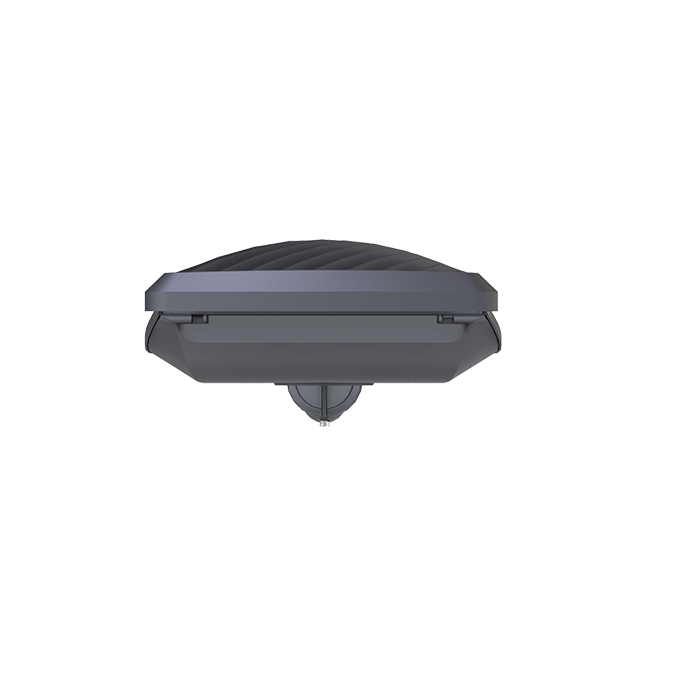

Manta
Features
Power range: 15W–240W. Max. Output: 38,400 Lm
Luminaire efficiency: up to 160 lm/W. CCT: 1800K-6500K
Materials: Tempered Glass protection, PMMA lens, Anti-Corrosion Die-cast Aluminum Housing
Installation:Side entry or Post top with ±20° adjustable angle, Φ42/60/76mm spigots
Tool-free replacement of optical compartment and electrical module
Smart ready: Support Nema and Zhaga receptacle for smart control connectivity
Protection Rate: IP66, IK08-IK10; Lifespan: >100,000 hours
Certifications: CE/CB/ENEC/ENEC+/RoHS/EPD/LM79/TM21/Salt spray/Vibration/D4i
Application scenarios
Highways
Arterial
Secondary
Branch roads
Major vehicle lanes
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | Micro UNI-STC3-1 |
Mini UNI-STC3-2/3 |
Midi UNI-STC3-4 |
Maxi UNI-STC3-5 |
| Rated Power | 20-60W | 60-90W | 60-90W | 180-240W |
| Luminous Flux | 2600-9600lm | 7800-14400lm | 15600-24000lm | 23400-38400lm |
Electrical
| Product Model | Micro UNI-STC3-1 |
Mini UNI-STC3-2/3 |
Midi UNI-STC3-4 |
Maxi UNI-STC3-5 |
| Rated Power | 20-60W | 60-90W | 60-90W | 180-240W |
| Input Voltage | 130-160lm/W | |||
Optical
| Product Model | Micro UNI-STC3-1 |
Mini UNI-STC3-2/3 |
Midi UNI-STC3-4 |
Maxi UNI-STC3-5 |
| Rated Power | 20-60W | 60-90W | 60-90W | 180-240W |
| CCT | 2200K/2700K/3000K/4000K/5000K/5700K | |||
| CRI | 70 | |||
| Materials | Die-casting aluminum +tempered glass | |||
| IP / IK | IP66/IK08 | |||
Light Distribution
Type Ⅰ(UNI-691)
Type Ⅱ(UNI-540)
Type Ⅱ(UNI-618)
Type Ⅲ(UNI-712)
Type V(UNI-685)
Dementions
| Product Model | Micro UNI-STC3-1 |
Mini UNI-STC3-2/3 |
Midi UNI-STC3-4 |
Maxi UNI-STC3-5 |
| Rated Power | 20-60W | 60-90W | 60-90W | 180-240W |
| Luminaire Dimension(mm) |
576×240×138 | 673×270×140 | 713×310×165 | 840×345×170 |
| Packing Dimension(mm) |
525×345×215 | 655×345×21 | 695×385×215 | 830×420×210 |
| Net Weight(kg) |
4.0±0.5 | 5.0/5.5±0.5 | 7.0±0.5 | 9.0/9.2±0.5 |
| Gross Weight(kg) |
5.0±0.5 | 6.5/7.0±0.5 | 9.0±0.5 | 11.0/11.2±0.5 |
Product specifications are for reference only and subject to the official contract documents.
