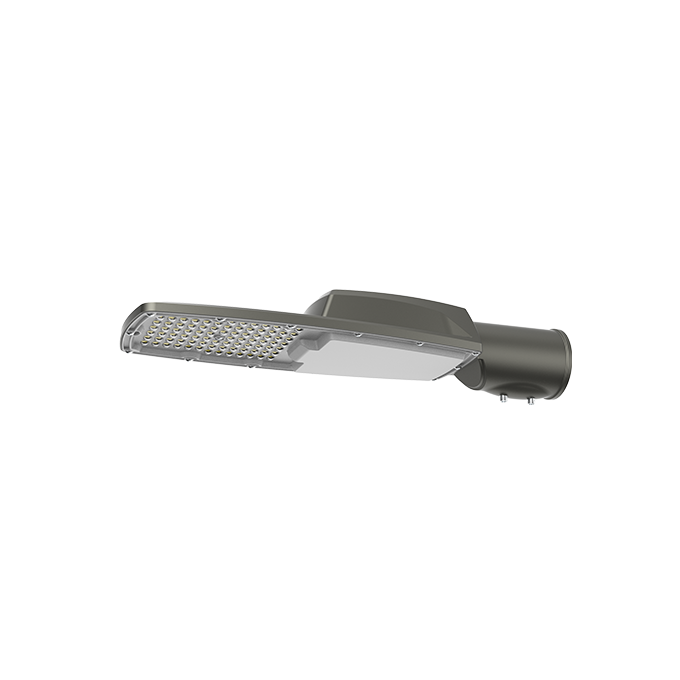

EconPlus Ⅱ
Features
Power range: 20-100W. Max. Output: 15,000 Lm
Luminaire efficiency: up to 150 lm/W. CCT: 1800K-6500K
Materials: Anti-UV PC lens, Anti-Corrosion Die-cast Aluminum Housing

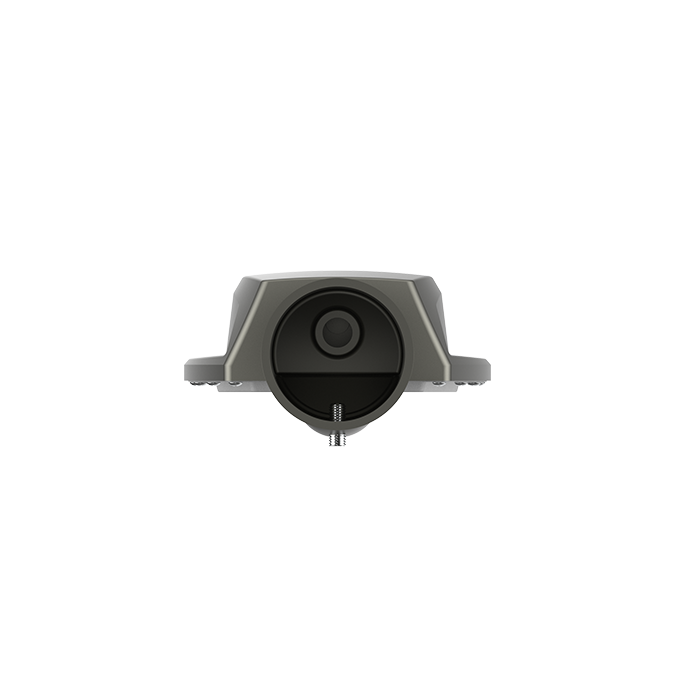

Installation: Side-entry on Φ48, Φ60mm poles
Easy to disassemble, repair and replace
Smart ready: Support Nema and Zhaga receptacle for smart control connectivity
Protection grade: IP66, up to IK10; Lifetime: >50,000 hours
Certifications & Reports: CE/CB/ENEC/RoHS/IK10
Application scenarios
Highways
Arterial
Secondary
Branch roads
Major vehicle lanes
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-STC9- 1 | UNI- STC9 -1 | UNI- STC9- 1 | UNI- STC9 -3 | UNI -STC9- 3 | UNI -STC9 -3 | |
| Power (W) | 20 | 30 | 50 | 60 | 80 | 100 | |
| Luminous Flux （lm） | 2600 | 3900 | 6500 | 7800 | 10400 | 13000 | |
| Working Temp. | - 40 ℃ ~ 50 ℃ | ||||||
| Working Humidity | 10 % ～ 90 % RH | ||||||
| Storage Temp. | - 40 ℃ ~ 60 ℃ | ||||||
| Housing Materials | Die-casting aluminum | ||||||
| IP Grade | IP66 | ||||||
| IK Grade | IK07 | ||||||
| Life Span (Hrs) |
30,000 | ||||||
Electrical
| Product Model | UNI-STC9- 1 | UNI- STC9 -1 | UNI- STC9- 1 | UNI- STC9 -3 | UNI -STC9- 3 | UNI -STC9 -3 | |
| Power (W) | 20 | 30 | 50 | 60 | 80 | 100 | |
| Power Factor | ≥0.92 | ≥0.92 | ≥0.92 | ≥0.95 | ≥0.95 | ≥0.95 | |
| Input Voltage | AC100-277V 50/60Hz | ||||||
| Driver | Inventronics/Philips/Moso/Sosen | ||||||
Optical
| Product Model | UNI-STC9- 1 | UNI- STC9 -1 | UNI- STC9- 1 | UNI- STC9 -3 | UNI -STC9- 3 | UNI -STC9 -3 | |
| Power (W) | 20 | 30 | 50 | 60 | 80 | 100 | |
| LED | Ruifeng 3030 | ||||||
| CCT（K） | 4000±300K ，5000±300K | ||||||
| Luminaire Efficiency@4000K、 Ta=25℃ (lm/W) |
Option:130 | ||||||
| CRI | 70 | ||||||
Light Distribution
Type Ⅱ(UNI-929）
Dementions
| Product Model | UNI-STC9- 1 | UNI- STC9 -1 | UNI- STC9- 1 | UNI- STC9 -3 | UNI -STC9- 3 | UNI -STC9 -3 | |
| Power (W) | 20 | 30 | 50 | 60 | 80 | 100 | |
| Product Dimension (mm) | 424X143X78 | 424X143X78 | 424X143X78 | 564x192x80 | 564x192x80 | 564x192x80 | |
| Packing Dimension (mm) | 620X475X385 （10 in 1） |
620X475X385 （10 in 1） |
620X475X385 （10 in 1） |
615X500X4758 （8 in 1） |
615X500X4758 （8 in 1） |
615X500X4758 （8 in 1） |
|
| Net Weight (kg) | 1.1 | 1.15 | 1.2 | 1.8 | 1.85 | 1.9 | |
| Gross Weight (kg) | 13.4 （10 in 1） | 13.9（10 in 1） | 12.4（10 in 1） | 16.24（8 in 1） | 16.64（8 in 1） | 17.04（8 in 1） | |
Product specifications are for reference only and subject to the official contract documents.
