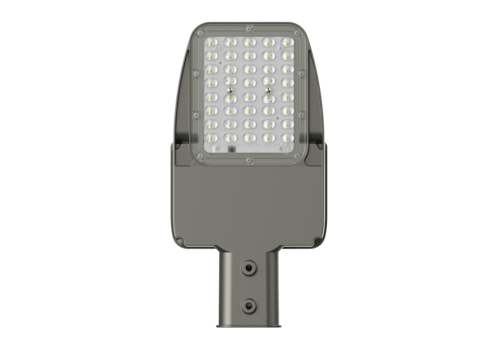

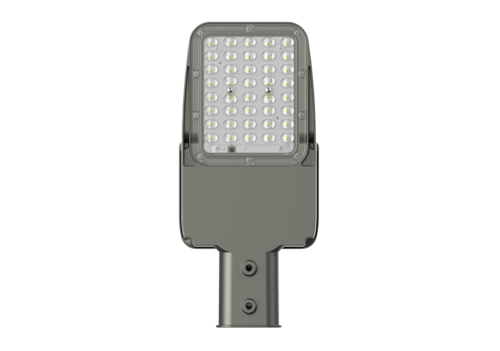

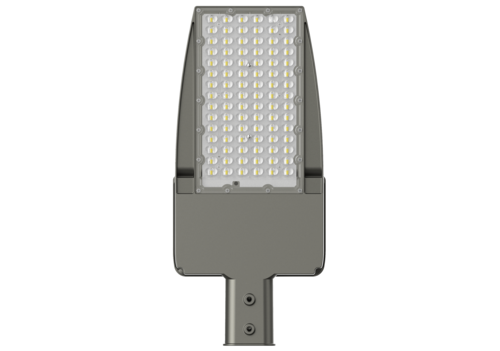

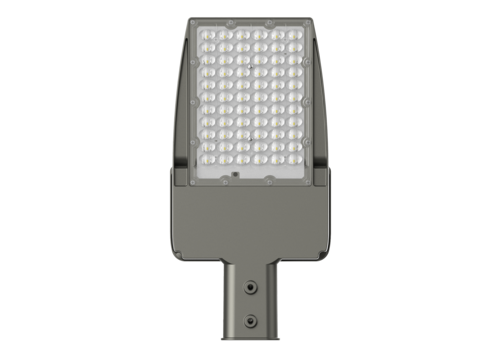

NanoLite

NanoLite series is an economical luminaire with a compact design and 160lm/W luminance efficiency, which help to save

more space and costs. With 5 product sizes ranging from 20-200W, NanoLite can be applied in versatile applications, even

in harsh environments. Compatible with NEMA interface, NanoLite is also a smart-ready product to facilitate smart cities.



· Reliable design with die-casting aluminum housing

· Die-casting aluminum housing, special oxidation and excellent thermal performance, corrosion resistance, anti-aging, and longer life span.

· With built-in 5-degree tilt steps, -5° /0° /+5° field adjustable

· Highly efficient with 160lm/W luminous efficacy

· Compact design, save more space and shipping costs

· Precise and multiple highly-yield optical lenses cater to extensive applications

Applications:

High way, city road, branch road, urban road, rural road, parking, etc. public areas.



Parameters

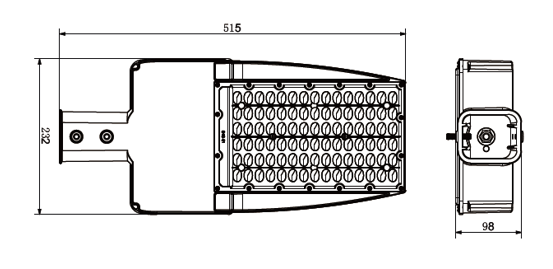

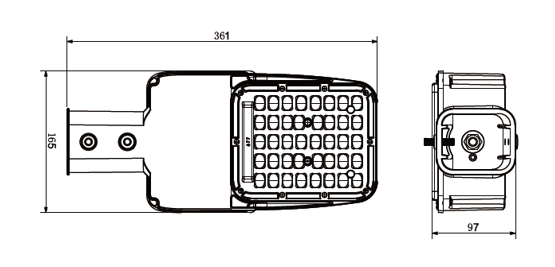

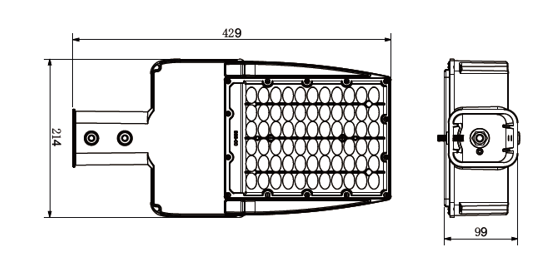

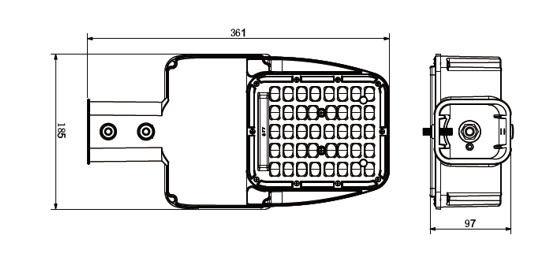

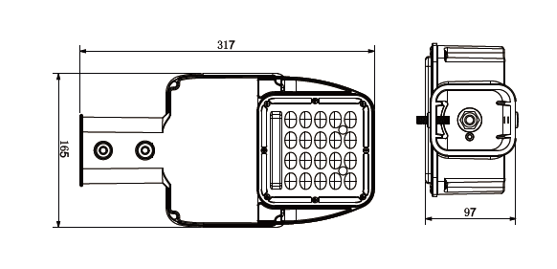

Structure

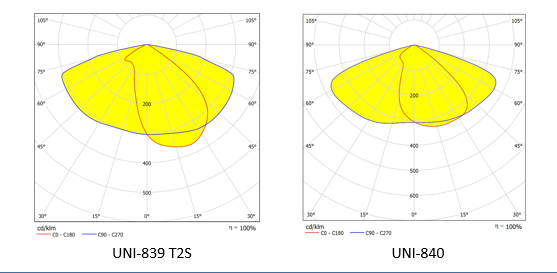

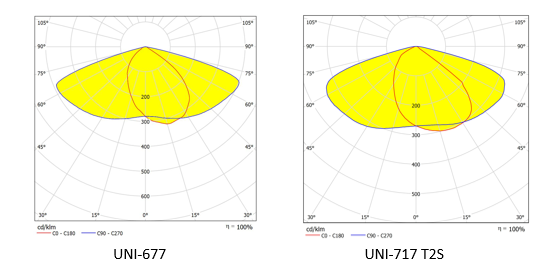

Light Distribution

Specs Sheet


PARAMETERS

Model

UNI-STC5-1

UNI-STC5-2

UNI-STC5-3

UNI-STC5-4

UNI-STC5-5

Input Voltage

AC100-277V~50/60Hz

Rated Power

20/30W

40/50/60W

80W

90/120W

150/180/200W

Luminaire Flux

2600-32000lm

LPW

130/160lm/W @4000K Ra70

Nominal CCT

3000/4000/5000/5700K

Housing Material

Die-casting Aluminum + PC optics

Ambient Temp

-40°C ~50°C

Luminaire

Dimension(mm

317×165×97

361×165×97

361×185×97

429×214×99

515×232×98

Net Weight

1.8±0.2Kg

2.0±0.2Kg

2.3±0.2Kg

2.8±0.2Kg

3.7±0.2Kg

Gross Weight

8.5±0.2/4PCS

9.4±0.2/4PCS

5.3±0.2/2PCS

6.5±0.2/2PCS

8.5±0.2/2PCS

Installation

Side entry; -5°~ 5° adjustable at 5-degree tilt steps; φ60 mounting interface

Protection Grade

IP66/IK08

Certifications

CE/CB/ROHS/ENEC
