Design concepts stemming from Shark, Unilumin SHARK series have embraced tremendous success and popularity since its launch.
| ◎ Tooling free version & Standard version |
| ◎ Support solar system, DC12V-24V |
| ◎ CLASSI & CLASSII |
| ◎ Smart control system compliance photocell, ZigBee, PLC |
| ◎ Post-top or horizontal: angle adjustable -15° to +15° |
| ◎ Automatic power off when opening the cover |
Applications: High way, city road, branch road, urban road, rural road, parking, etc. public areas.
| PARAMETERS | |||
|---|---|---|---|
| Model | Mini | Midi | Max |
| Input Voltage | 100-240V | ||
| Power Factor | ＞0.92 ＞0.95 ＞0.95 | ||
| Rated Power | 35-60W | 80-120W | 150-240W |
| Luminaire Efficiency | 125-150 lm/W | ||
| Luminous Flux | 4370-36000 lm | ||
| Color Temperature | 3000/4000/5000/5700/6500±500 K | ||
| CRI | >70 | ||

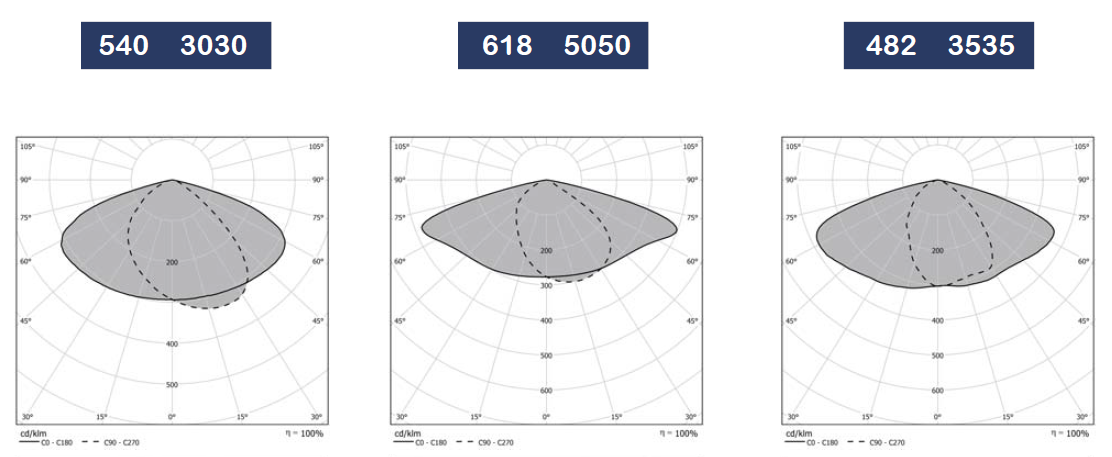

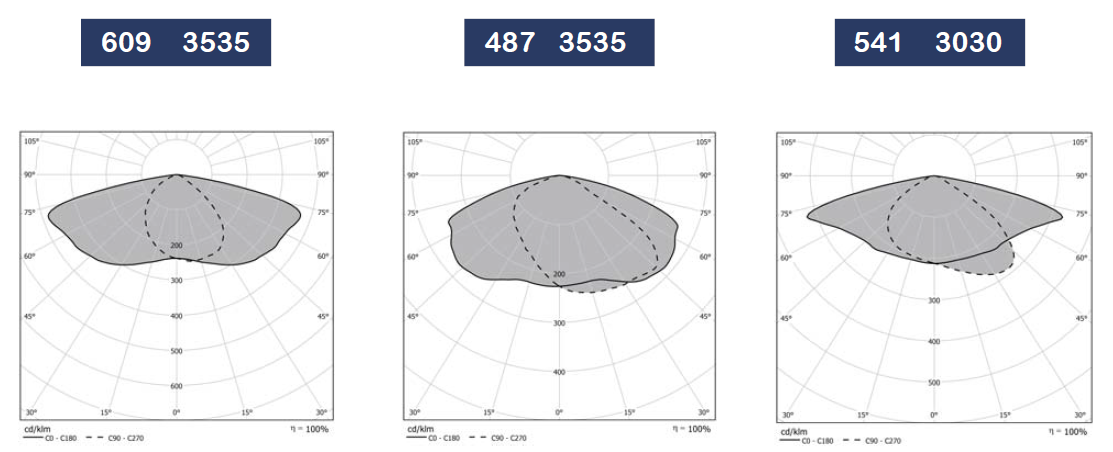

| Light Distribution | Type II/III | ||
| Working Temperature | -40°C~+50°C | ||
| Working Humidity | 10%~90% RH | ||
| Storage Temperature | -40°C~+55°C | ||
| Lifespan | >50,000 Hours | ||
| Housing Material | Die-casting aluminum + ultra-transparent tempered glass | ||

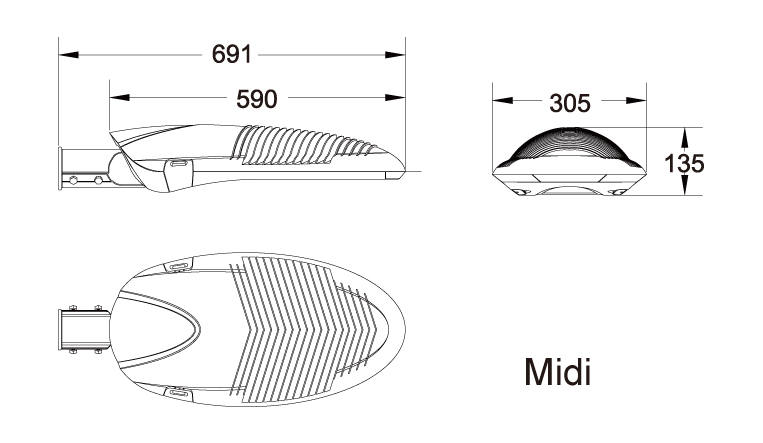

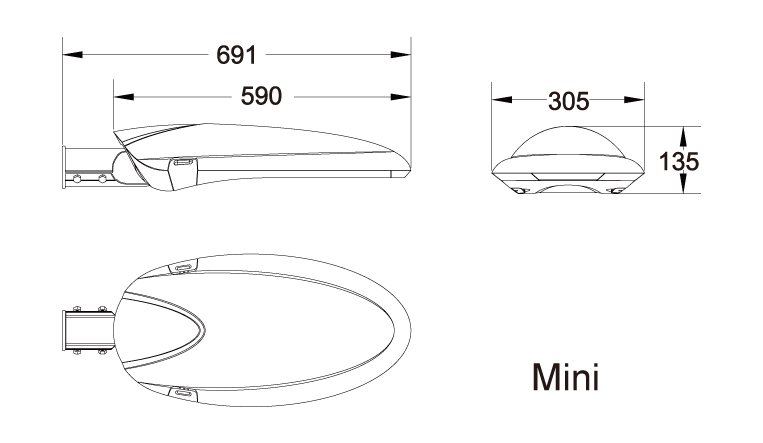

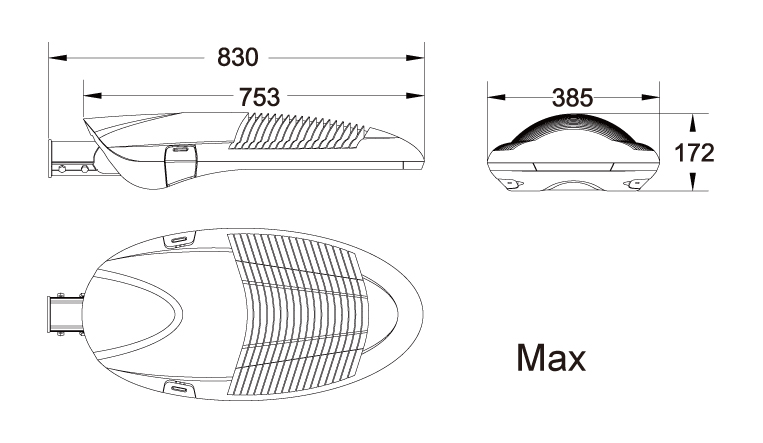

| Product Dimension | 691*305*135 | 691*305*135 | 830*385*172 |
| IP Rating | IP66 | ||
| Certifications | TUV/CE/CB/ENEC | ||
