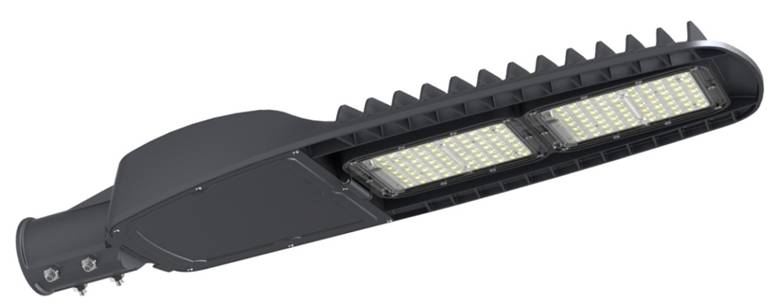

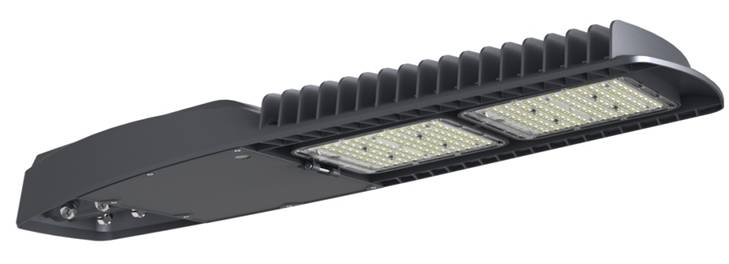

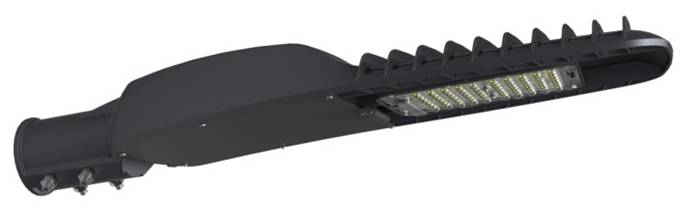

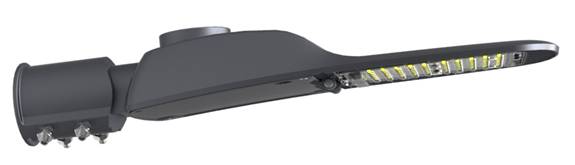

NANO series maximizes the cost performance by introducing Micro, Mini, Mini Plus, Midi, and Maxi covering 15 to 300W.
| ◎ Standard version & tool-free version optional |
| ◎ Support solar system, DC12V/24V |
| ◎ CLASS I & CLASS II |
| ◎ Smart control system compliance photocell, ZigBee, PLC |
| ◎ Side entry standard with post top slip fitter optional |
| ◎ PC lens and optic lens with tempered glass optional |
Applications: High way, city road, branch road, urban road, rural road, parking, etc. public areas.
| PARAMETERS | |||||
|---|---|---|---|---|---|
| Model | Micro | Mini | Mini Plus | Midi | Max |
| Input Voltage | 100-277V | ||||
| Power Factor | >0.95 | ||||
| Rated Power | 15-40W | 50-60W | 70-100W | 120-150W | 180-300W |
| Luminaire Efficiency | 130-150 lm/W | ||||
| Luminous Flux | 1800-45000 lm | ||||
| Color Temperature | 3000/4000/5000/±300 K | ||||
| CRI | >70 | ||||

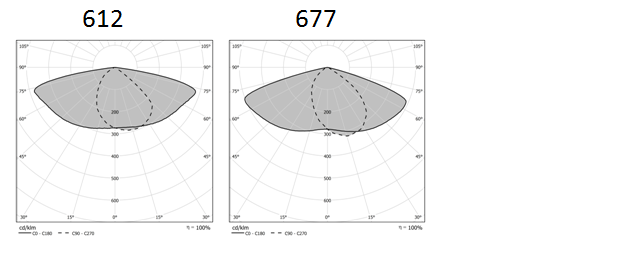

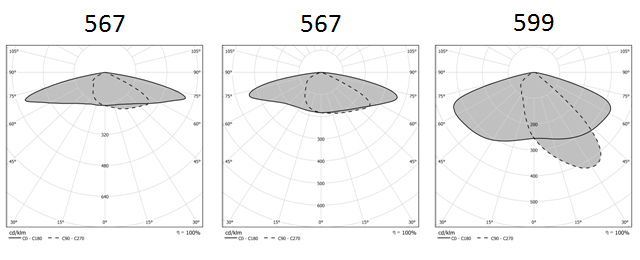

| Light Distribution | Type II/III | ||||
| Working Temperature | -40°C~+50°C | ||||
| Working Humidity | 10%~90% RH | ||||
| Storage Temperature | -40°C~+55°C | ||||
| Lifespan | >50,000 Hours | ||||
| Housing Material | Die-casting aluminum | ||||

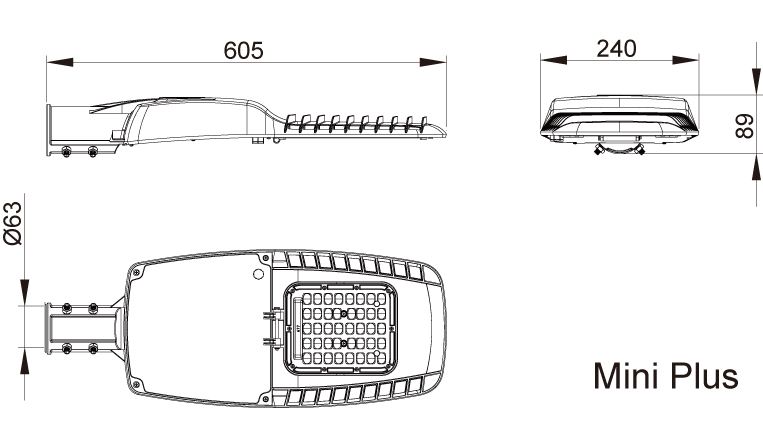

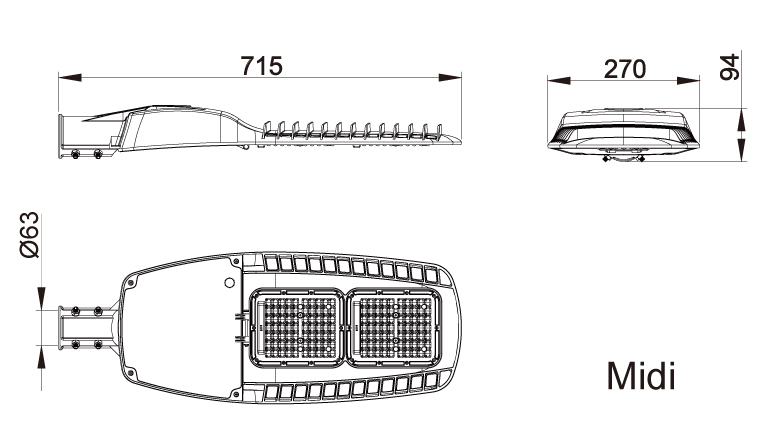

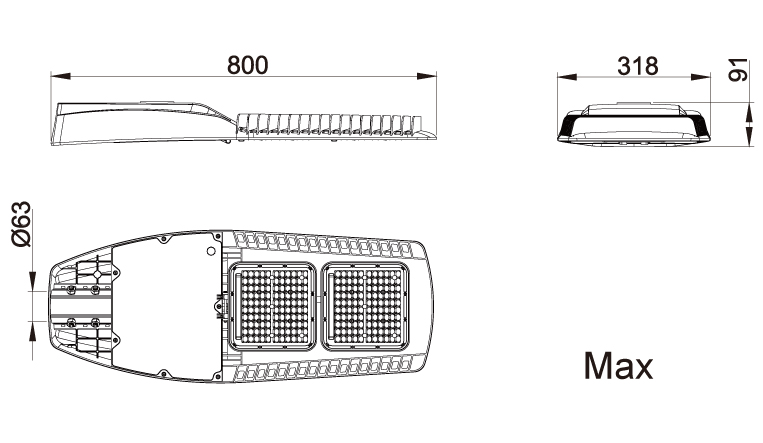

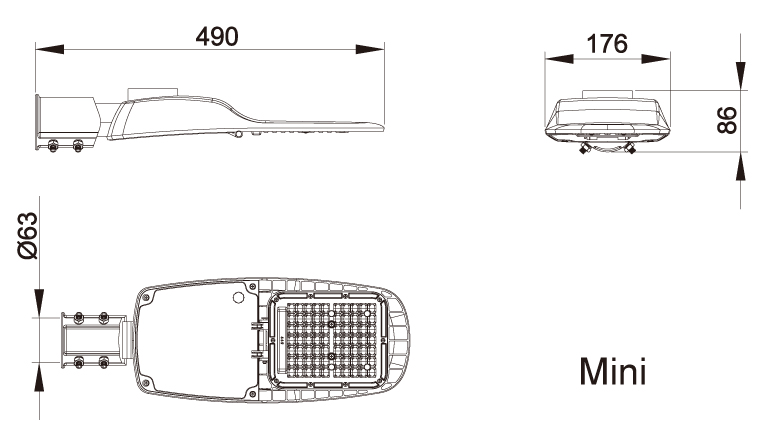

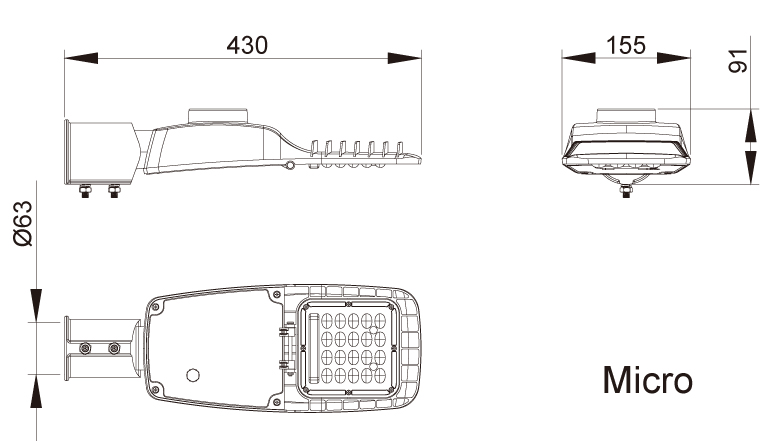

| Product Dimension(mm） | 430*155*91 | 490*176*86 | 605*240*89 | 715*270*94 | 800*318*91 |
| IP Rating | IP66 | ||||
| Certifications | TUV/CE/CB/ENEC | ||||
