SHARKLITE

SharkLite has cost advantage and is more versatile and flexible in applications to benefit the users worldwide.



· Micro, Mini and Midi three sizes offering 15W to 150W

· Die-casting aluminum housing, robust and durable

· Complete front glass cover type or flat glass type with driver compartment door are available

· Future-proof and smart ready with NEMA and Zhaga interface alternatives

· Standard and tool-free versions are available

· Pleasing and proven product design for a better city image

· Compatible with both post top and side entry installations

· -20° to +15° tilt steps for easy and quick on-site optical compartment adjustment

· Mounting interface Φ42mm, Φ60mm and Φ76mm optional

· Bubble level for easier installation

· Precise and multiple highly-yield optical lens cater to extensive applications





Applications:

High way, city road, branch road, urban road, rural road, parking etc. public areas.


Parameters

Structure

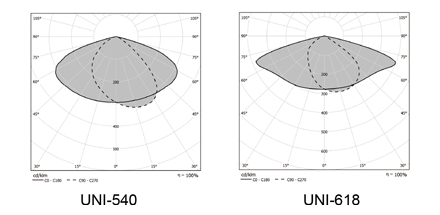

Light Distribution

Specs Sheet




PARAMETERS

Model

Micro

Mini

Midi

Input Voltage

AC100-277V

Power Factor

0.95

Rated Power

20-60W

60-100W

120-150W

Luminaire Efficiency

125-150 lm/W

Luminous Flux

2333-15000 lm

Color Temperature

3000±300 K /4000±300 K /5000±300 K

Insulation Class

Class I/Class II

Working Temperature

-40°C~+45°C

Working Humidity

10%~90% RH

Storage Temperature

-40°C ~+55°C

Housing Material

Die-casting aluminum

Luminaire

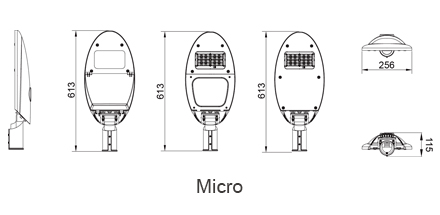

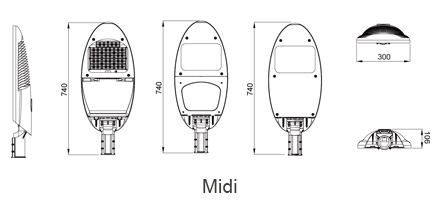

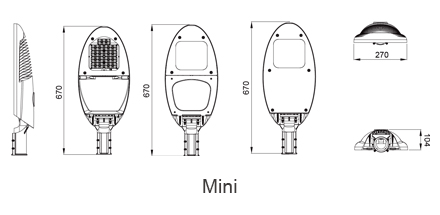

Dimension(mm

613x256x115

670x270x104

740x300x106

IP Rating

IP66

Certifications

CE/ROHS/ENEC/CB
