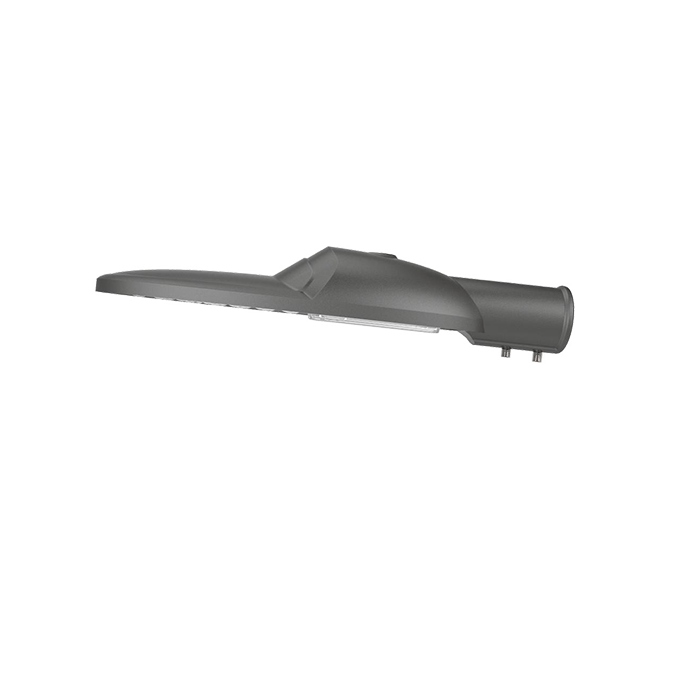

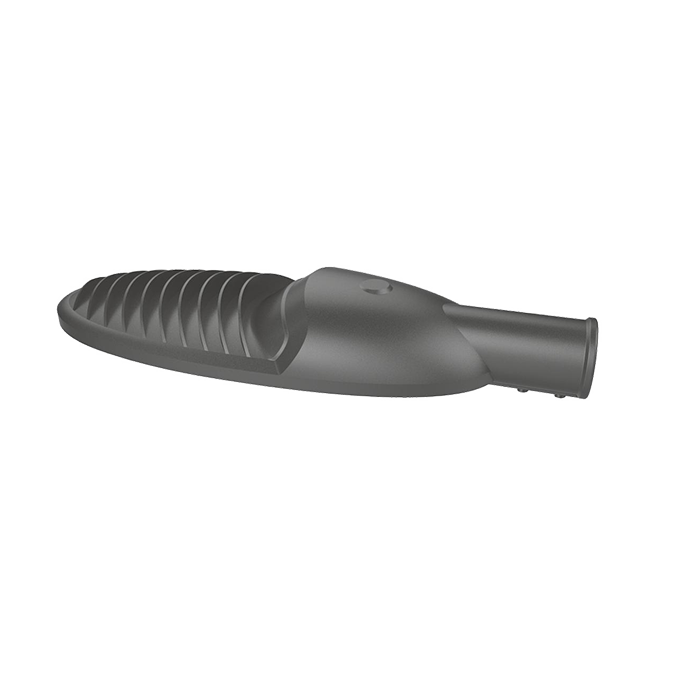

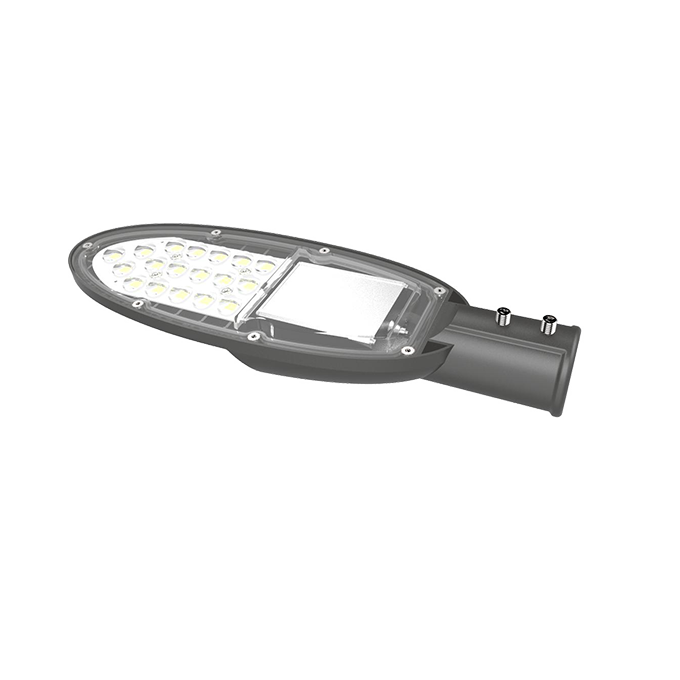

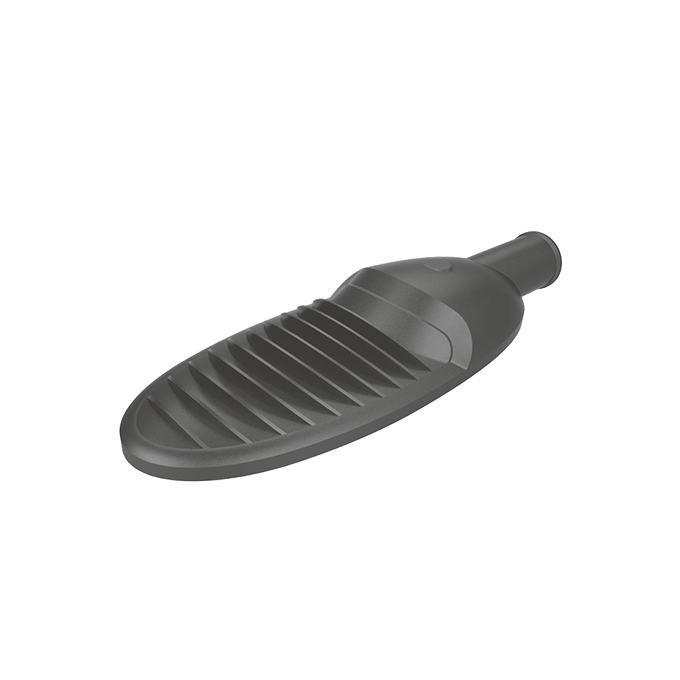

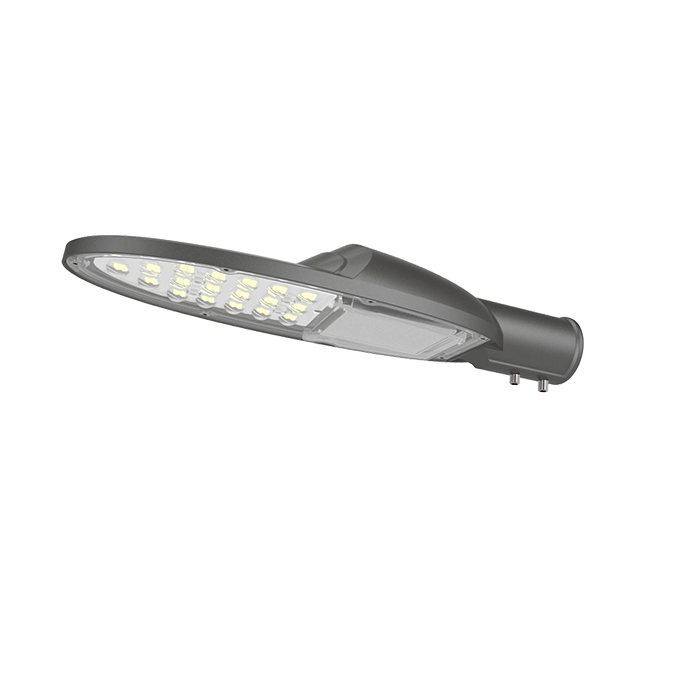

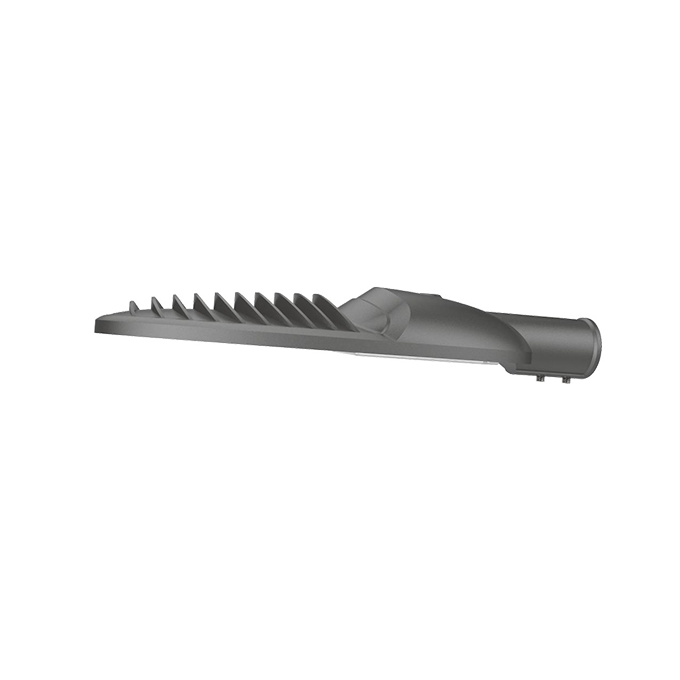

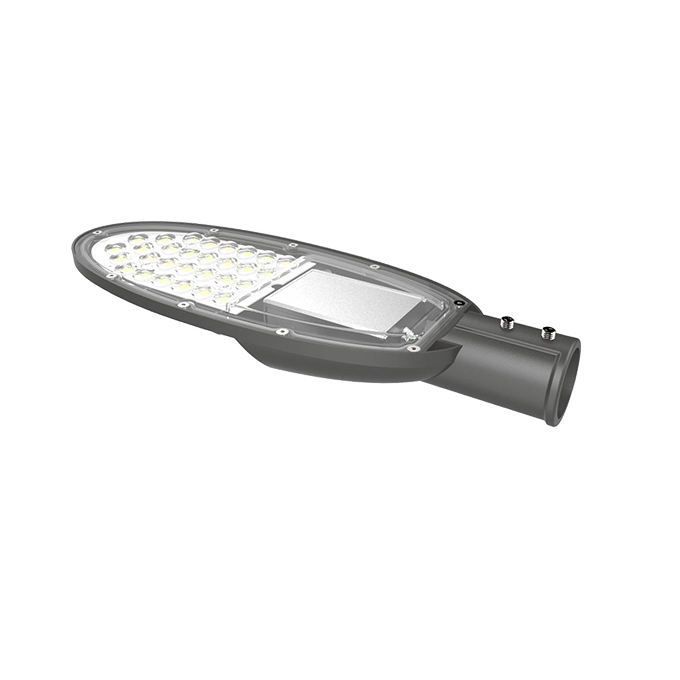

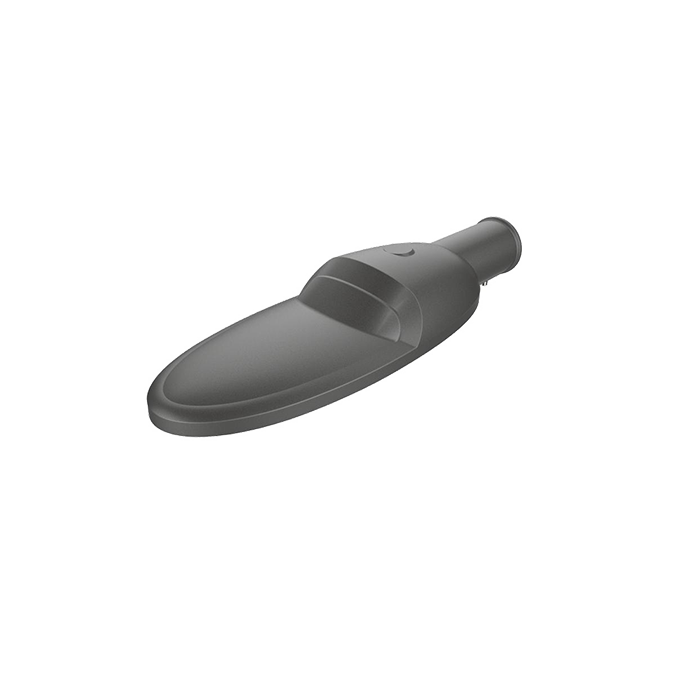

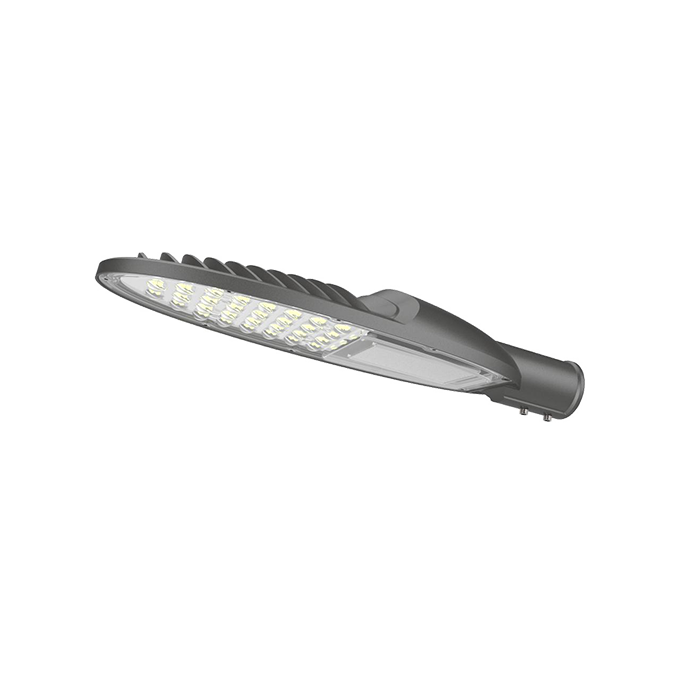

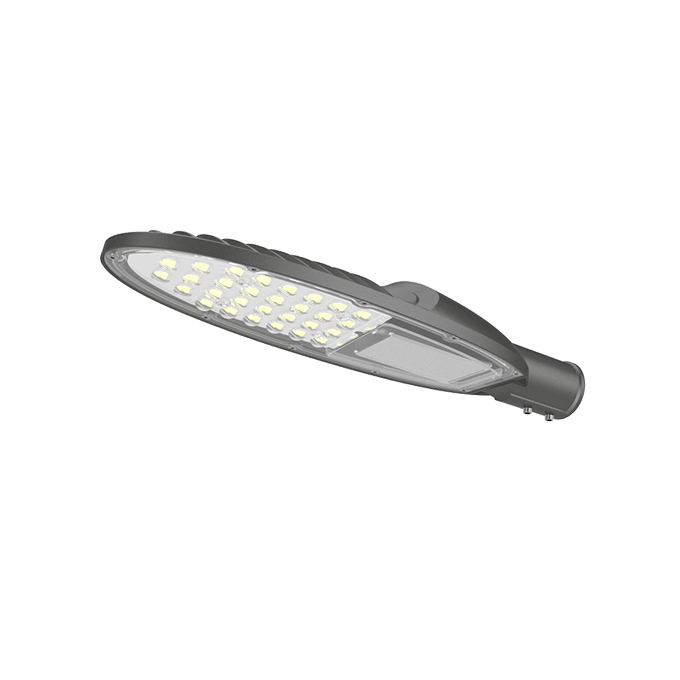

EconPlus
Features
Power range: 20-50W. Max. Output: 7,500 Lm
Luminaire efficiency: up to 150 lm/W. CCT: 1800K-6500K
Materials: Anti-UV PC cover, Anti-Corrosion Die-cast Aluminum Housing
Installation: Side entry spigot Φ42mm
Protection grade: IP66, IK08; Lifetime: >50,000 hours
Certifications & Reports: CE/CB/RoHS/IP66/IK08
Cost effective products for economical project
Application scenarios
Highways
Arterial
Secondary
Branch roads
Major vehicle lanes
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-STB5-1 | UNI-STB5-1 | UNI-STB5-2 | UNI-STB5-2 | |
| Power (W) | 20 | 30 | 40 | 50 | |
| Luminous Flux （lm） | 2500 | 3750 | 5000 | 6250 | |
| Working Temp. | - 40 ℃ ~ 50 ℃ | ||||
| Working Humidity | 10 % ～ 90 % RH | ||||
| Storage Temp. | - 40 ℃ ~ 55 ℃ | ||||
| Housing Materials | Die-casting aluminum | ||||
| IP Grade | IP66 | ||||
| IK Grade | IK08 | ||||
| Life Span (Hrs) |
50,000 | ||||
Electrical
| Product Model | UNI-STB5-1 | UNI-STB5-1 | UNI-STB5-2 | UNI-STB5-2 | |
| Power (W) | 20 | 30 | 40 | 50 | |
| Power Factor | ≥0.92 | ≥0.92 | ≥0.92 | ≥0.92 | |
| Input Voltage | AC100-277V 50/60Hz | ||||
| Driver | Inventronics/Philips/Moso/Sosen | ||||
Optical
| Product Model | UNI-STB5-1 | UNI-STB5-1 | UNI-STB5-2 | UNI-STB5-2 | |
| Power (W) | 20 | 30 | 40 | 50 | |
| LED | Osram/ Lumileds | ||||
| CCT（K） | 3000K/4000K/5000K/5700K/6500K | ||||
| Luminaire Efficiency@4000K 、Ta=25℃ (lm/W) |
125 | ||||
| CRI | 70 | ||||

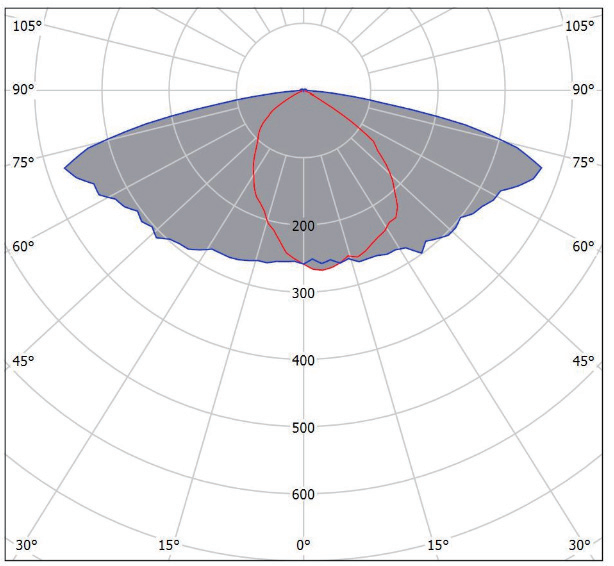

Light Distribution
Led optic 782 / 783
Dementions
| Product Model | UNI-STB5-1 | UNI-STB5-1 | UNI-STB5-2 | UNI-STB5-2 | |
| Power (W) | 20 | 30 | 40 | 50 | |
| Max Projected Area (㎡) | 0.03 | 0.03 | 0.045 | 0.045 | |
| Product Dimension (mm) | 368 × 120 ×65 | 368 × 120 ×65 | 417 × 146 ×65 | 417 × 146 ×65 | |
| Packing Dimension (mm) | 405 ×295 ×450 | 405 ×295 ×450 | 455 ×345 ×450 | 455 ×345 ×450 | |
| Net Weight (kg) | 0.9±0.2 | 0.9±0.2 | 1.2±0.2 | 1.2±0.2 | |
| Gross Weight (kg) | 10±0.2(10PCS) | 10±0.2(10PCS) | 14±0.2(10PCS) | 14±0.2(10PCS) | |
Product specifications are for reference only and subject to the official contract documents.
