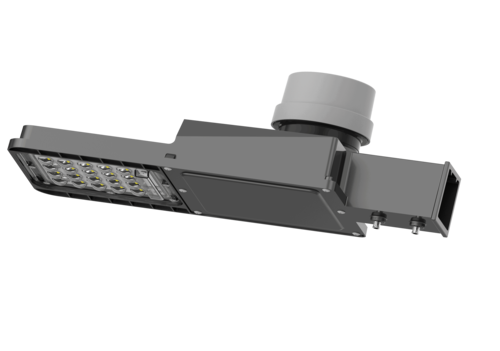

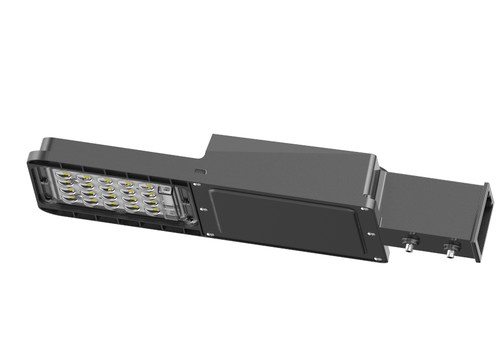

GuppyLite

GuppyLite is a cost-effective and reliable street light. With limited to 40W, it is ideal for a variety of outdoor public lighting applications for minor roads

·  Lumen packages from 2600 to 6000 lm

·  Cost-effective with high luminous efficacy up to 150lm/w

·  Simple and modern design

·  Independent driver compartment with adequate space

·  Die-casting aluminum housing, robust and durable

·  Optimized thermal performance with airflow through heat sink

·  Smart ready with NEMA interface alternative

·  Side entry, for φ42 mounting interface

Applications:

Rural streets / Residential streets / Industrial areas / Cycle & foot paths / Parks



Parameters

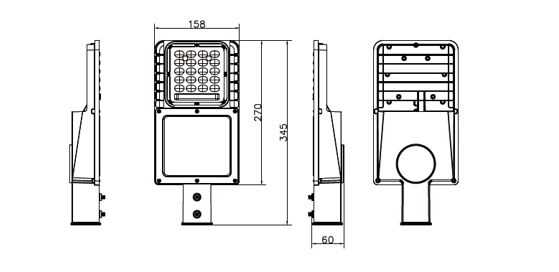

Structure

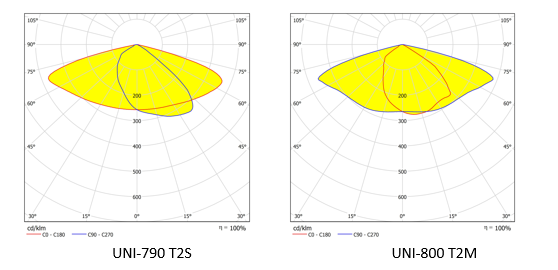

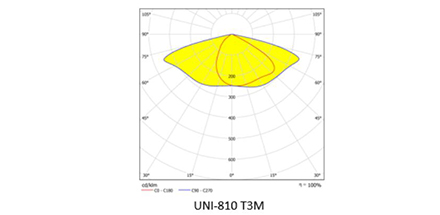

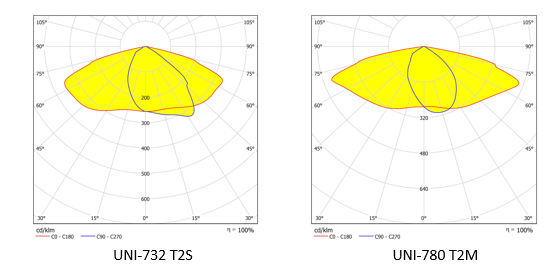

Light Distribution

Specs Sheet


PARAMETERS

Model

UNI-STC8-1

Input Voltage

AC100-277V~50/60Hz

Rated Power

20/30/40W

Power Factor

0,9

Luminaire Flux

2600-6000lm

LPW

130/150lm/W @4000K Ra70

CRI/SDCM

>705

Nominal CCT

3000/4000/5000/5700K

Housing Material

Die-casting Aluminum + PC optics

Ambient Temp

-40°C ~50°C

Luminaire

Dimension(mm

345×158×60

Package Size(mm)

780×445×235

Net Weight

1.6±0.2

Gross Weight

16.8±0.2/10 PCS

Installation

Side entry, Fixed, φ42 mounting interface

Protection Grade

IP66/IK08

Certifications

CE/CB/ROHS
