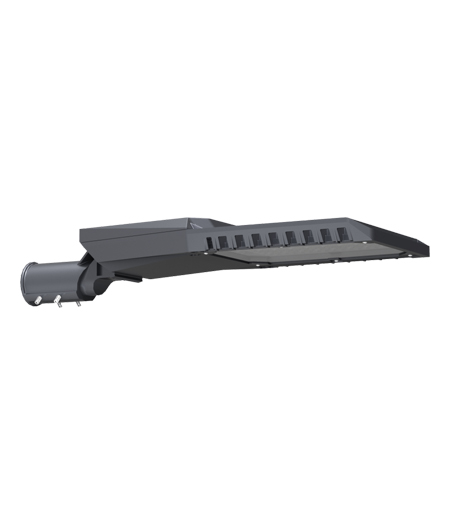

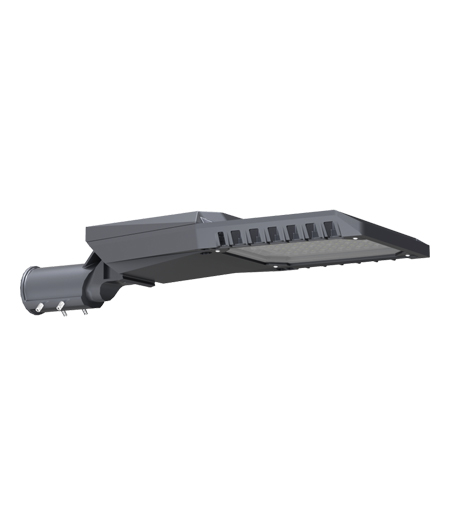

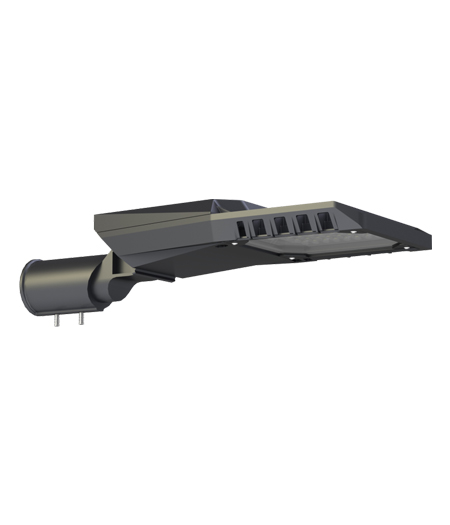

Tuna is a highly efficient LED street luminaire thanks to the excellent optical system. Designed for large-scale public lighting projects, Tuna is the ideal luminaire for municipalities. With its high efficiency and low initial cost, Tuna enables a fast payback and significant savings in terms of energy consumption. Available with different optics and lumen packages, Tuna is flexible in outdoor lighting applications.
· Five product sizes offer lumen packages from 3100 to 31000lm
· Cost effective with high luminaire efficacy up to 155lm/w enabling fast payback
· Die-casting aluminum housing, robust and durable
· Quick tool-free latch access to the driver compartment for easy maintenance
· Future-proof and smart ready with NEMA interface alternative
· Excellent thermal management design ensures better performance
· Compatible with both post top and side entry installations
· -20° to +15° tilt steps for easy and quick on-site optical compartment adjustment
· Mounting interface Φ42mm, Φ60mm, and Φ76mm optional
· Built-in bubble level for easy installation

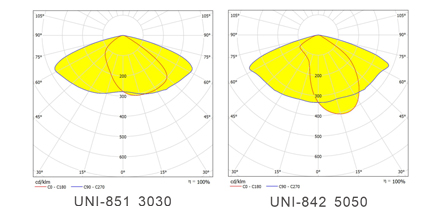

· Precise and multiple highly-yield optical lenses cater to extensive applications
Applications:
High way, city road, branch road, urban road, rural road, parking, etc. public areas.
PARAMETERS | |||||||||
Model | Micro | Mini | Mini-plus | Midi | Maxi | ||||
Input Voltage | 220-240V/100-240V/100-277V | ||||||||
Power Factor | 0.92 | 0.95 | |||||||
Rated Power | 20-40W | 50-75W | 90-120W | 150W | 180-200W | ||||
Luminaire Efficiency | 117-155 lm/W | ||||||||
Luminous Flux | 2340-31000 lm | ||||||||
Color Temperature | 3000±300 K /4000±300 K /5000±300 K /5700±500 K/6500±500 K | ||||||||
Insulation Class | Class I/Class II(optional) | ||||||||
Working Temperature | -40°C~+45°C | ||||||||
Working Humidity | 10%~90% RH | ||||||||
Storage Temperature | -40°C ~+55°C | ||||||||
Housing Material | Die-casting aluminum | ||||||||

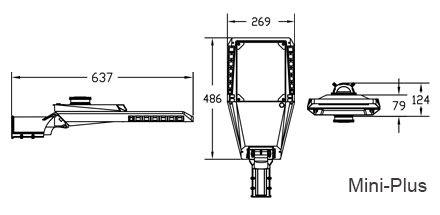

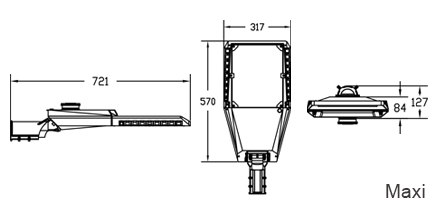

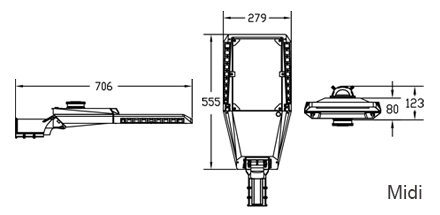

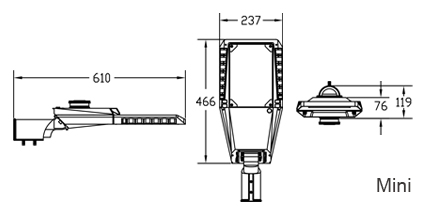

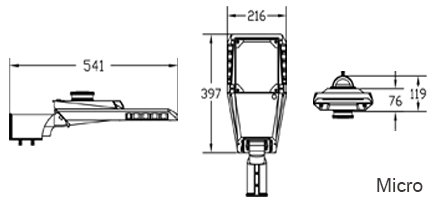

Luminaire Dimension(mm) | 541x216x119 | 610x237x119 | 637x269x124 | 706x279x123 | 721x317x127 | ||||
IP Rating | IP66/IK08 | ||||||||
Certifications | CE/ROHS/CB/ENEC |
