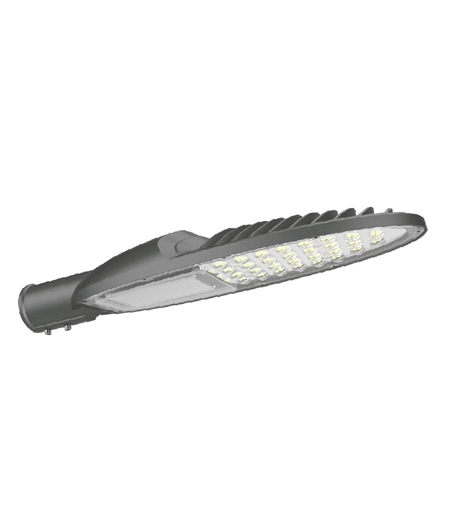

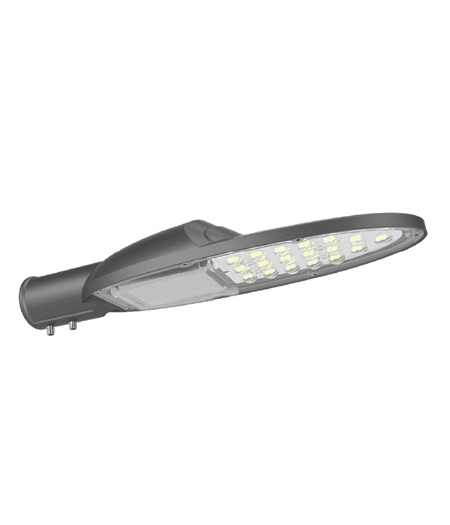

ECONPLUS

EconPlus series is a compact, competitively priced, and aesthetically designed street lighting product that produces the right amount of light and delivers lumens where necessary. Constructed with die-casting aluminum housing, EconPlus is robust, durable, and long-lasting. With 135lm/w efficacy, EconPlus is the best choice for minor roads, footpaths, cycle paths, residential areas, rural areas, parks, etc. applications.



·Surge protection up to 6KV

·High efficacy up to 135lm/w

·CRI 70/80 optional

·High ambient up to 50°C

·Optimized thermal management

·CE, CB, IP66, IK08 compliant

·Precise Type II Medium optic lens

·Universial input voltage 100-277V~50/60Hz

·Accessories available for various mounting options



Applications

Minor roads, footpaths, cycle paths, residential areas, rural areas, parks, etc.


Parameters

Structure

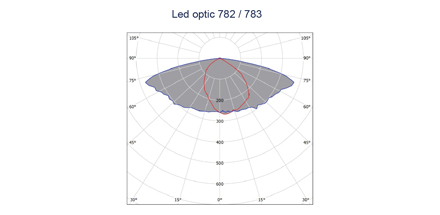

Light Distribution

Specs Sheet


PARAMETERS

Model

UNI-STB5-1-020

UNI-STB5-1-030

UNI-STB5-2-040

UNI-STB5-2-050

Input Voltage

100-277V

Power Factor

>0.95

Rated Power

20W

30W

40W

50W

Luminaire Efficiency

135 lm/W

Luminous Flux

2500-6250lm

Color Temperature

3000±300 K /4000±300 K /5000±300 K /5700±500 K/6500±500 K

CRI

70

Life Span

50,000 Hrs

Working Temperature

-40°C~+50°C

Working Humidity

10%~90% RH

Storage Temperature

-40°C ~+55°C

Housing Material

Die-casting aluminum + PC

Luminaire

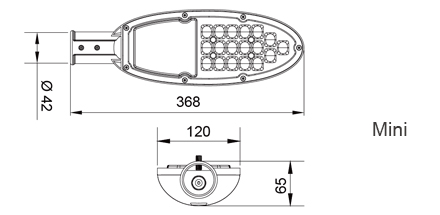

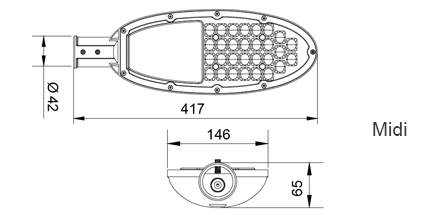

Dimension(mm

368x120x65

417x146x65

IP Rating

IP66

Certifications

CE CB ENEC RoHS
