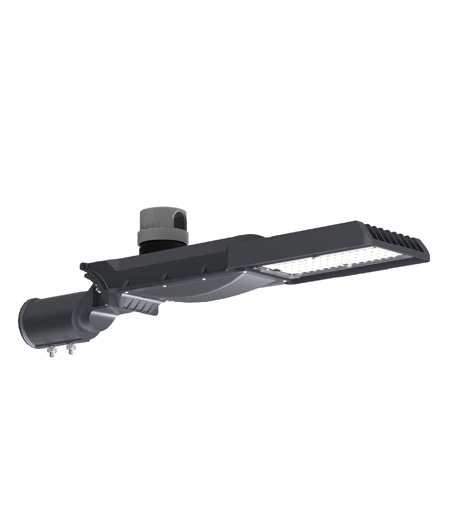

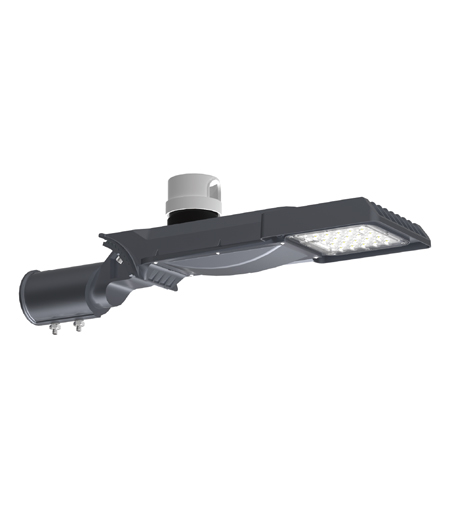

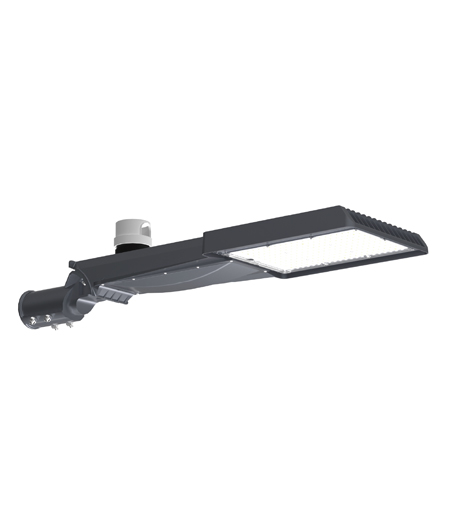

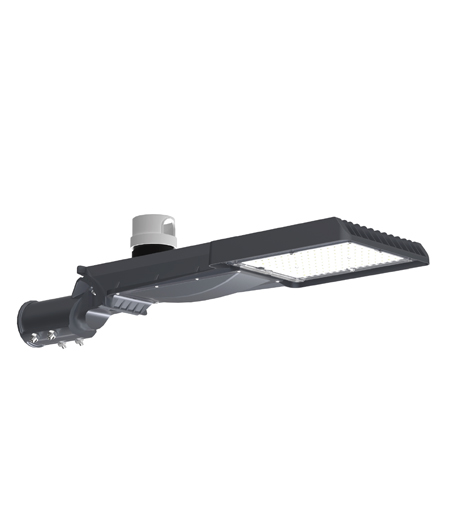

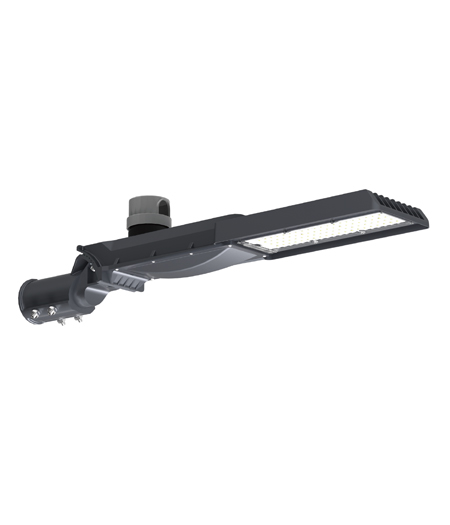

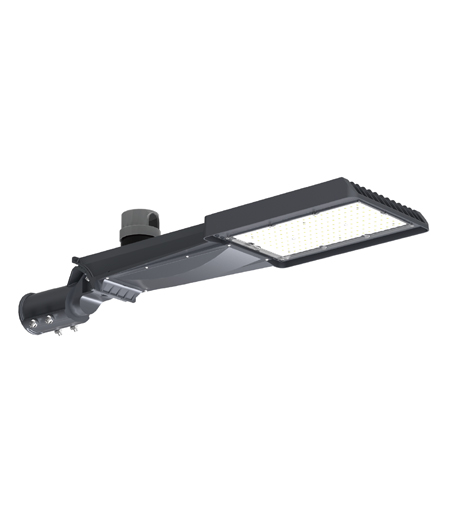

ECOFLEX

As an upgrade version ofEco series ,EcoFlex series LED street light offers 30 to 200W model options for different applications



· EcoFlex series LED street light is an upgraded version of Eco series by expanding adjustable spigot adapter to meet requirements of side entry, post top and angle adjustment

·The product weight is greatly reduced while ensuring heat dissipation performance and improving wind and vibration resistance reliability.

· Six housings ranging from 30W to 210W models are offered as options with precise light distributions

· EFD fluid heat dissipation design accelerates air folw and brings excellent heat dissipation performance.





Applications:

High way, city road, branch road, urban road, rural road, parking etc. public areas.


Parameters

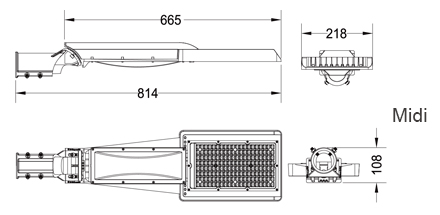

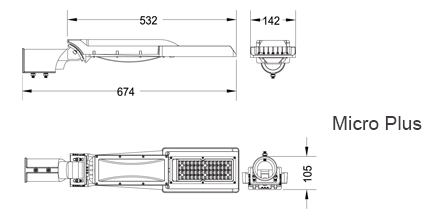

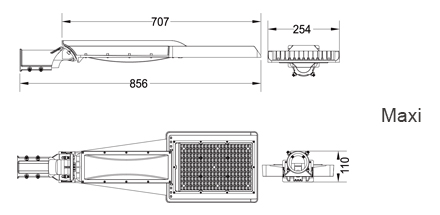

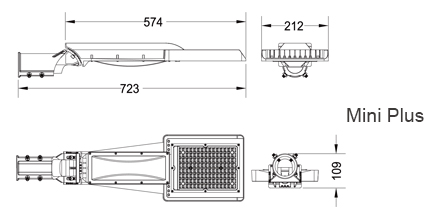

Structure

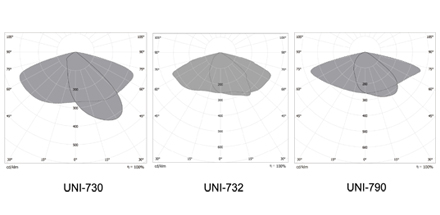

Light Distribution

Specs Sheet




PARAMETERS

Model

Micro

Micro-plus

Mini

Mini-plus

Midi

Maxi

Input Voltage

110-240V/100-277V

Power Factor

0.95

Rated Power

30-40W

50-60W

70-80W

90-120W

130-160W

180-200W

Luminaire Efficiency

120-150 lm/W

Luminous Flux

3600-30000 lm

Color Temperature

3000±300 K /4000±300 K /5000±300 K /5700±500 K/6500±500 K

Insulation Class

Class I/Class II(optional)

Working Temperature

-40°C~+45°C

Working Humidity

10%~95% RH

Storage Temperature

-40°C ~+55°C

Housing Material

Die-casting aluminum

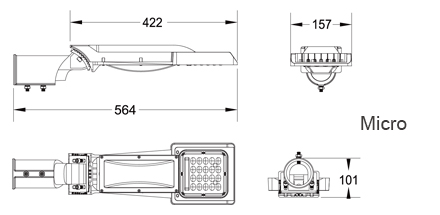

Luminaire

Dimension(mm

640x410x235

674x142x105

773x142x106

723x212x109

814x218x108

856x254x110

IP Rating

IP66/IK08

Certifications

CE/ROHS/CB/WEEE
