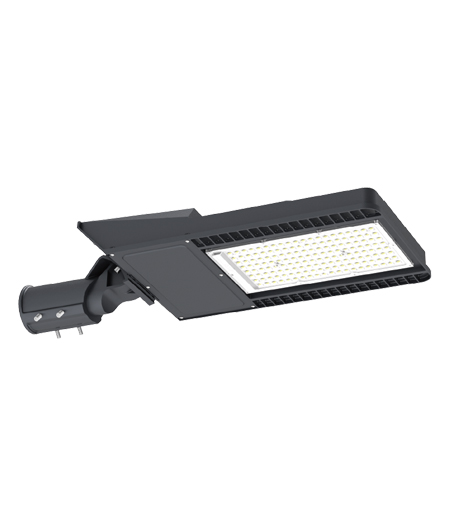

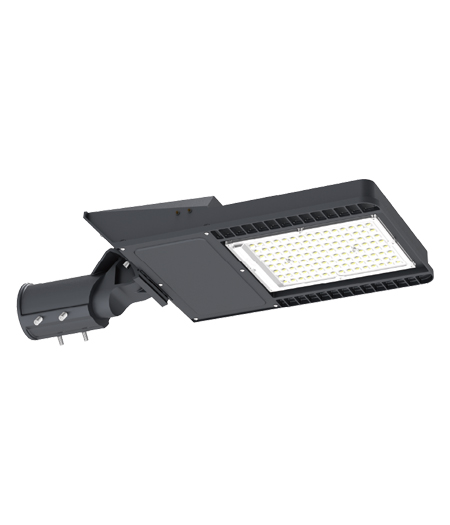

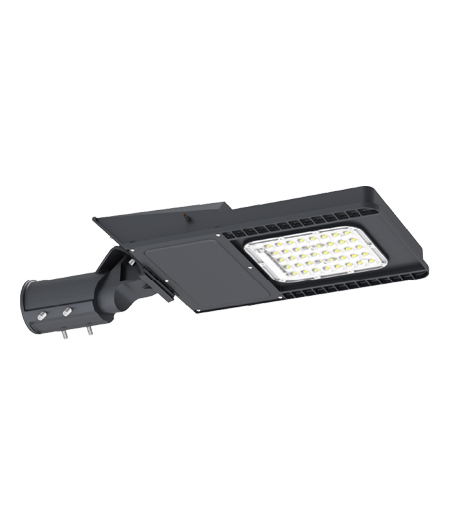

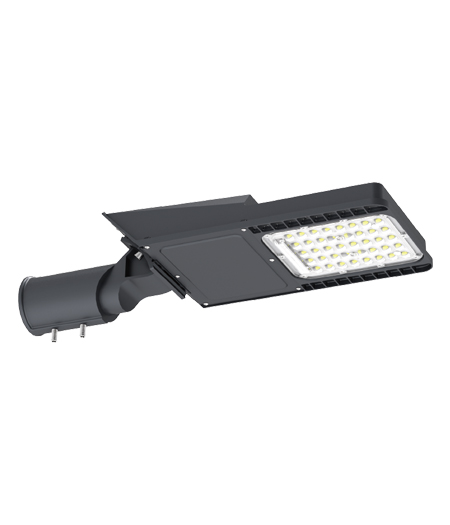

GUPPY

Guppy series street light offers cost effective LED roadway lighting solutions that ensure sufficient illumination with five sizes up to 200W. Guppy LED luminaire stands out thanks to its superior luminous efficacy delivering high performance and energy efficiency at competitive prices.


· Five sizes ranging from 30W to 200W

· Lumen packages from 4500 to 30000lm

· Die-casting aluminum housing, robust and durable

· Cost effective with high luminous efficacy up to 150lm/w

· Superior thermal performance with airflow between heat sink ribs

· Future-proof and smart ready with NEMA and Zhaga interface alternatives

· Compatible with both post top and side entry installations

· -20° to 15° tilt steps for easy and quick on-site optical compartment adjustment

· Spigot options Φ42mm, Φ60mm and Φ76mm

· Bubble level for easier installation

· Highly-yield precise optics lens cater to extensive applications

· Designed to be recyclable for circular economy



Applications: High way, city road, branch road, urban road, rural road, parking etc. public areas.


Parameters

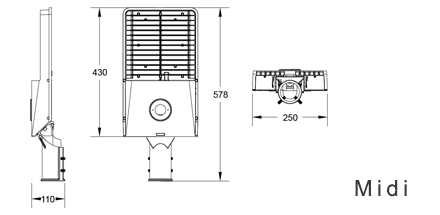

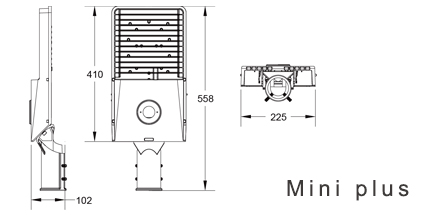

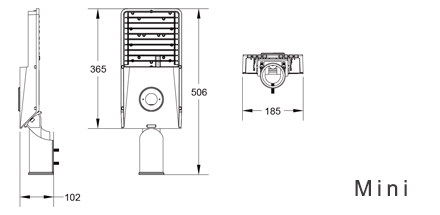

Structure

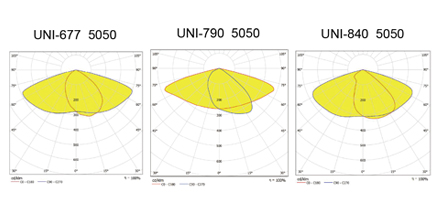

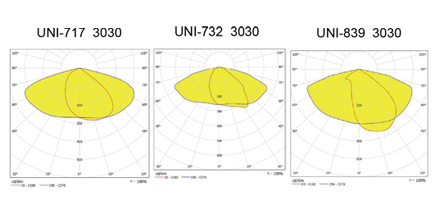

Light Distribution

Specs Sheet



PARAMETERS

Model

Micro

Mini

Mini plus

Midi

Maxi

Input Voltage

100-240V

Power Factor

>0.95

Rated Power

30-40W

50-70W

80-120W

150W

180-200W

Luminaire Efficiency

117-150 lm/W

Luminous Flux

3750-30000 lm

Color Temperature

3000±300 K /4000±300 K /5000±300 K /5700±500 K/6500±500 K

Insulation Class

Class I/Class II(optional)

Working Temperature

-40°C~+45°C

Working Humidity

10%~90% RH

Storage Temperature

-40°C ~+55°C

Housing Material

Die-casting aluminum

Luminaire

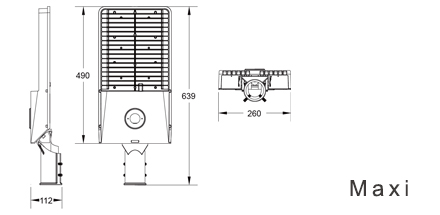

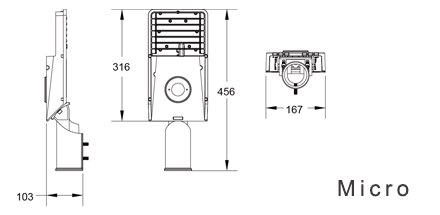

Dimension(mm

456X168x103mm

506x185x102mm

558x225x102mm

578x250x110mm

639x260x112mm

IP Rating

IP66/IK08

Certifications

CE/ROHS
