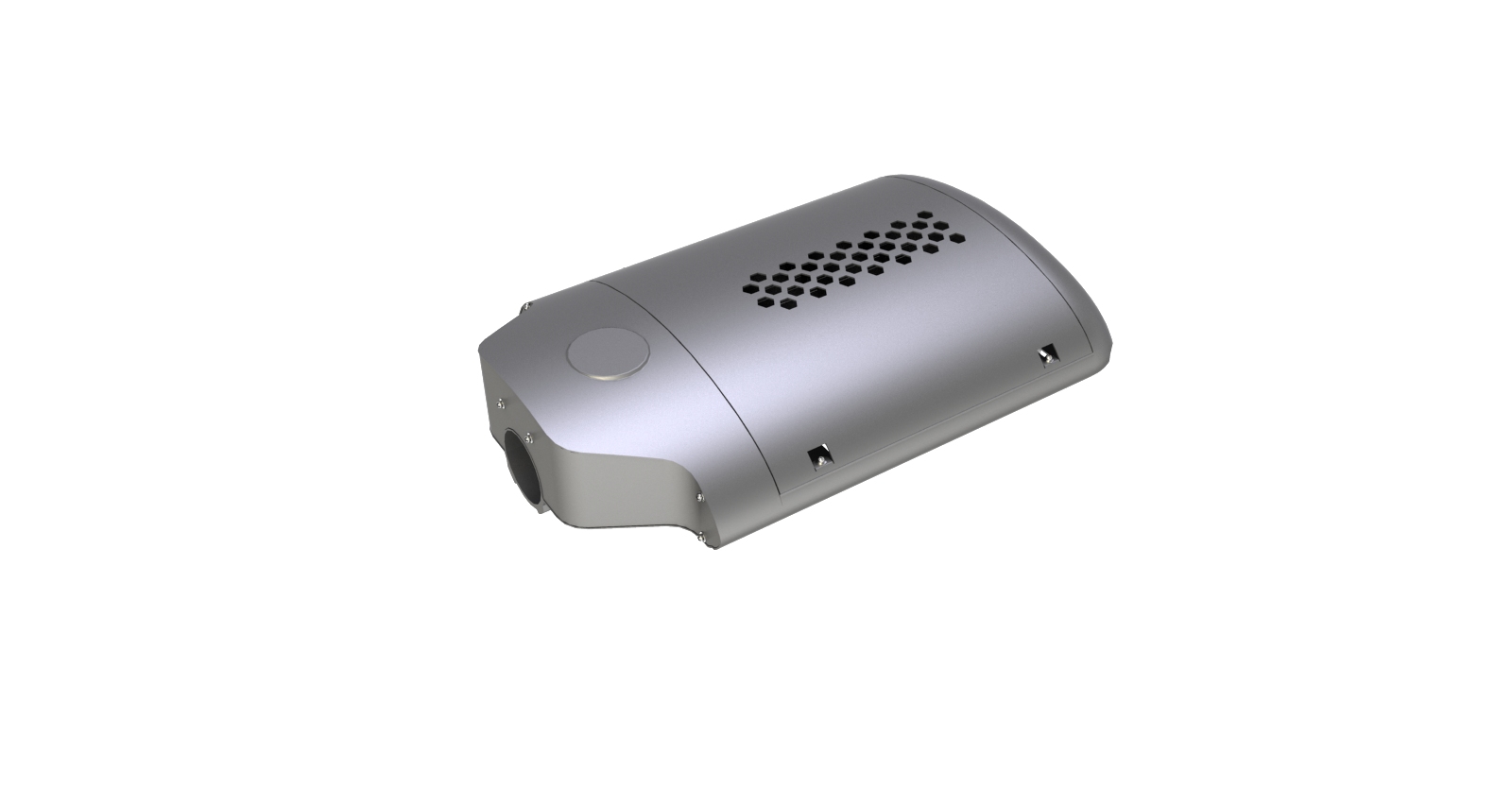

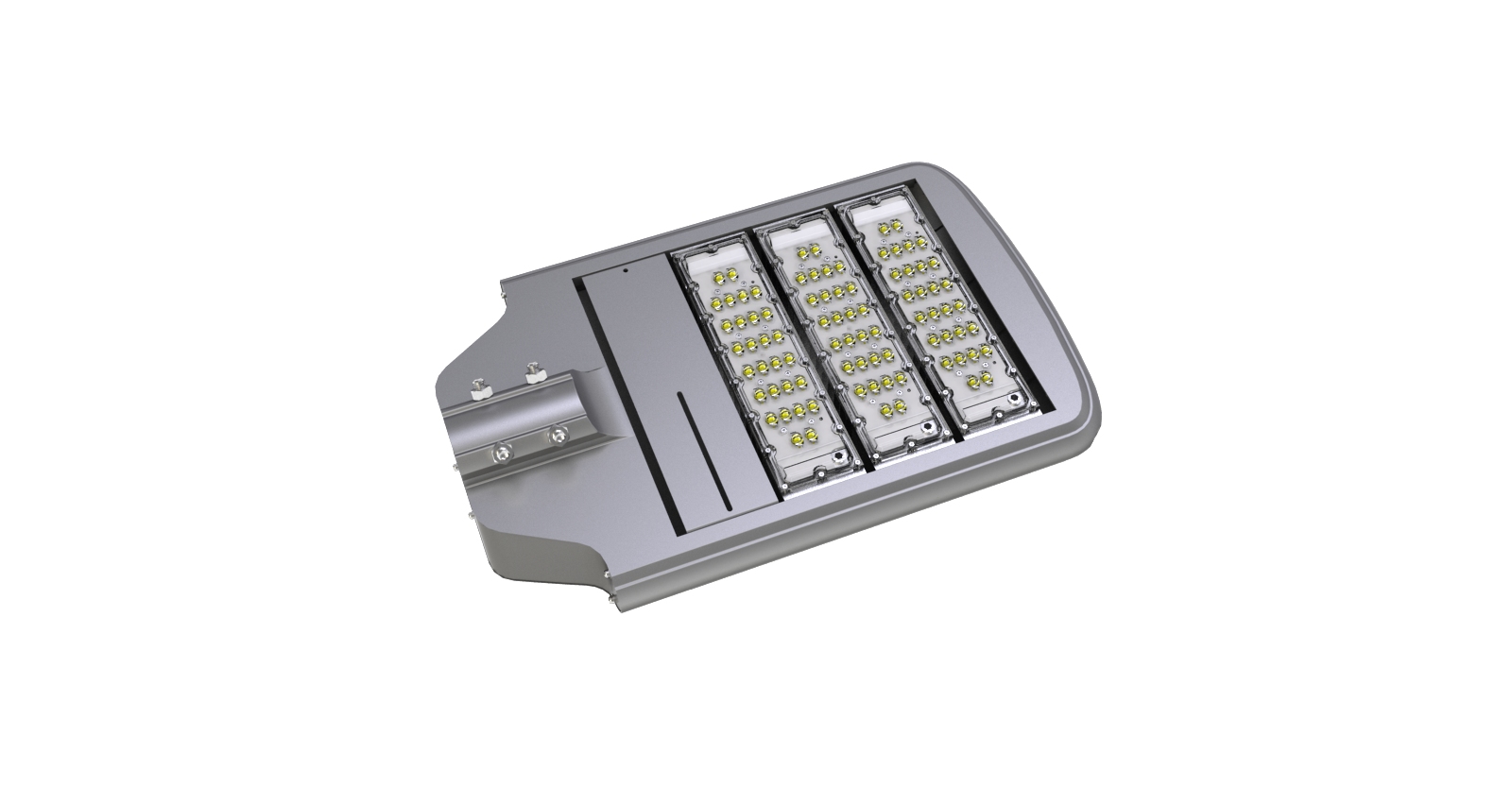

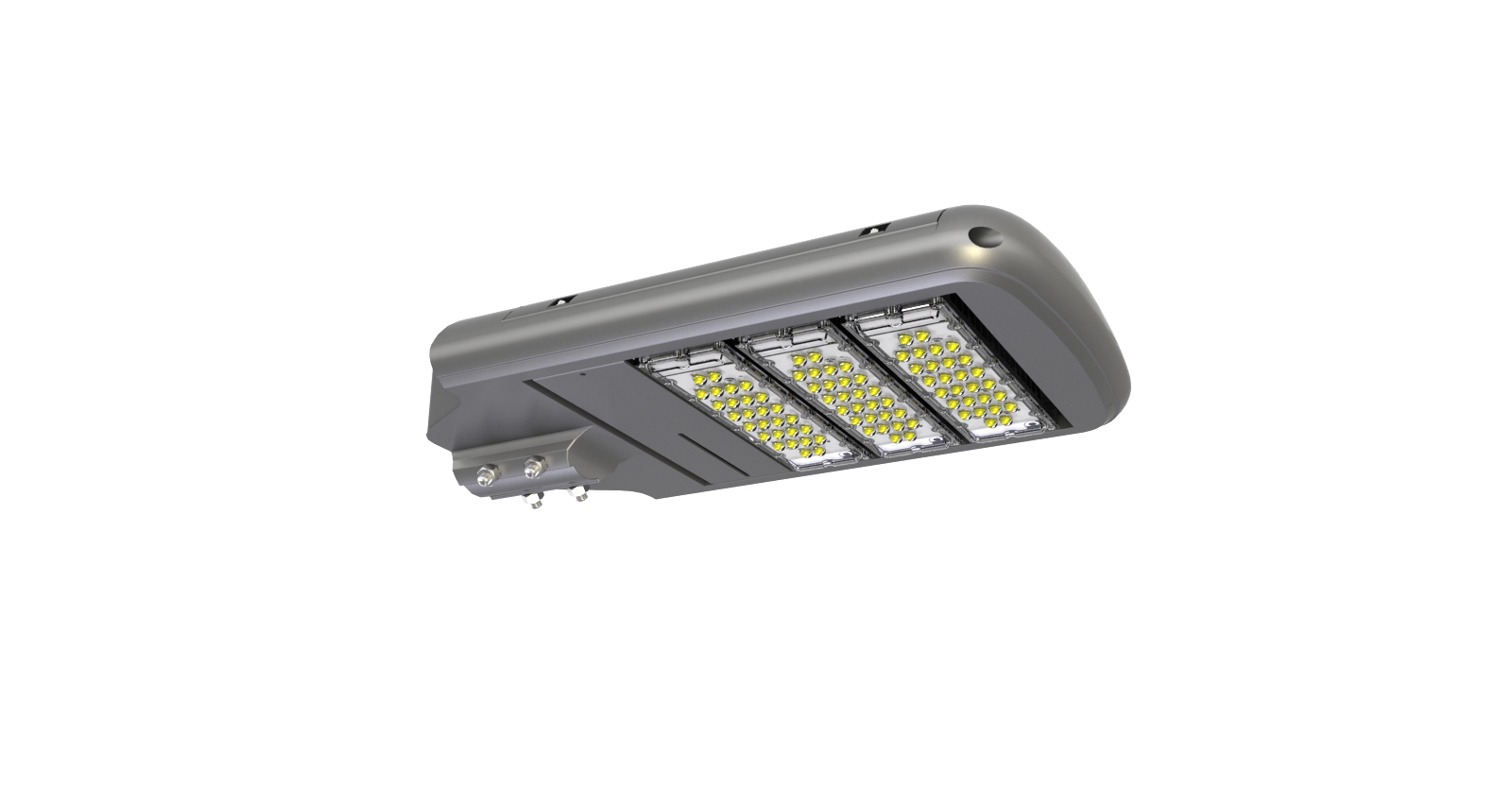

I-LUX V2 features modular and scaleable design to meet your different lighting requirements.
| ◎ Scalable modular design |
| ◎ Support solar system, DC12V-24V |
| ◎ CLASS I |
| ◎ Easy for SKD assembly |
| ◎ Quick and easy to install |
| ◎ Ranging from 60-250W model options |
Applications: High way, city road, branch road, urban road, rural road, parking etc. public areas.
| PARAMETERS | |||||
|---|---|---|---|---|---|
| Model | UNI-ST05-1K | UNI-ST05-2 | UNI-ST05-2K | UNI-ST05-3 | UNI-ST05-4 |
| Input Voltage | 100-277V | ||||
| Power Factor | >0.95 | ||||
| Rated Power | 60W | 80W | 120W | 150/200W | 250W |
| Luminaire Efficiency | 110-130 lm/W | ||||
| Luminous Flux | 6600-27500 lm | ||||
| Color Temperature | 3000/4000/5000/±300 K | ||||
| CRI | >70 | ||||

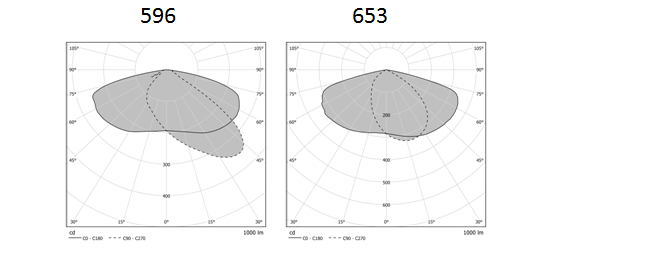

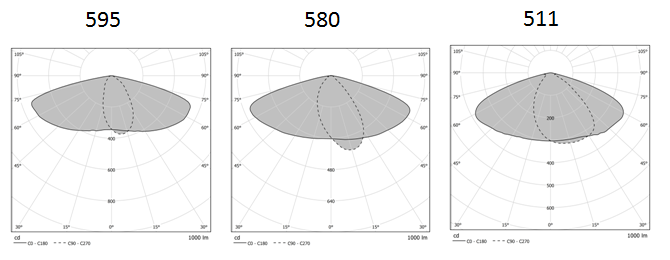

| Light Distribution | Type II/III | ||||
| Working Temperature | -40°C~+50°C | ||||
| Working Humidity | 10%~90% RH | ||||
| Storage Temperature | -40°C~+55°C | ||||
| Lifespan | >50,000 Hours | ||||
| Housing Material | Die-casting aluminum | ||||

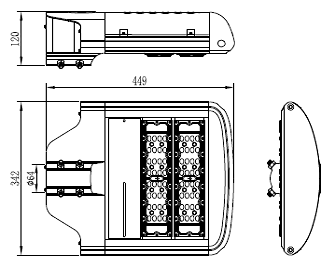

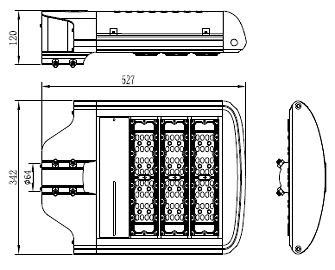

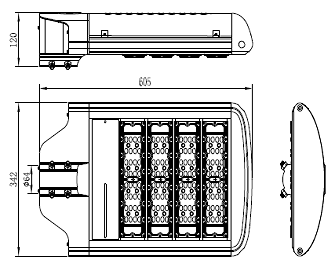

| Product Dimension(mm) | 409*342*120 | 449*342*120 | 409*342*120 | 409*342*120 | |
| IP Rating | IP66 | ||||
| Certifications | TUV/CE/CB/ENEC | ||||
