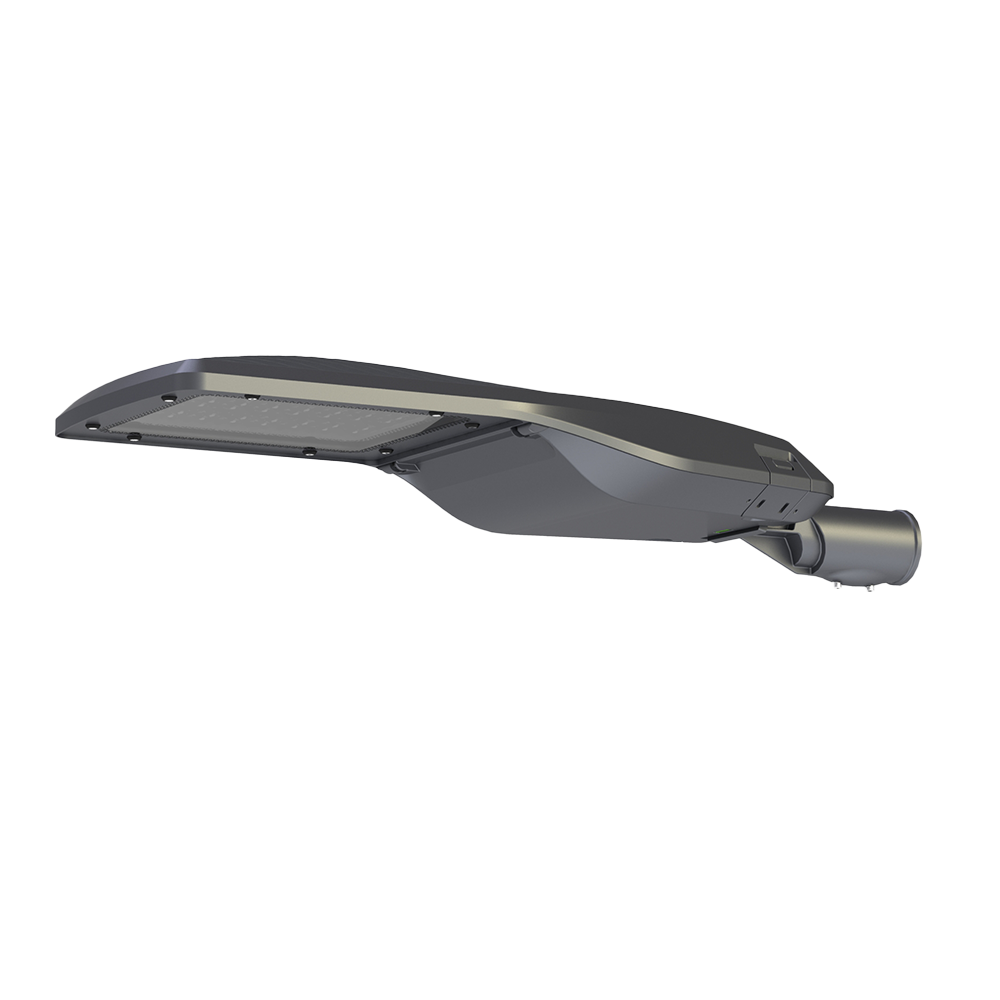

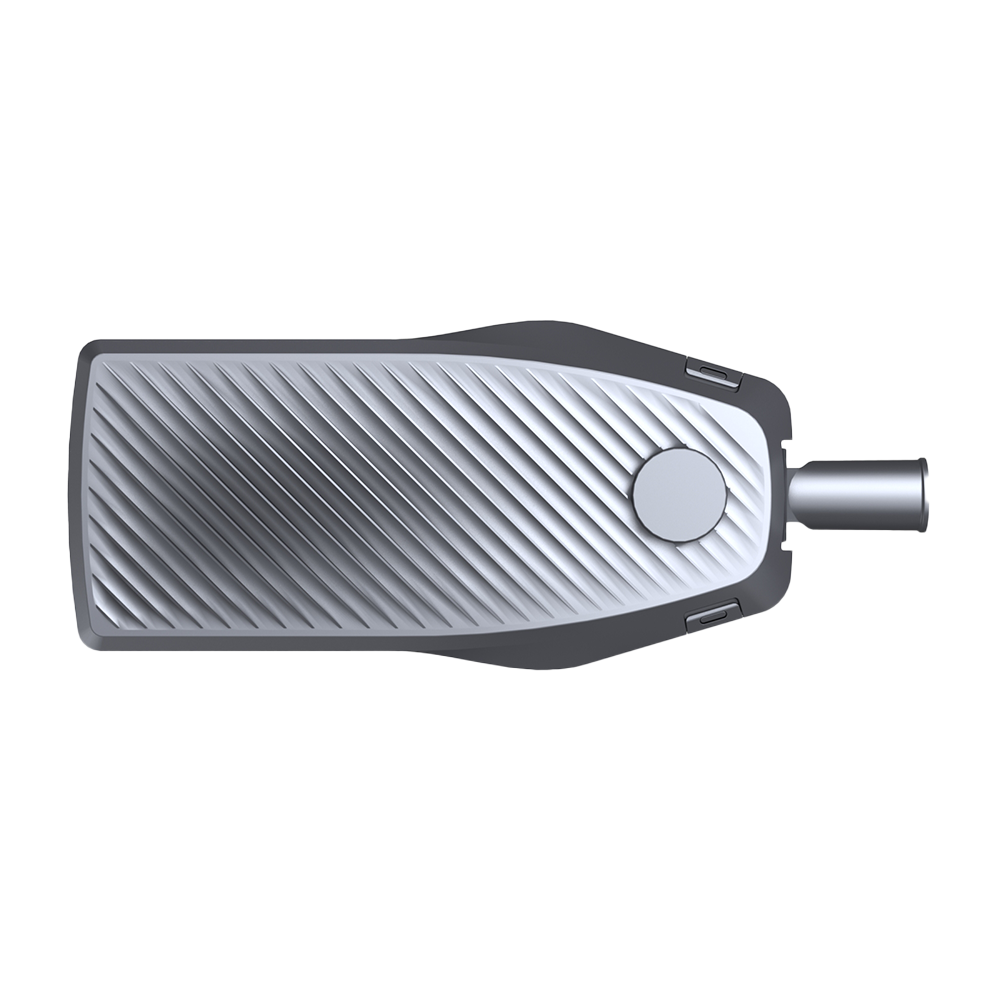

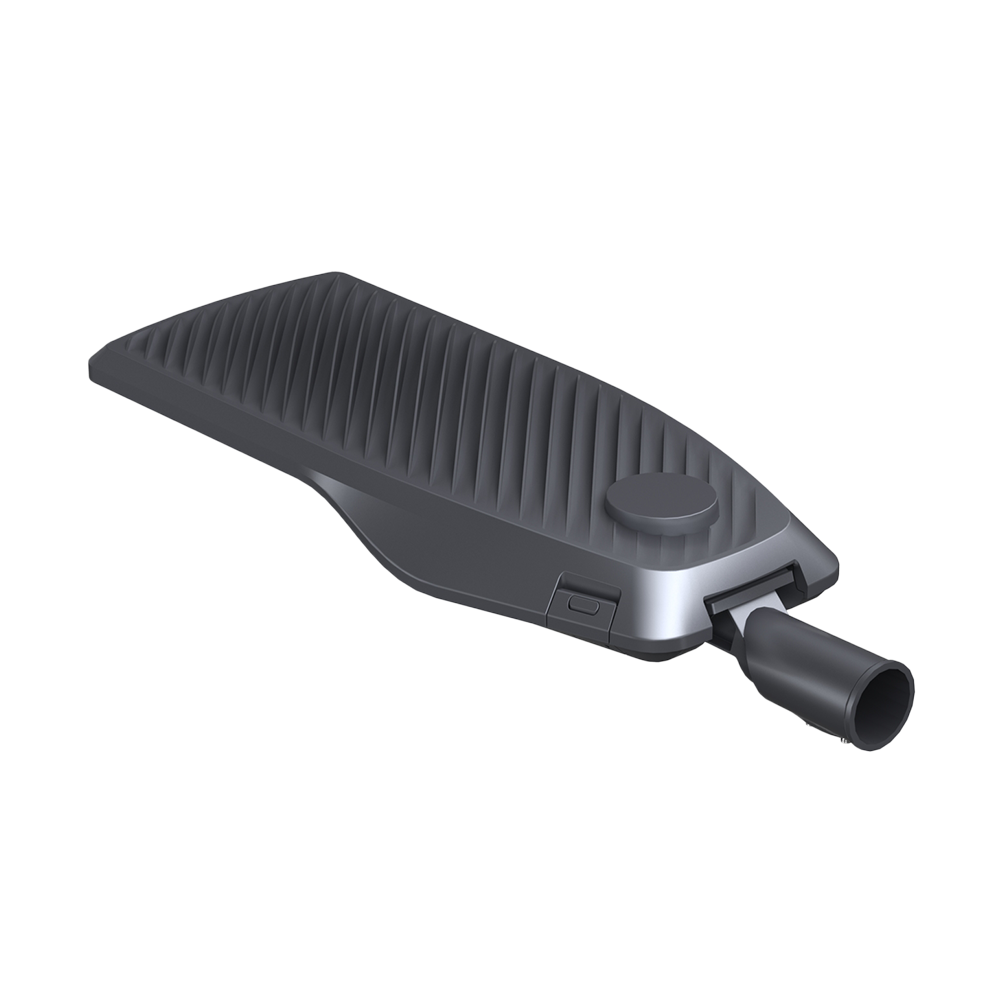

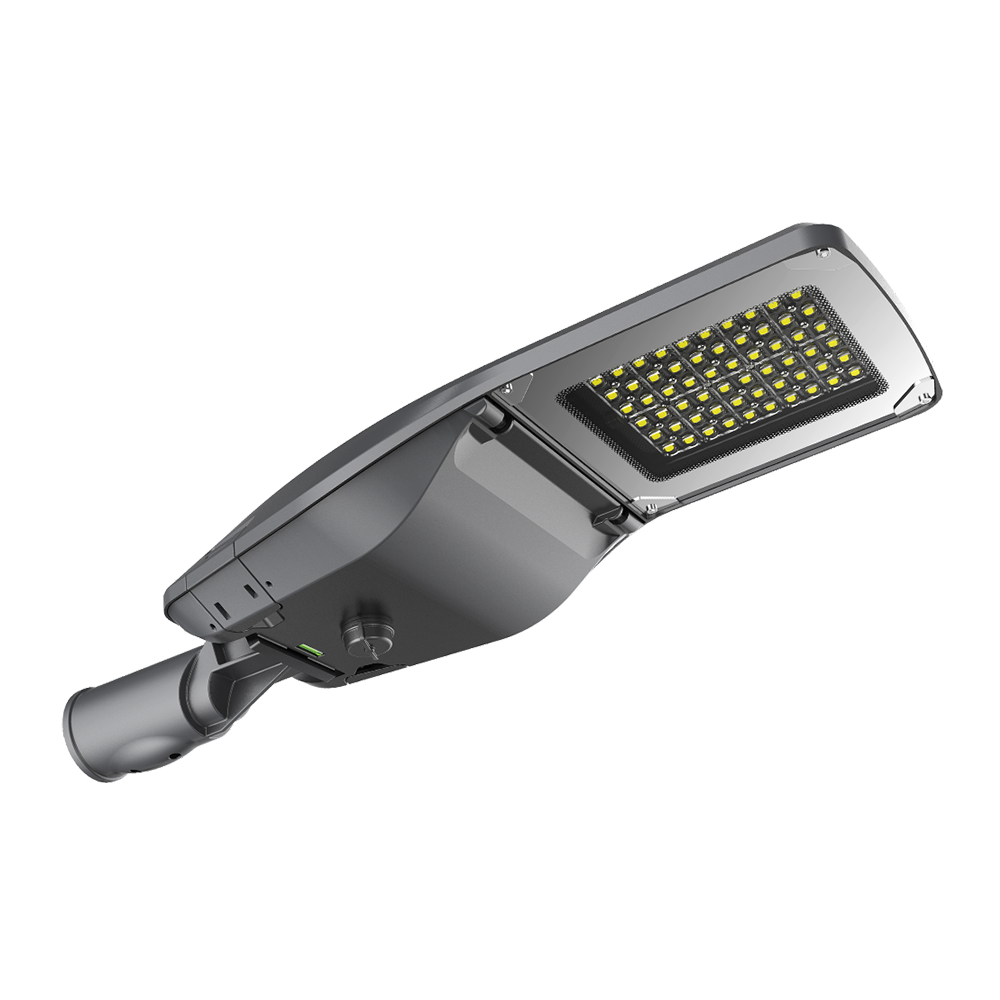

Manta is a highly efficient LED street light, dark sky friendly and developed with enhanced innovative detachable solution for easy maintenance. With 4 product sizes ranging from 20-240W, Manta meet the needs for various applications, such as highway, urban road & street, residential street and even in harsh environments.
Feature：

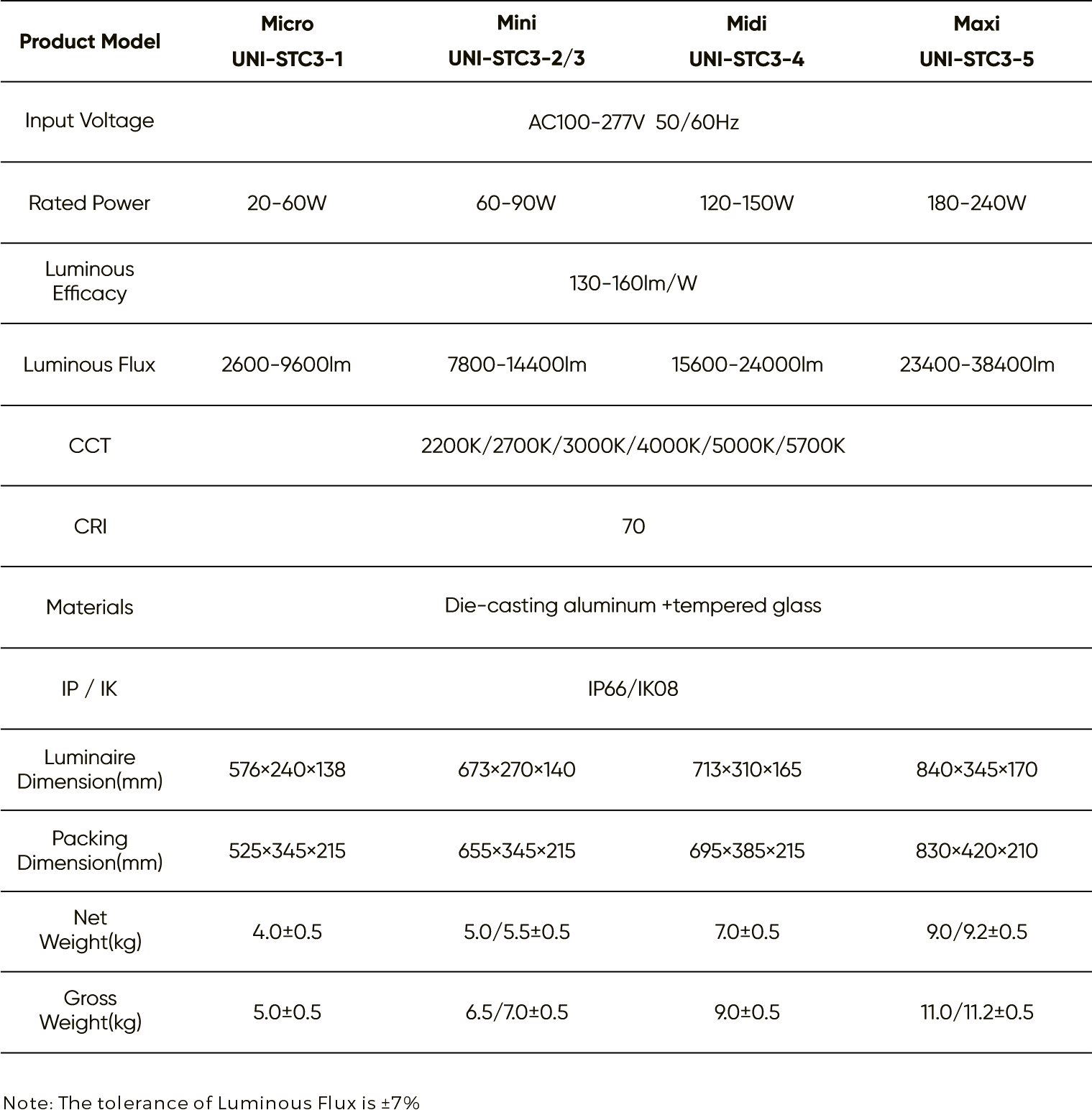

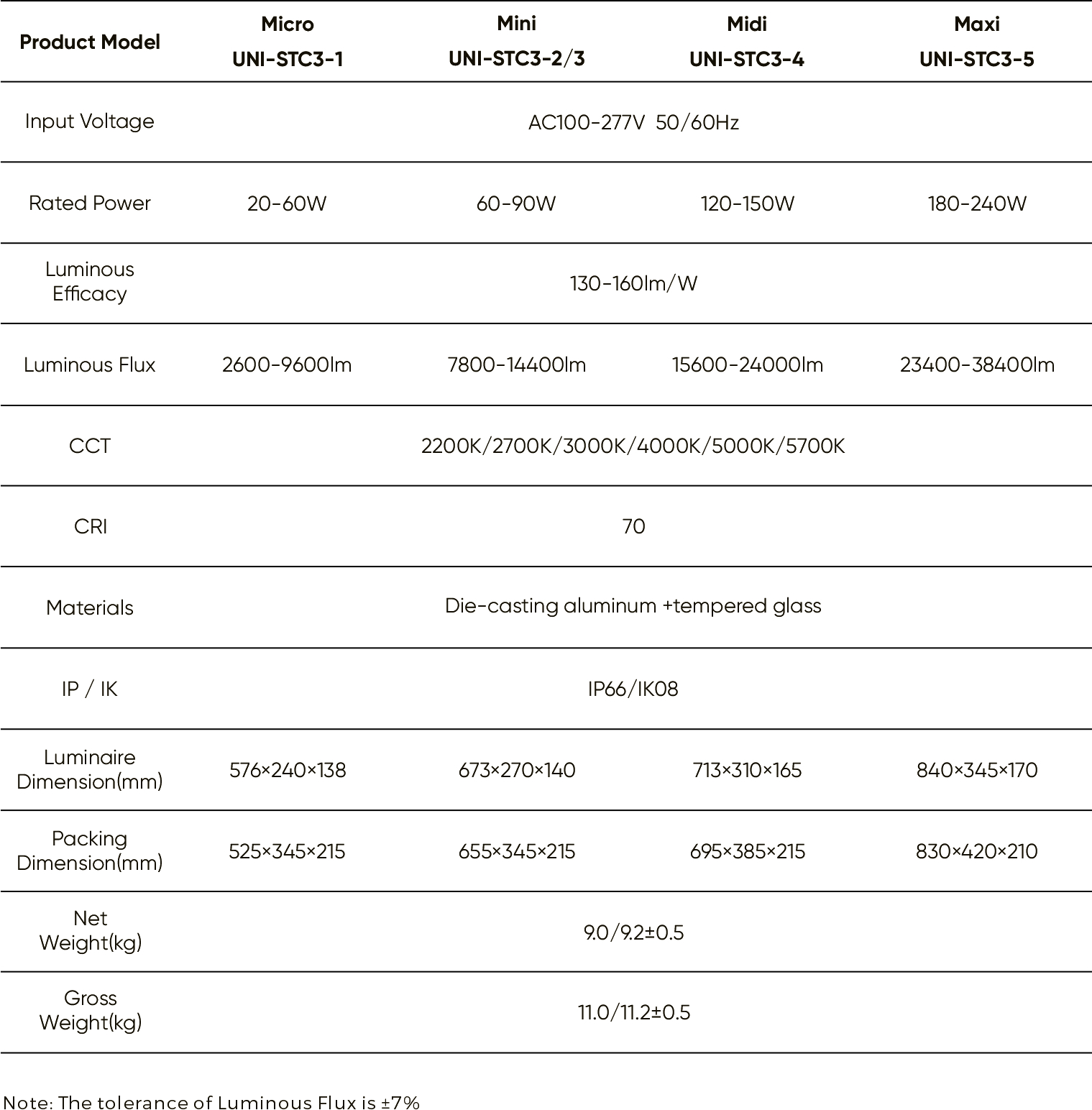

- Rated Power Range: 15W-240W.
- Rated Input Voltage: AC90-305V/AC220-240V,50/60Hz.
- Housing Material: Low copper content die-casting aluminum with toughened heat resistant glass.
- Cutting-edge tool-free detachable design for accessing LED driver compartment for ease of maintenance.
- Protection Rating: IP66 as per IEC 60598-1, IK08 as per IEC 62262.
- Both side-entry and post top installation available.
- High brightness and efficient top-tier LEDs.
- CCT available in 2200K/2700K/3000K/4000K/5000K/5700K/6500K.
(Remark : Only 3000K and below CCT comply with DarkSky standard)
- On/Off or DALI 2 or 0-10V dimmable LED driver. DarkSky Approved luminaire with dimmable driver option adjustable to ≤10% of maximum lumen output.
- Equipped with bubble level and knife switch to ensure product balanced and safer installation at site.
- Both NEMA and ZHAGA receptacle available for future smart cities integration.
- Built in external 10KV surge protection device, optional 20KV.

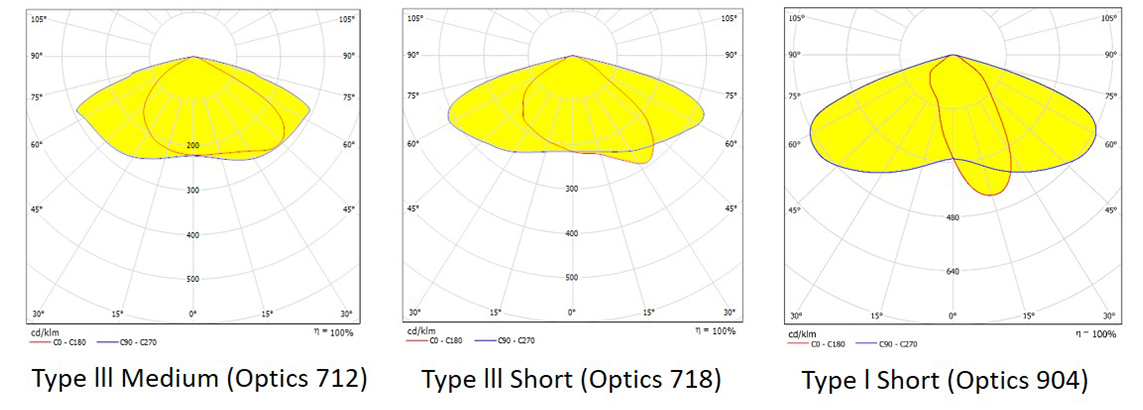

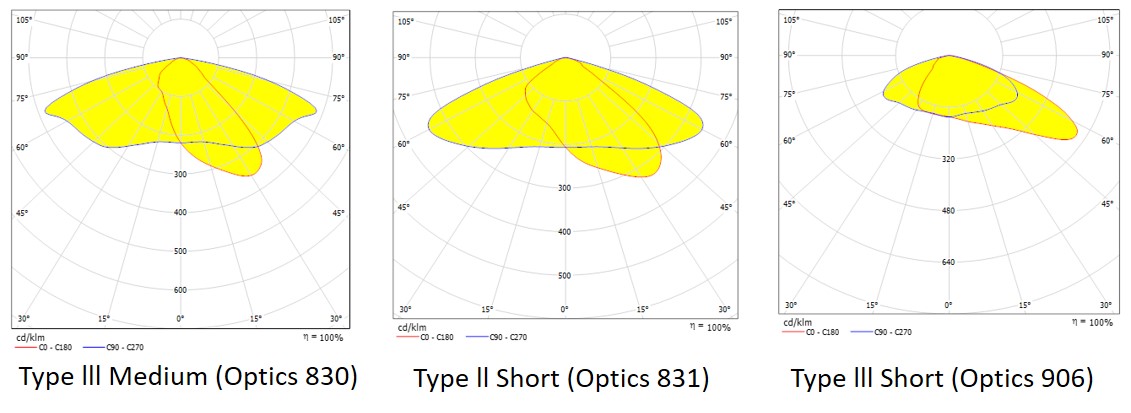

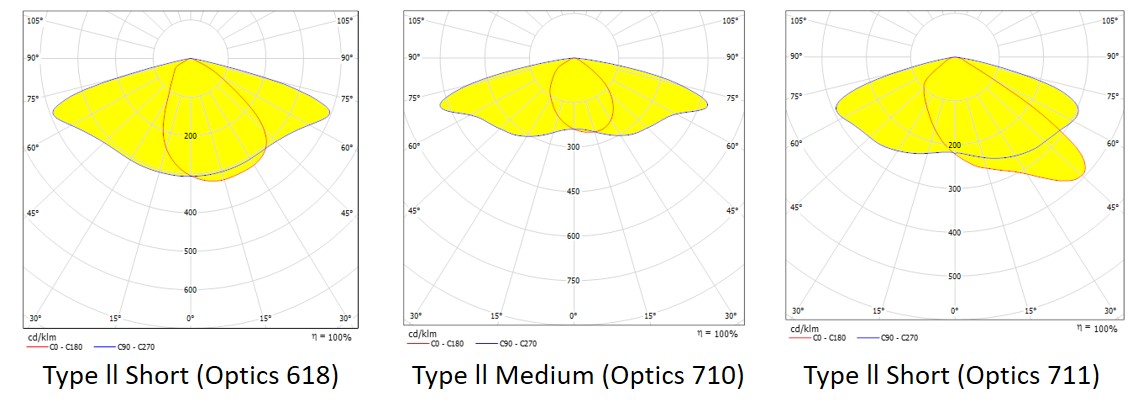

- Multiple light distribution (Full cut-off & Semi cut-off) curves for meeting different lighting applications.
- Solar lighting system compatible.
- Control mode: Photocontrol, Power line communication (NEMA), NB-IoT(NEMA), Zigbee(NEMA),LoRa(NEMA),Cat.1(NEMA&Zhaga).
- Pole Diameter: Standard Φ60 (Optional Φ42mm and Φ76mm).
- Operating environment : Operating temperature - 40℃ ~ 50℃, Operating humidity :10% ~ 95 %RH, Storage temperature - 40 ℃ ~ 55 ℃.
- Warranty : Standard 5 years, 7 to 10 years available upon request.
Applications: high way, city road, branch road, urban road, rural road, parking, etc. public areas.
