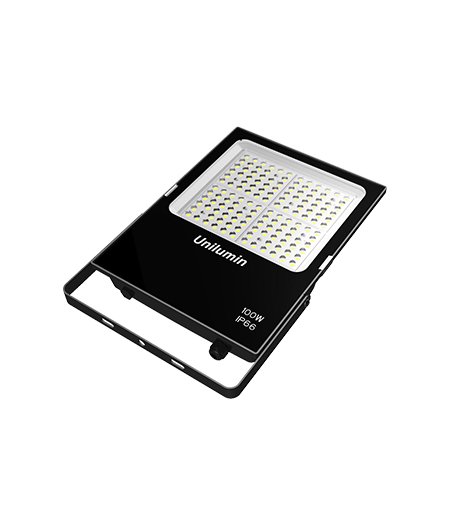

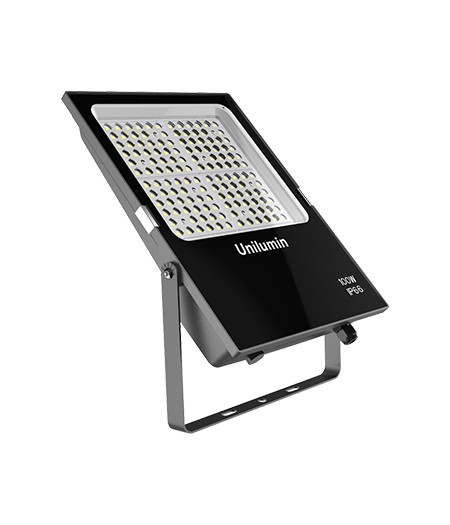

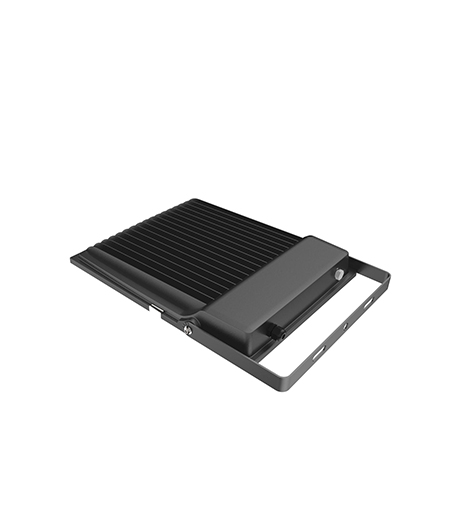

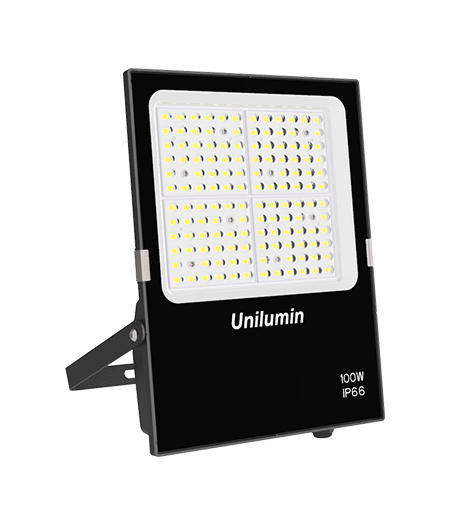

GeniFlood

GeniFlood is a robust floodlight designed for functional lighting purposes such as billboard, signage etc., with professional optical designs.



· Die-casting aluminum housing, special oxidation and excellent thermal performance, corrosion resistance, anti-aging, and longer life span.
· Ultra transparent tempered glass Light-emitting surface for stable luminous flux.

· Breathing valve for preventing fogging and condensation.
· Compatible with radar sensor.
· Angle adjustment:0-180°.
· Industrial design patent.
· Multiple light distribution options.
· Self-cleaning.



Applications: Billboard, courtyard, park etc.


Parameters

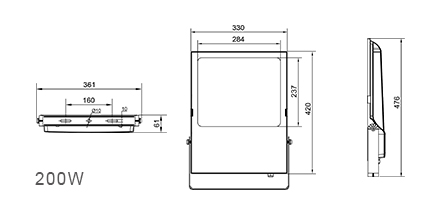

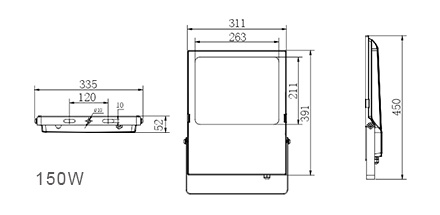

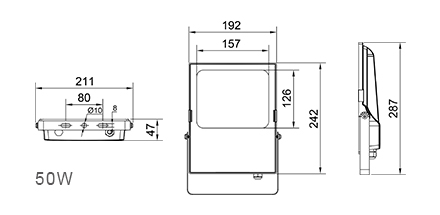

Structure

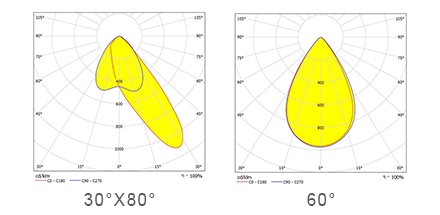

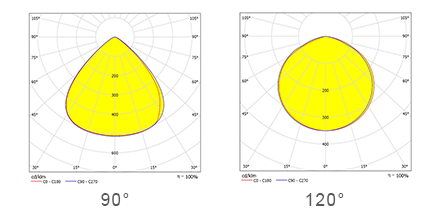

Light Distribution

Specs Sheet

GeniFLood

PARAMETERS

Model

UNI-PR13-1-050

UNI-PR13-2-100

UNI-PR13-3-150

UNI-PR13-4-200

Input Voltage

AC120-277V~50/60Hz

Rated Power

50W

100W

150W

200W

Luminaire Flux

6500lm

13000lm

  19500lm

26000lm

Luminous Efficiency@5000K

130lm/W

Nominal CCT

3000/4000/5000/5700K

Lifespan

50,000 Hour

Housing Material

Die-casting Aluminum + Ultra transparent tempered glass

Operating Temperature

-40°C~50°C

Operating Humidity

10%~90% RH

Storage Temperature

-40°C~65°C

Luminaire

Dimension(mm

287×211×47

361×259×51

450×335×52

476×361×61

Net Weight

1.5±0.5Kg

2.6±0.5Kg

4.0±0.5Kg

5.3±0.5Kg

Adjustable Angle

0~270°

Protection Grade

IP66/IK07

Certifications

CE/CB/ROHS


GeniFlood Basic

PARAMETERS

Model

UNI-PR13-1-050

UNI-PR13-2-100

UNI-PR13-3-150

UNI-PR13-4-200

Input Voltage

AC100-277V~50/60HZ

Rated Power

50W

100W

150W

200W

Luminaire Flux

5750lm

11500lm

  17250lm

23000lm

Luminous Efficiency@5000K

115lm/W

Nominal CCT

3000/4000/5000/5700K

Lifespan

30,000 Hour

Housing Material

Die-casting Aluminum + Ultra transparent tempered glass

Operating Temperature

-40°C~50°C

Operating Humidity

10%~90% RH

Storage Temperature

-40°C~65°C

Luminaire

Dimension(mm

287×211×47

361×259×51

450×335×52

476×361×61

Net Weight

1.5±0.5Kg

2.6±0.5Kg

4.0±0.5Kg

5.3±0.5Kg

Adjustable Angle

0~270°

Protection Grade

IP66/IK07

Certifications

CE/CB/ROHS
