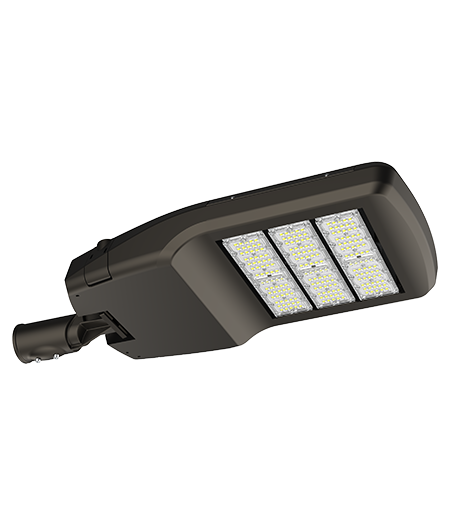

M-LUX

Design with user-friendly and high ROI in mind, M-LUX is made from high-strength materials for stable operation and is easy to maintain and install by its tool-free buckle design and bubble level. M-LUX is smart-ready with NEMA & Zhaga interfaces for intelligent management while offering efficient illumination to meet all your needs in outdoor applications such as urban streets, pedestrian paths, squares, etc.



Applications: urban streets, pedestrian paths, squares, etc.



Parameters

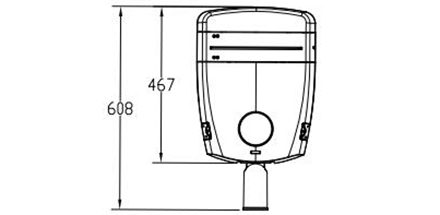

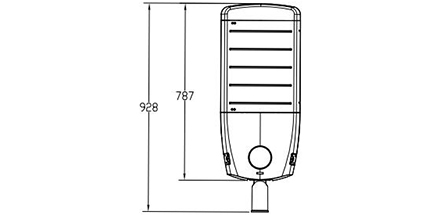

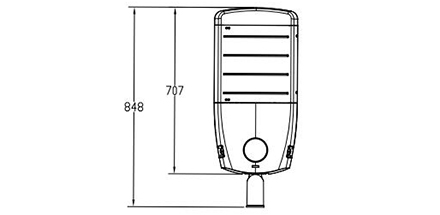

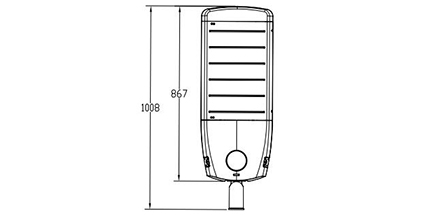

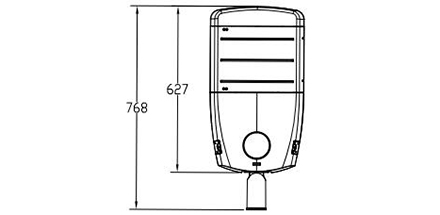

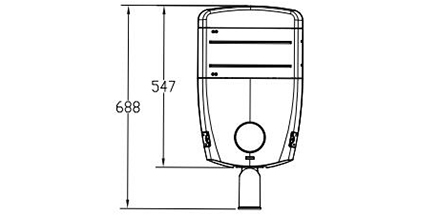

Structure

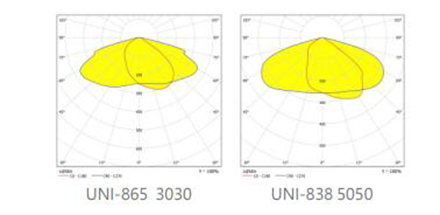

Light Distribution

Specs Sheet


Model

UNI-STC6-1

UNI-STC6-2

UNI-STC6-3

UNI-STC6-4

UNI-STC6-5

UNI-STC6-6

Input Voltage

AC108-305V  50/60Hz

PF

≥0.90

≥0.95

Power

40W

60W

80W

100W

120W

150W

180W

200W

240W

300W

350W

400W

Luminaire Efficiency(Tq=25°)

150lm/W @4000K

Luminous Flux (±7%)

6000 lm

9000 lm

12000 lm

15000 lm

18000 lm

22500 lm

27000 lm

30000 lm

36000 lm

45000lm

52500lm

60000lm

CCT(±300K)

3000K/4000K/5000K/5700K

CRI

70

Main Materials

Die-casting Aluminum +SGCC+PC

Protection Grade

IP66/IK08




OTHERS
