Nova Canopy

Nova is a professional canopy lighting luminaire for gas stations. Being constructed from die-casting aluminum housing and tempered glass, Nova Canopy is durable and long-lasting. With 155lm/W efficacy and reliable system design, Nova greatly reduces the TCO of gas station owners by saving electricity bills, cutting down maintenance costs, and helping to enhance their business by avoiding lighting blackouts and disruption. The integrated flat tempered glass design prevents the gas from entering into the canopy to cause damage to the canopy structures.

· High efficacy 155lm/W

· CRI 70/80 optional

· High ambient up to 50℃

· Optimized thermal management

· CE, IP66, IK08 compliant

· Universal input voltage 100-277V ~50/60Hz

· Recessed mount for service station

· Tool-free access for easy maintenance

· Breathing valve for preventing fogging and condensation

· Applications: Gas station


Parameters

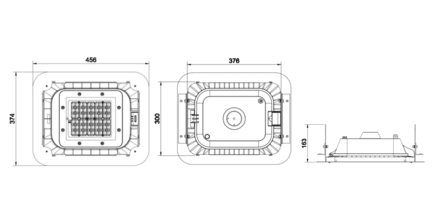

Structure

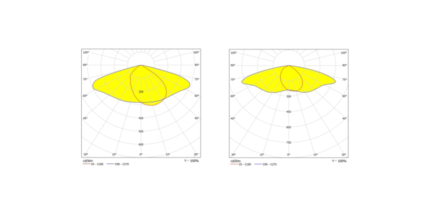

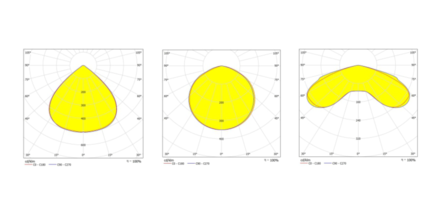

Light Distribution

Specs Sheet

PARAMETERS

Model

UNI-RC01-1-030

UNI-RC01-1-040

UNI-RC01-1-060

UNI-RC01-1-080

Power Factor

≥0.90

≥0.95

Input Voltage

AC100-240V 50/60Hz

Rated Power

30W

40W

60W

80W

Luminaire Flux

4650lm

6200lm

  9300lm

12400lm

Luminous Efficiency

155lm/w @4000K tq=25

SDCM

≤5

Nominal CCT

3000/4000/5000/5700K

CRI

70/80

Lifespan

50,000 Hrs

Housing Material

Die-casting aluminum + tempered glass

Operating Temperature

-40°C ~50°C

Max. Projection Area()

0.11

Protection Grade

IP66 IK08

Surge Protection

10KV

Luminaire Size (mm

250×95×63

300×110×63

400×150×74

500×180×74

Net Weight

11.5±1.0Kg

12.6±1.0Kg

16.5±1.0Kg

10.5±1.0Kg

Certifications

CE/RoHS


OTHERS
