Zeta
Features
Power range: 20-80W. Max. Output: 13,600 Lm
Luminaire efficiency: up to 170 lm/W (street). CCT: 1800K-6500K
Materials: Tempered Glass protection, PMMA lens, Anti-Corrosion Die-cast Aluminum Housing

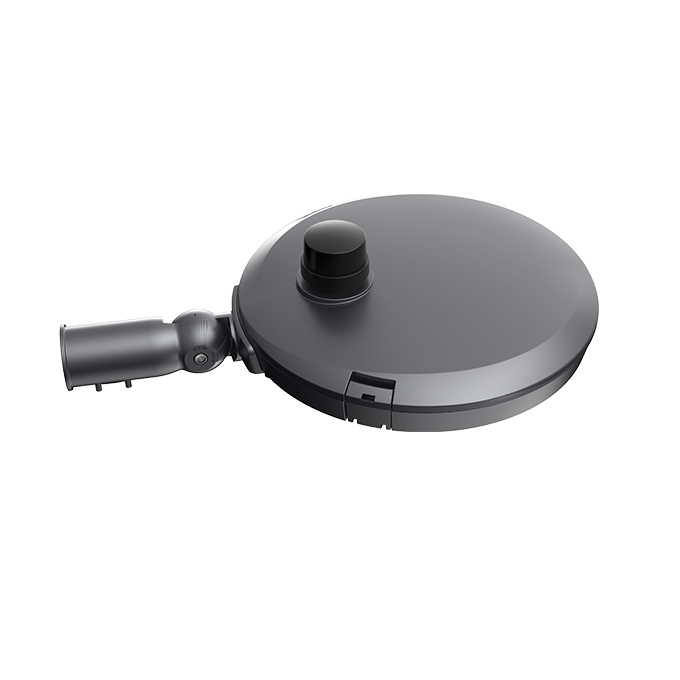

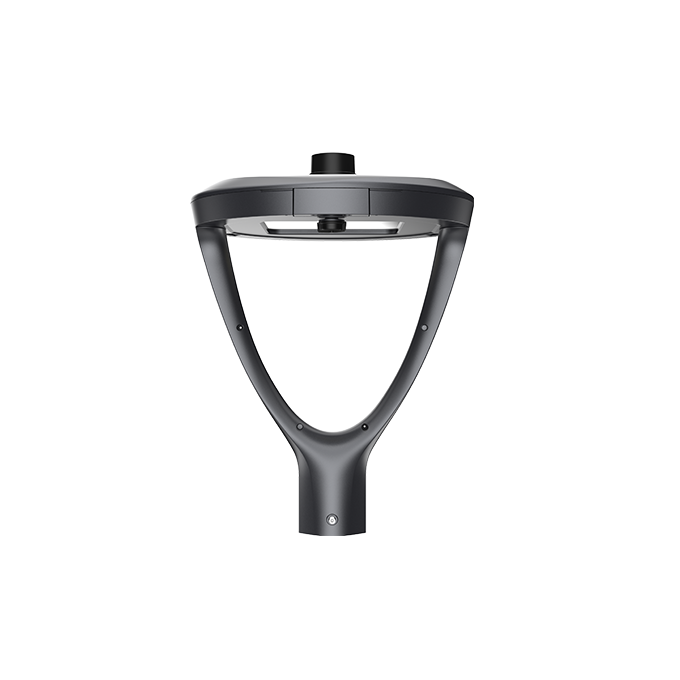

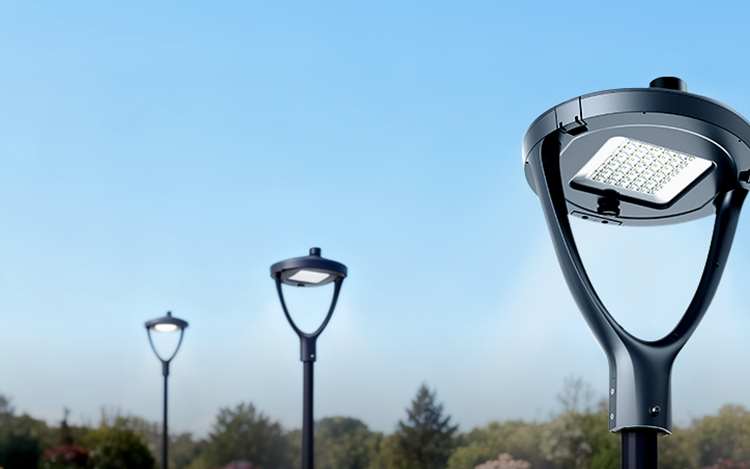

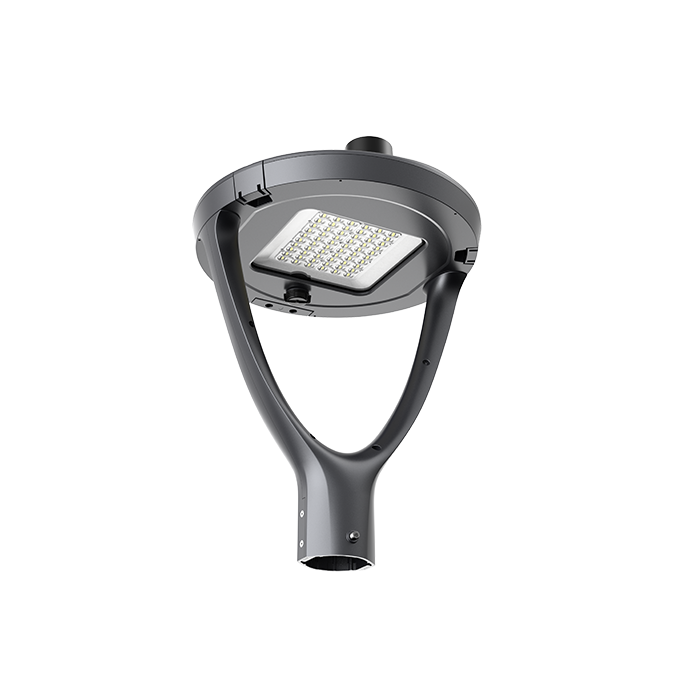

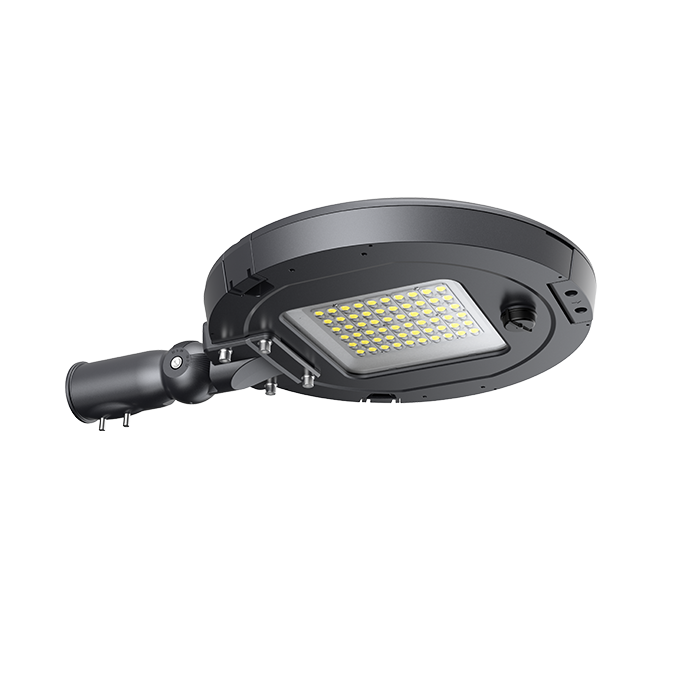

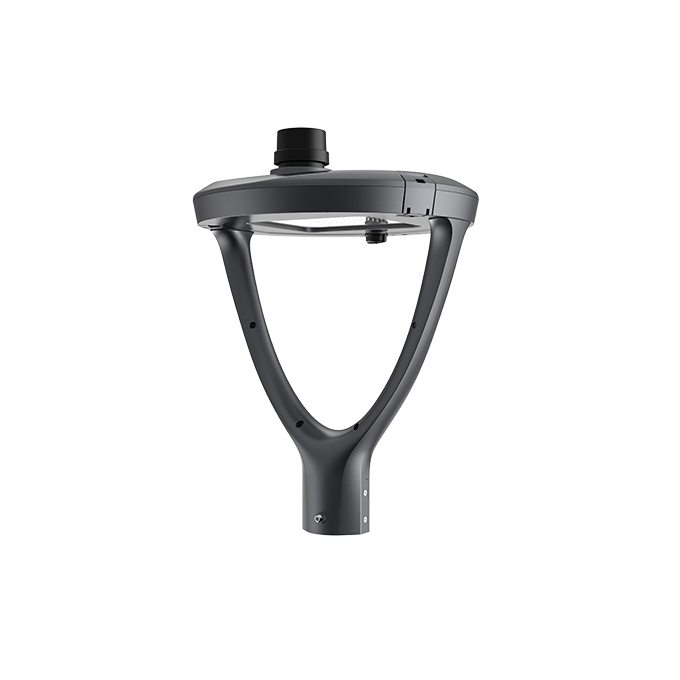

Installation: Side entry (street) and Post top (garden)
Tool-free opening and maintenance
Smart ready: Supports NEMA, ZHAGA interfaces and a variety of intelligent lighting controls
Protection grade: IP66, up to IK09; Lifespan: >100,000 hours
Certifications & Reports: CE/CB/ENEC/ENEC+/IP66/IK08/RoHS
Application scenarios
Urban & Residential Street
Pedestrian Path

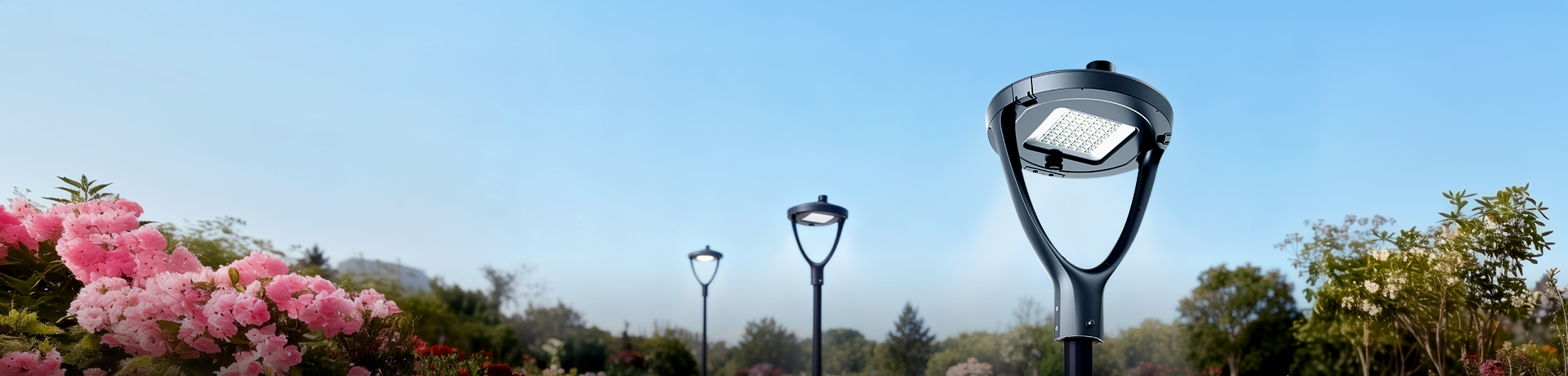

Park & Square
Rural Road
Bridge
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-YA06-1 | UNI-YA06-2 | ||||||
| Power (W) | 20 | 40 | 60 | 80 | 20 | 40 | 60 | 80 |
| Luminous Flux （lm） | 2900 | 5800 | 8700 | 11600 | 3200 | 6400 | 9600 | 12800 |
| Working Temp. | - 40 ℃ ～ 45 ℃ | |||||||
| Working Humidity | 10 % ～ 90 % RH | |||||||
| Storage Temp. | - 40 ℃ ～55 ℃ | |||||||
| Housing Materials | Die-casting aluminum | |||||||
| IP Grade | IP66 | |||||||
| IK Grade | IK08 | |||||||
| Life Span (Hrs) | 50,000 | |||||||
Electrical
| Product Model | UNI-YA06-1 | UNI-YA06-2 | ||||||
| Power (W) | 20 | 40 | 60 | 80 | 20 | 40 | 60 | 80 |
| Power Factor | ≥0.92 | ≥0.92 | ≥0.95 | ≥0.95 | ≥0.92 | ≥0.92 | ≥0.95 | ≥0.95 |
| Input Voltage | AC100-277V 50/60Hz | |||||||
| Driver | Moso/Sosen/Inventronics D4i | |||||||
Optical
| Product Model | UNI-YA06-1 | UNI-YA06-2 | ||||||
| Power (W) | 20 | 40 | 60 | 80 | 20 | 40 | 60 | 80 |
| LED | Osram 5050 | |||||||
| CCT（K） | 3000K/4000K/5000K | |||||||
| Luminaire Efficiency@4000K、Ta=25℃ (lm/W) | 145 | 160 | ||||||
| CRI | 70 | |||||||
Light Distribution
UNI-YA06-1 Type Ⅱ(UNI-618)
UNI-YA06-1 Type Ⅱ(UNI-710)
UNI-YA06-1 Type ⅡUNI-711)
UNI-YA06-2 Type Ⅱ(UNI-618)
UNI-YA06-2 Type Ⅱ(UNI-710)
UNI-YA06-2 Type Ⅱ(UNI-711)
Dementions
| Product Model | UNI-YA06-1 | UNI-YA06-2 | ||||||
| Power (W) | 20 | 40 | 60 | 80 | 20 | 40 | 60 | 80 |
| Max Projected Area (㎡) |
0.15 | 0.16 | ||||||
| Product Dimension (mm) |
430x430x532 | 635x430x111(horizontal)/519x430x225（vertical） | ||||||
| Packing Dimension (mm) |
545×525×245 | |||||||
| Net Weight (kg) | 6.033 | 5.772 | ||||||
| Gross Weight (kg) | 9.524 | 9.263 | ||||||
Product specifications are for reference only and subject to the official contract documents.
