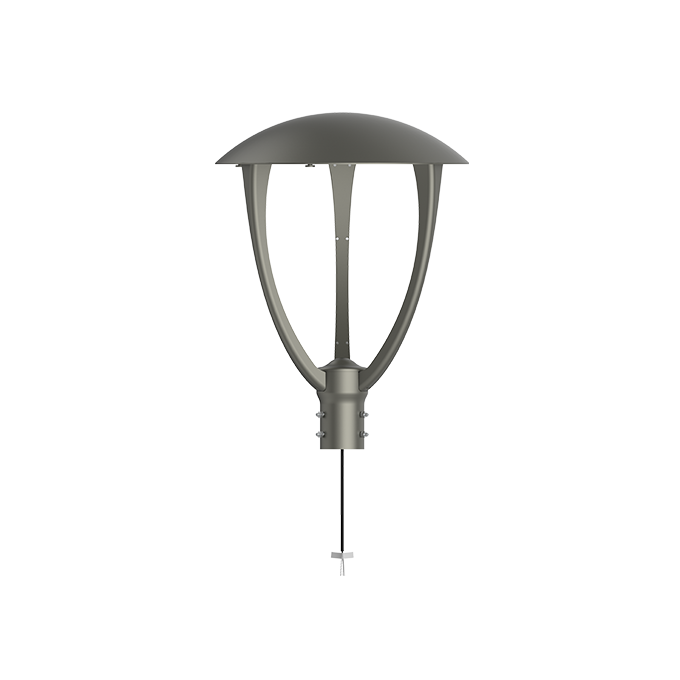

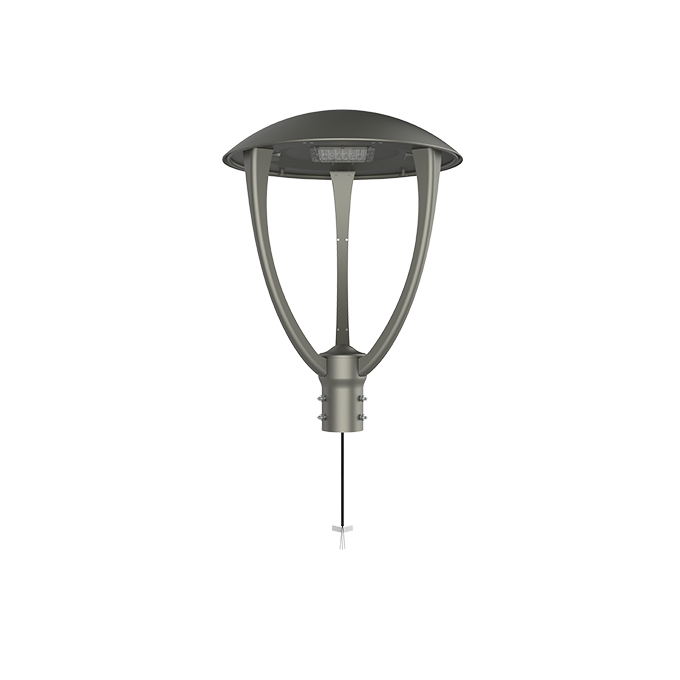

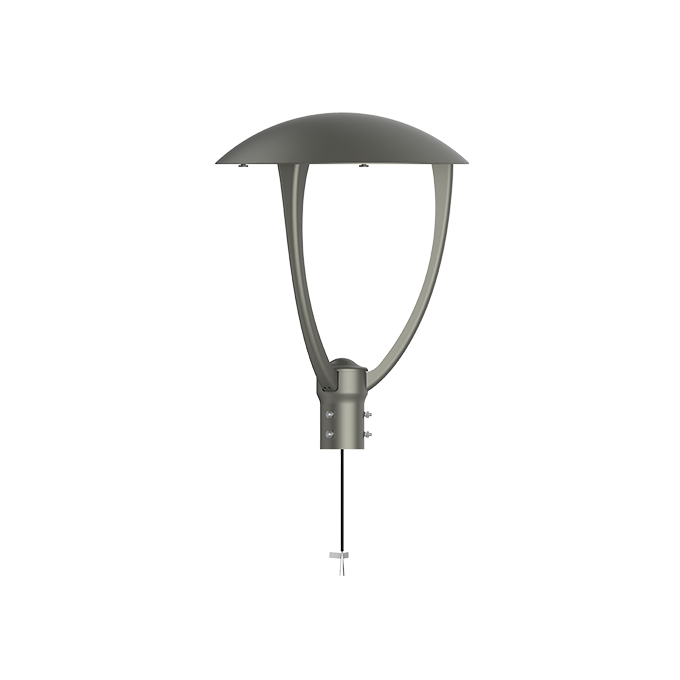

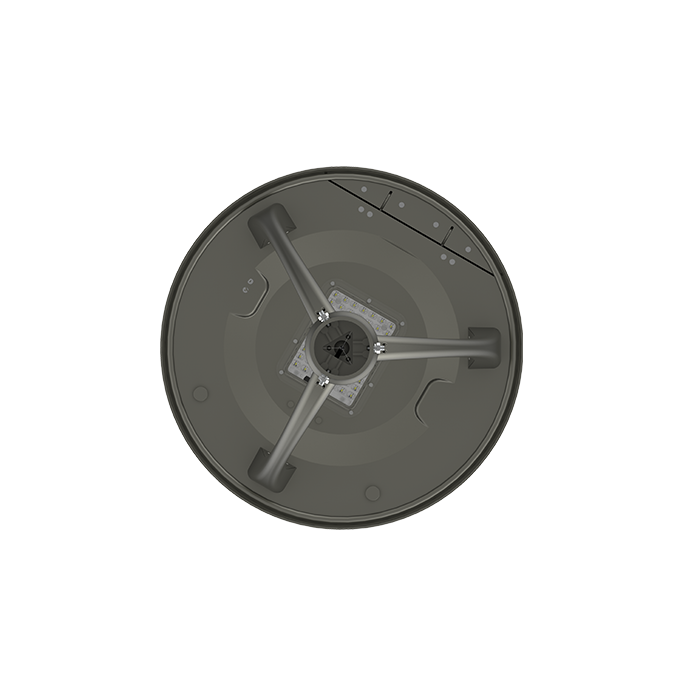

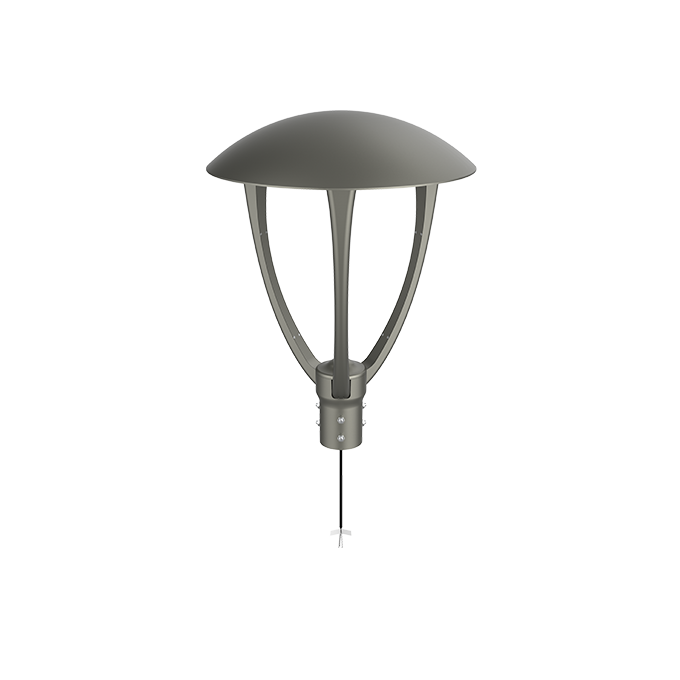

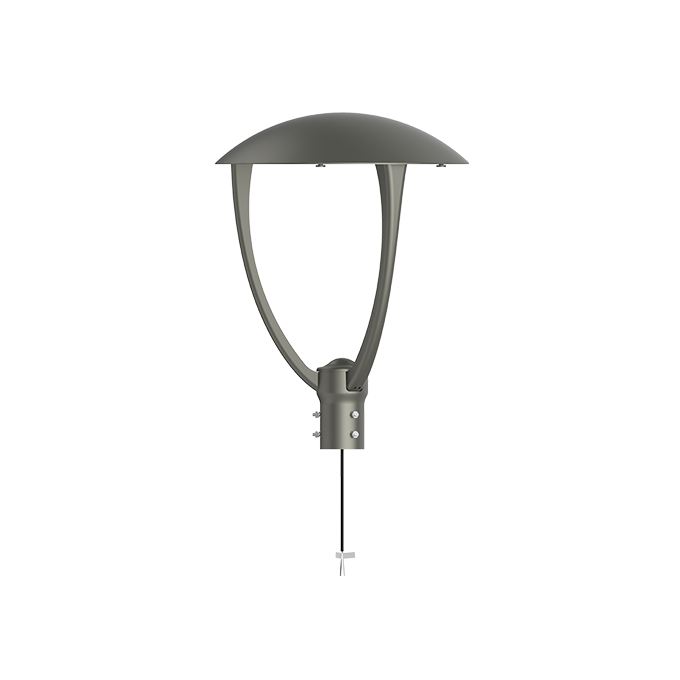

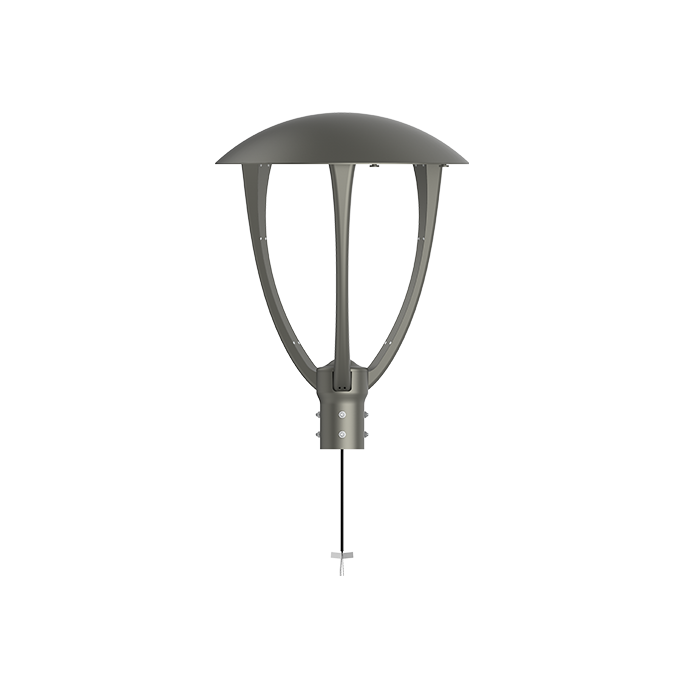

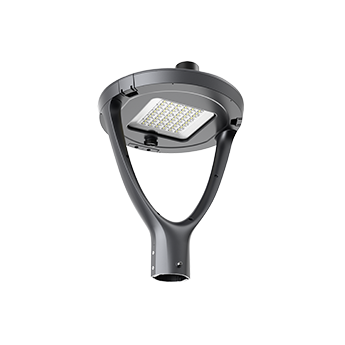

Opera
Features
Power range: 15W-80W. Max. Output: 12,800 Lm
Luminaire efficiency: up to 160 lm/W. CCT: 1800K-6500K
Materials: Tempered Glass protection, PMMA lens, Anti-Corrosion Die-cast Aluminum Housing
Ease of maintenance with tool-free thumb screw design
Smart ready: Support Nema and Zhaga receptacle for smart control connectivity
Protection ratings: IP66, IK08; Life time: >100,000 hours
Certifications & Reports: CE/CB/ENEC/RoHS/LM-80/IP66/IK08
Application scenarios
Urban & Residential Street
Pedestrian Path
Park & Square
Rural Road
Bridge
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-YA03-1-18 | UNI-YA03-1-25 | UNI-YA03-1-35 | UNI-YA03-1-45 | UNI-YA03-1-65 | UNI-YA03-1-80 |
| Power (W) | 18 | 25 | 35 | 45 | 65 | 80 |
| Luminous Flux （lm） | 1980/2700 | 2750/3750 | 3850/5250 | 4950/6750 | 7150/9750 | 8800/12000 |
| Working Temp. | - 40 ℃ ～ 50 ℃ | |||||
| Working Humidity | 10 % ～ 90 % RH | |||||
| Storage Temp. | - 40 ℃ ～55 ℃ | |||||
| Housing Materials | Die-casting aluminum | |||||
| IP Grade | IP66 | |||||
| IK Grade | IK08 | |||||
| Life Span (Hrs) | 50,000 | |||||
Electrical
| Product Model | UNI-YA03-1-18 | UNI-YA03-1-25 | UNI-YA03-1-35 | UNI-YA03-1-45 | UNI-YA03-1-65 | UNI-YA03-1-80 |
| Power (W) | 18 | 25 | 35 | 45 | 65 | 80 |
| Power Factor | ≥0.92 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
| Input Voltage | AC100-277V 50/60Hz | |||||
| Driver | Inventronics/Philips/Moso/Sosen | |||||
Optical
| Product Model | UNI-YA03-1-18 | UNI-YA03-1-25 | UNI-YA03-1-35 | UNI-YA03-1-45 | UNI-YA03-1-65 | UNI-YA03-1-80 |
| Power (W) | 18 | 25 | 35 | 45 | 65 | 80 |
| LED | Osram/ Lumileds | |||||
| CCT（K） | 3000K/4000K/5000K/5700K/6500K | |||||
| Luminaire Efficiency@4000K、Ta=25℃ (lm/W) | Option:110,150lm/W | |||||
| CRI | 70 | |||||

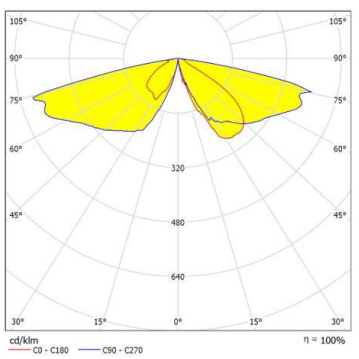

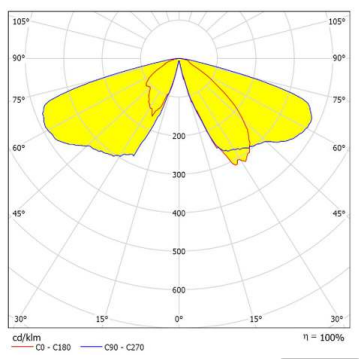

Light Distribution

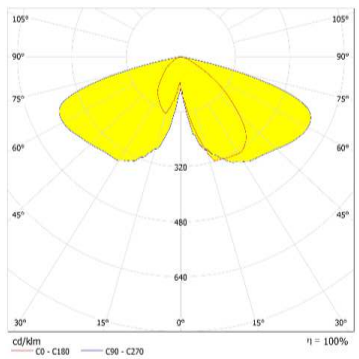

Type Ⅱ(UNI-482)

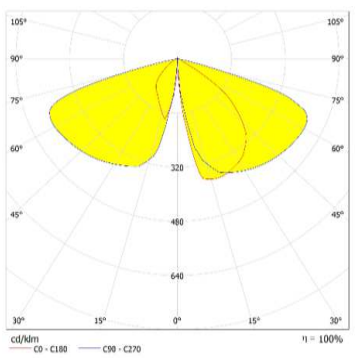

Type Ⅱ(UNI-540)
Type Ⅱ(UNI-618)
Type Ⅱ(UNI-677)
Dementions
| Product Model | UNI-YA03-1-18 | UNI-YA03-1-25 | UNI-YA03-1-35 | UNI-YA03-1-45 | UNI-YA03-1-65 | UNI-YA03-1-80 |
| Power (W) | 18 | 25 | 35 | 45 | 65 | 80 |
| Packing Dimension (mm) | 590×590×250 | |||||
| Net Weight (kg) | 9.2±0.2 | |||||
| Gross Weight (kg) | 12±0.2 | |||||
Product specifications are for reference only and subject to the official contract documents.
