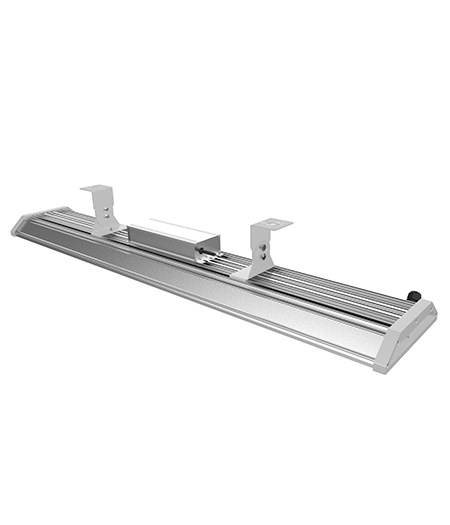

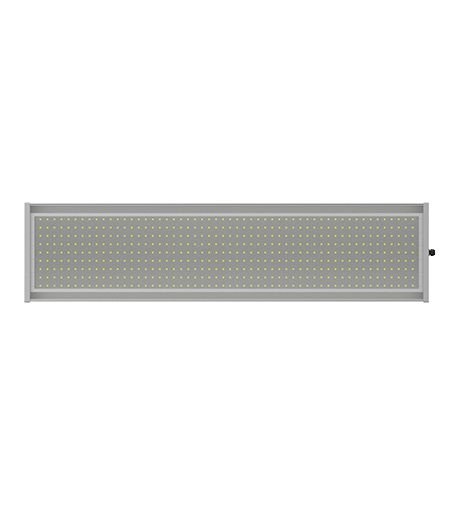

LINEAR MOON

Linear Moon series tunnel light, combining durability and elegance, delivers top-notch performance in tunnels and underpasses. It features diffused tempered glass, ensuring optimal visibility while minimizing glare for your comfort. Its linear and sleek design allows for effortless light connectivity, simplifying installation and maintenance.


1. Adopts anodic oxidation process for enhanced consoling and weather resistance

2. Linear and sleek design make sure lights can be seamlessly connected with each other

3. Diffused tempered glass ensured the glare is controlled at the minimum level

4. Precision and uniform light emission with SDCM<5

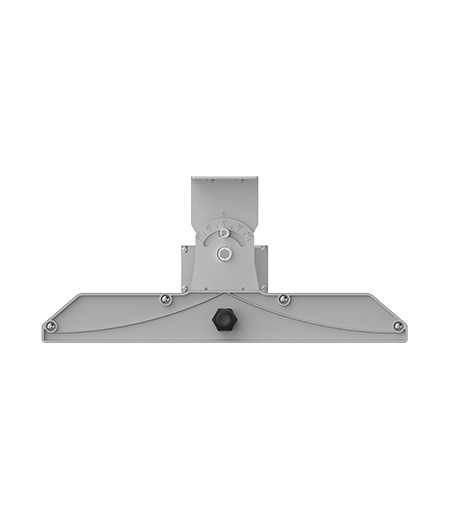

5. High flexibility with angle adjustment from -60°to 60°




Applications: Underpass and tunnel

Parameters

Structure

Light Distribution

Specs Sheet

Product Model

UNI-TNF3-1

UNI-TNF3-3

UNI-TNF3-4

UNI-TNF3-5

UNI-TNF6-1

UNI-TNF6-2

Input Voltage

AC100-277V  50/60Hz

Power (W)

10-100

20-180

20-300

20-330

20-200

20-220

CCT(K)

3000/4000/5000/5700K

Luminaire Efficiency

110lm/W

Luminous Fluxlm

1100-11000

2200-19800

2200-33000

2200-36300

2200-22000

2200-24200

CRI

70/80

Housing Materials

Die-casting Aluminum + Extruded Aluminum + Tempered Glass

IP Rating

IP66
