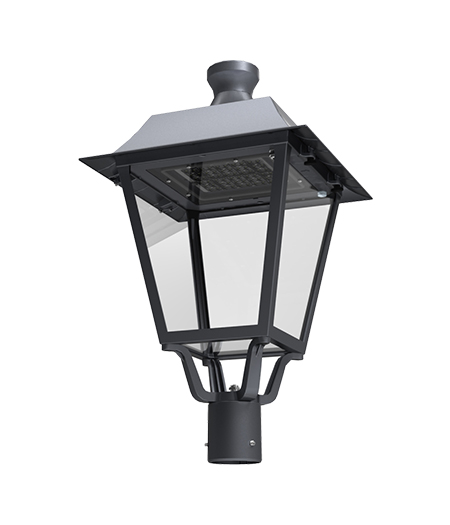

VILLA

The control-ready VILLA is one of Unilumin's latest offers for decorative and ambient lighting applcations.


◎ Futureproof and compatiable with NEMA receptables
◎ 100-277V wide voltage input range
◎ CLASS I
◎ Post top and pendant installation optional
◎ IP66
◎ Various light distributions available


Applications: Gardens, parks, parking lot etc areas.


Parameters

Structure

Light Distribution

Specs Sheet

PARAMETERS
ModelVILLA
Input Voltage100-277V
Power Factor>0.95
Rated Power15/25/35/45/60/80W
Luminaire Efficiency110-135 lm/W
Luminous Flux
1650-10800 lm
Color Temperature3000/4000/5000/±300 K
CRI>70
Light DistributionType II/III
Working Temperature-40°C~+50°C
Working Humidity10%~90% RH
Storage Temperature-40°C~+55°C
Lifespan>50,000 Hours
Housing MaterialDie-casting aluminum + PC
Product Dimension(mm)
φ430 x H487
IP RatingIP66
CertificationsTUV/CE/CB/ENEC
