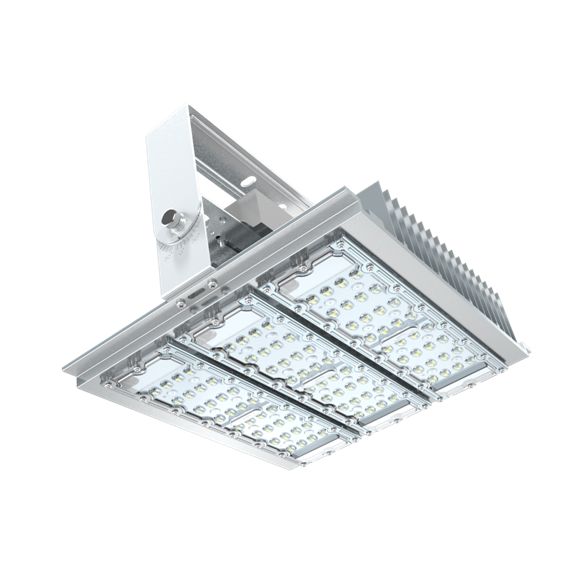

With simplistic design, Pearl moon tunnel light brings an end to tunnel vision.
| ◎ Modular design, excellent heat dissipation performance |
| ◎ 100-277V wide voltage input range |
| ◎ CLASSI |
| ◎ Smart control system compatiable |
| ◎ Adjustable mounting bracket |
| ◎ Various light distributions available |
Applications: Tunnels, underpasses, underbridges etc.
| PARAMETERS | |||||||
|---|---|---|---|---|---|---|---|
| Model | UNI-TNA3-1 | UNI-TNA3-11 | UNI-TNA3-22 | UNI-TNA3-4 | |||
| Input Voltage | 100-277V | ||||||
| Power Factor | >0.95 | ||||||
| Rated Power | 30W | 60W | 90W | 120W | 150W | 180W | 210W |
| Luminaire Efficiency | 110 lm/W | ||||||
| Luminous Flux | 3300lm | 6600lm | 9900lm | 13200lm | 16500lm | 19800lm | 23100lm |
| Color Temperature | 3000/4000/5000/±300 K | ||||||
| CRI | >70 | ||||||

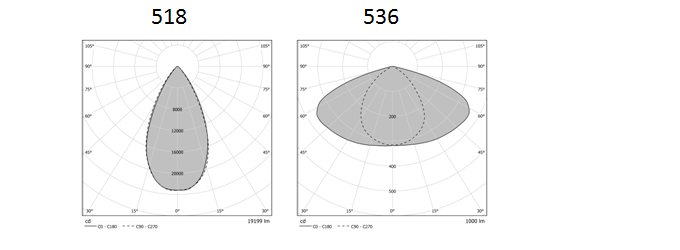

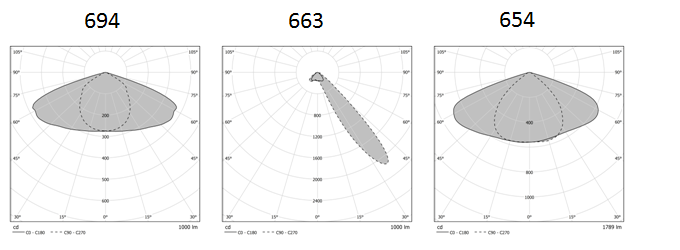

| Light Distribution | Sysmetric | ||||||
| Working Temperature | -40°C~+50°C | ||||||
| Working Humidity | 10%~90% RH | ||||||
| Storage Temperature | -40°C~+55°C | ||||||
| Lifespan | >50,000 Hours | ||||||
| Housing Material | Die-casting aluminum | ||||||
| Product Dimension | 330x194x70 | 330x194x148 | 330x194x226 | 330x194x226 | |||
| IP Rating | IP66 | ||||||
| Certifications | TUV/CE/CB/ENEC | ||||||
