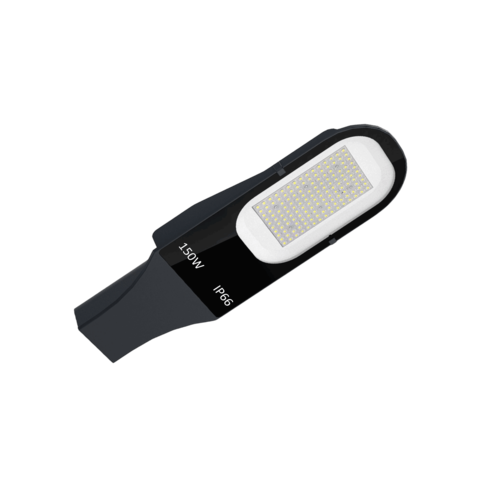

Ruralite is an economical product designed with cost and performance in mind. RuraLite can save costs
and provide reliable services, accelerating the replacement process of traditional luminaire, which is
suitable for general outdoor lighting applications.
· Reliable design with die-casting aluminum housing
· Easy to install
· Compact design, easy and save costs for logistics
· Universal 100-277V input
· Color temperature options accommodate various places

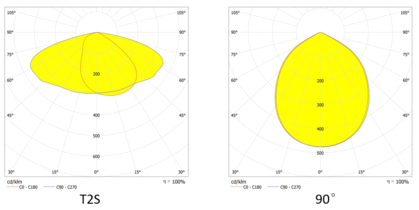

· Optimized optics for street and area lighting
· Lumen packages from 2400lm to 12000lm
· High efficacy up to 120lm/W
· 20W, 30W, 50W, 100W model options
Applications:
High way, city road, branch road, urban road, rural road, parking, etc. public areas.
PARAMETERS | |||||
Model | UNI-STE3-1-020 | UNI-STE3-2-030 | UNI-STE3-3-050 | UNI-STE3-4-100 | UNI-STE3-4-150 |
Input Voltage | AC100-277V 50/60Hz | ||||
Power Factor | ≥0.90 | ||||
Rated Power | 20W | 30W | 50W | 100W | 150W |
Luminaire Flux | 2400lm | 3600lm | 6000lm | 12000lm | 16500lm |
Luminous Efficiency@5000K | 120lm/W | 120lm/W | 120lm/W | 120lm/W | 110lm/W |
Nominal CCT | 3000/4000/5000/5700K±300K/6500±500K | ||||
Lifespan | 30,000 Hrs | ||||
CRI | 80 | ||||
Housing Material | Die-casting aluminum + tempered glass | ||||
Operating Temperature | -20°C ~45°C | ||||
Operating Humidity | 10%~90% RH | ||||
Storage Temperature | -20°C~60°C | ||||

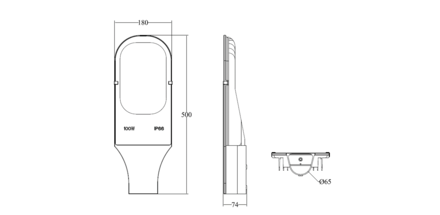

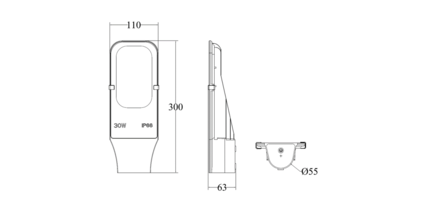

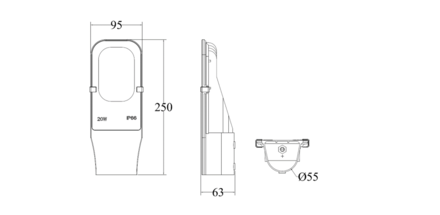

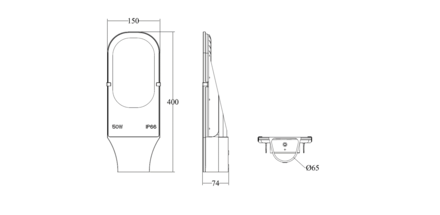

Luminaire Dimension(mm) | 250×95×63 | 300×110×63 | 400×150×74 | 500×180×74 | 500×180×74 |
Net Weight | 11.5±1Kg | 12.6±1.0Kg | 16.5±1.0Kg | 10.5±1.0Kg | 10.5±1.0Kg |
Protection Grade | IP66 | ||||
Certifications | CE/ROHS |
