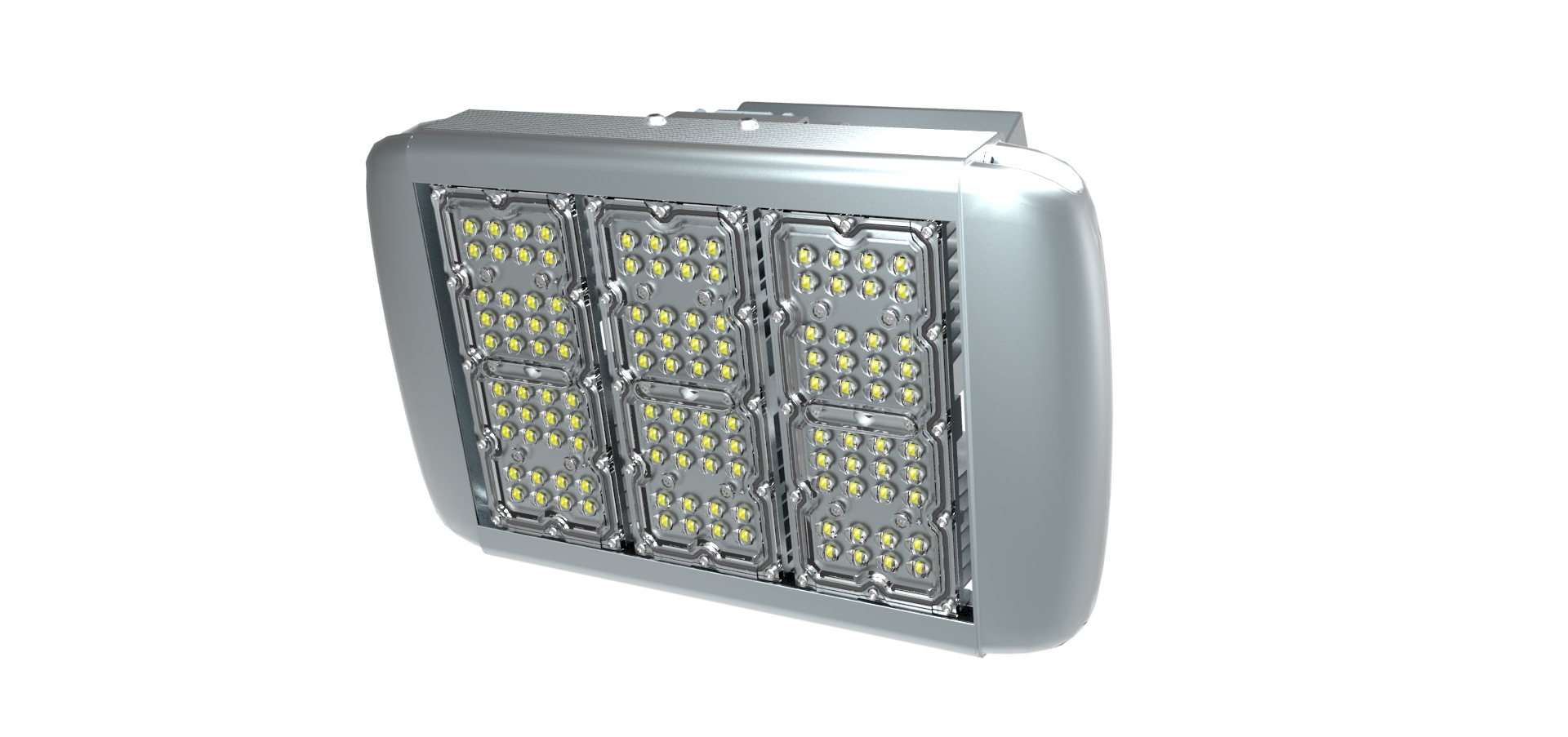

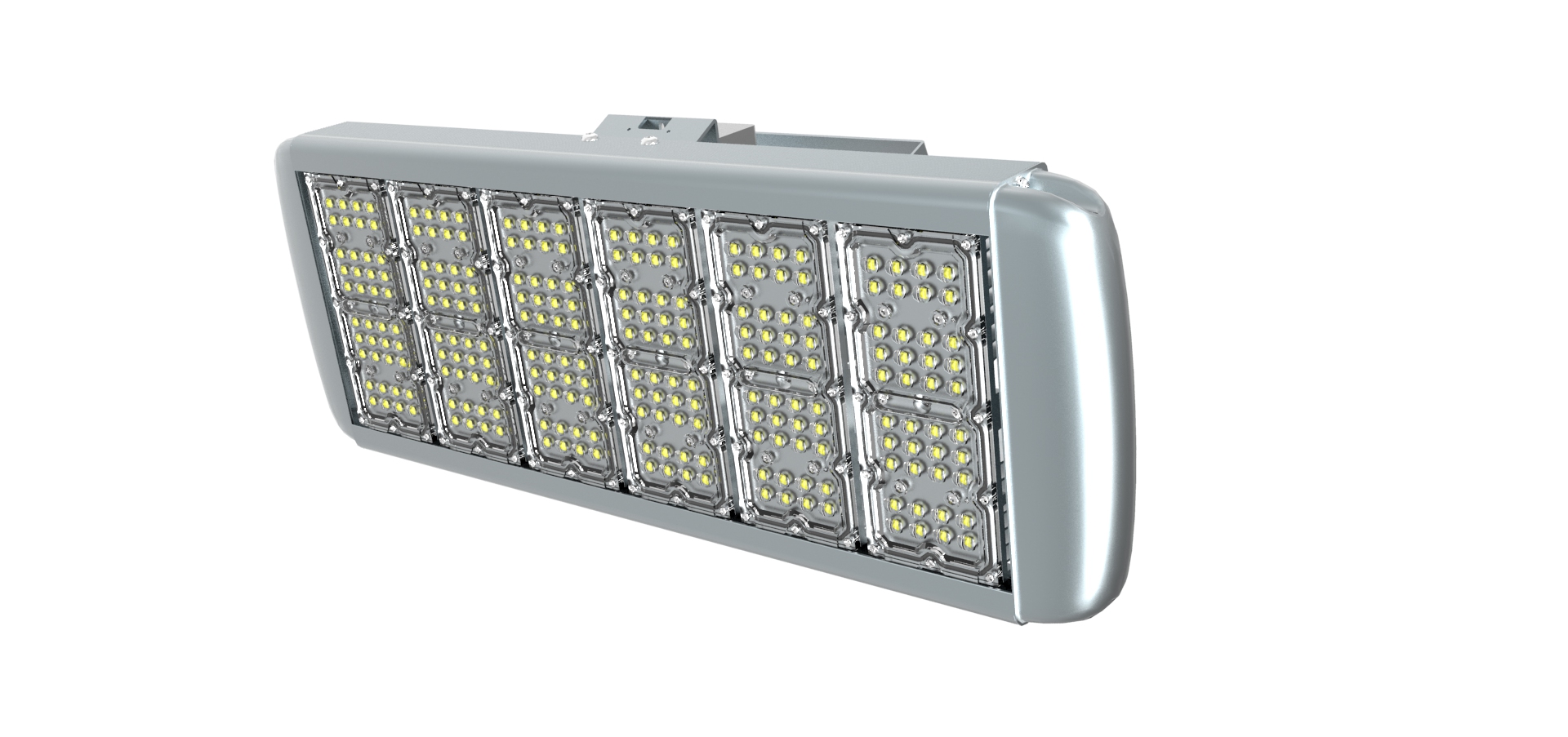

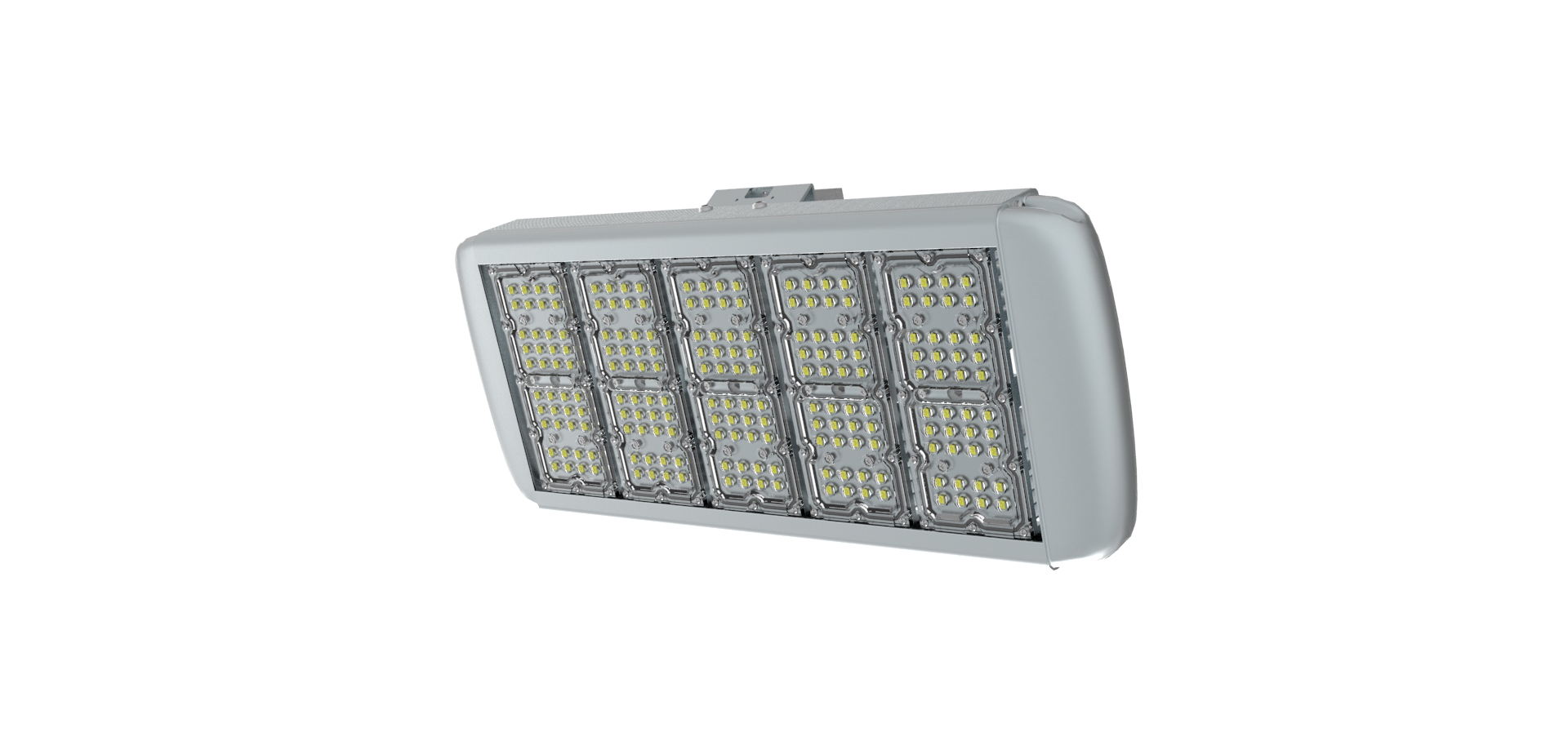

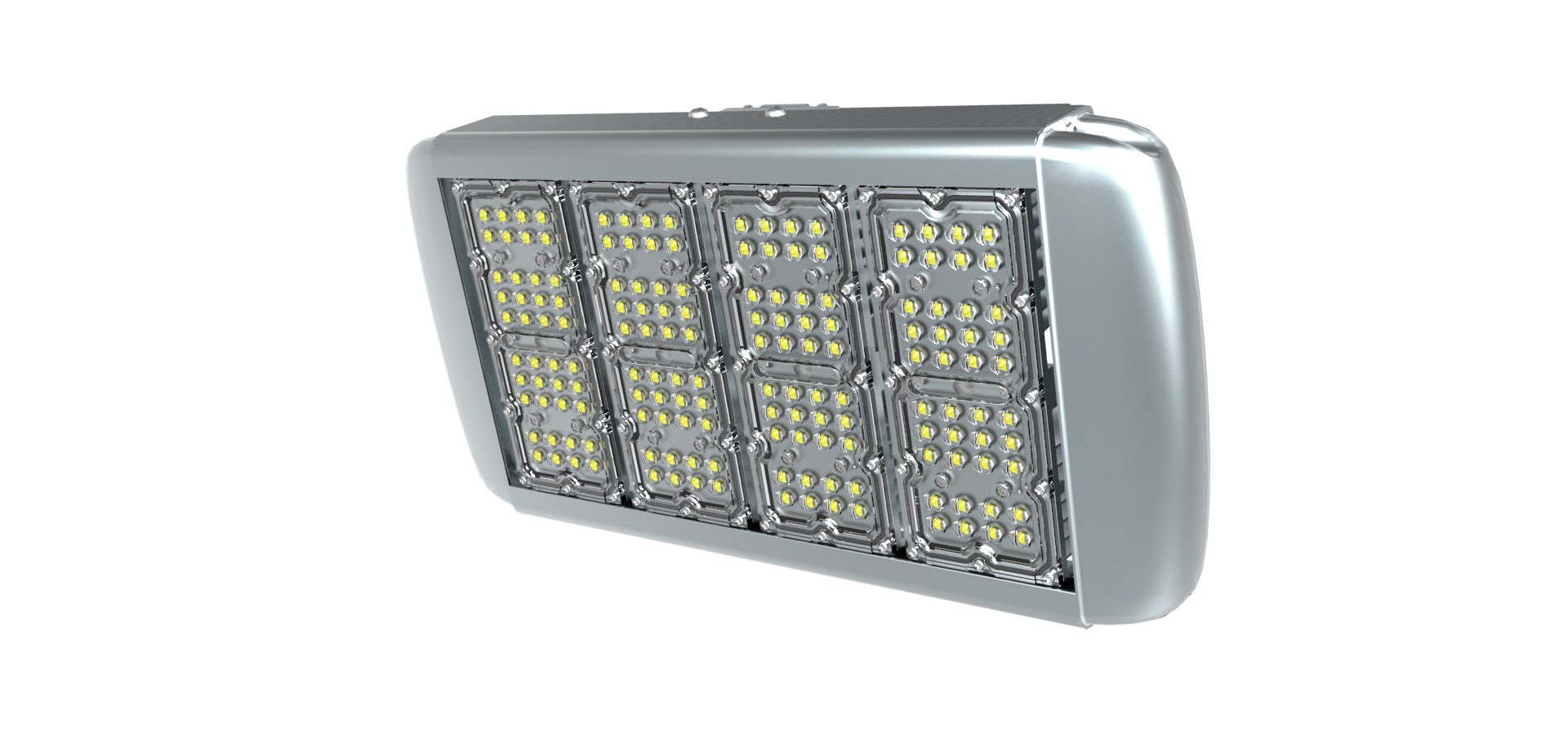

As the ugrade version of Bright Moon, Bright Moon G2 features more compact design to make tunnel lighting more affordable.
| ◎ Modular design, excellent heat dissipation performance |
| ◎ 100-277V wide voltage input range |
| ◎ CLASSI |
| ◎ Smart control system compatiable |
| ◎ Adjustable mounting bracket |
| ◎ Various light distributions available |
Applications: Tunnels, underpasses, underbridges etc.
| PARAMETERS | ||||||
|---|---|---|---|---|---|---|
| Model | UNI-TND3-1 | UNI-TND3-2 | UNI-TND3-3 | UNI-TND3-4 | UNI-TND3-5 | UNI-TND3-6 |
| Input Voltage | 100-277V | |||||
| Power Factor | >0.95 | |||||
| Rated Power | 20-40W | 50-80W | 90-120W | 130-160W | 170-200W | 240W |
| Luminaire Efficiency | 120-150 lm/W | |||||
| Luminous Flux | 2100-36000 lm | |||||
| Color Temperature | 3000/4000/5000/±300 K | |||||
| CRI | >70 | |||||

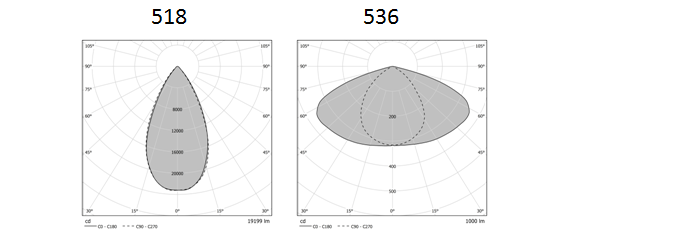

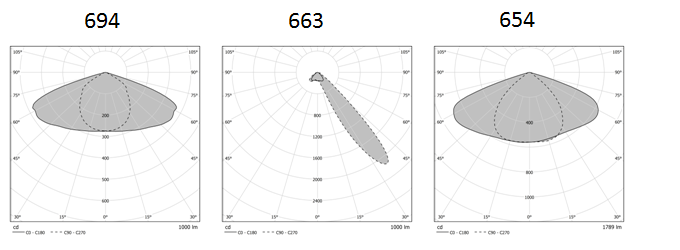

| Light Distribution | Sysmetric | |||||
| Working Temperature | -40°C~+50°C | |||||
| Working Humidity | 10%~90% RH | |||||
| Storage Temperature | -40°C~+55°C | |||||
| Lifespan | >50,000 Hours | |||||
| Housing Material | Die-casting aluminum | |||||

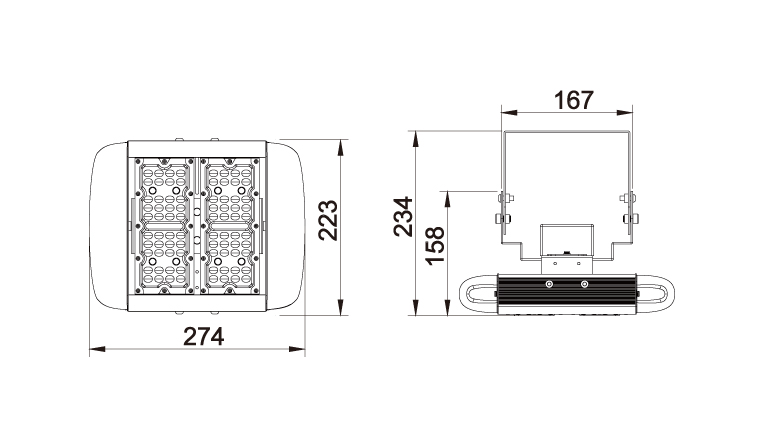

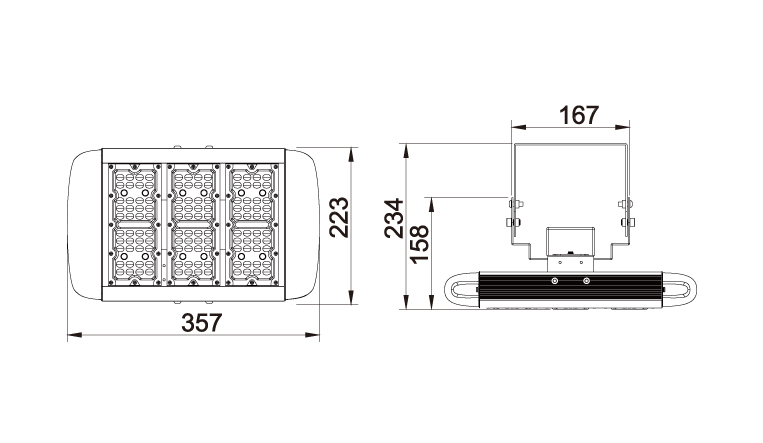

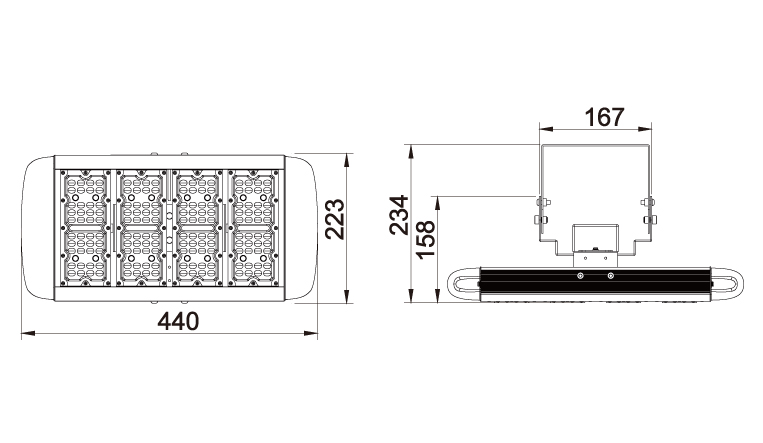

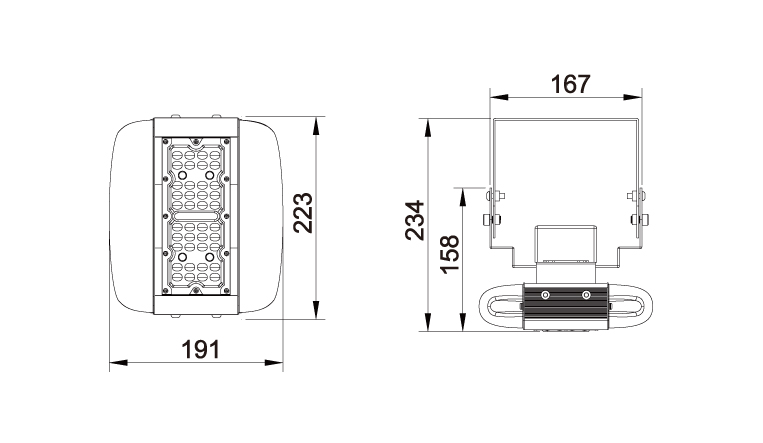

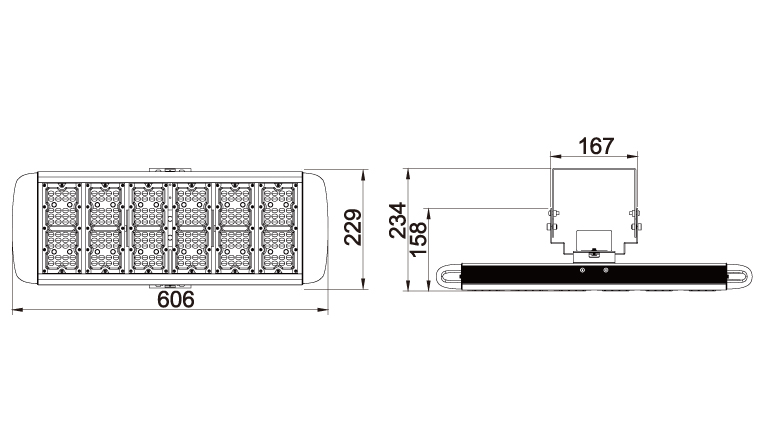

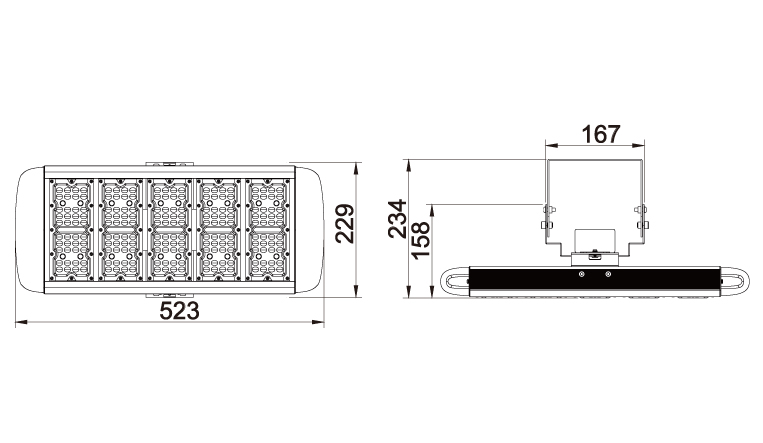

| Product Dimension | 191x223x234 | 274x223x234 | 357x223x234 | 440x223x234 | 523x229x234 | 606x229x234 |
| IP Rating | IP66 | |||||
| Certifications | TUV/CE/CB/ENEC | |||||
