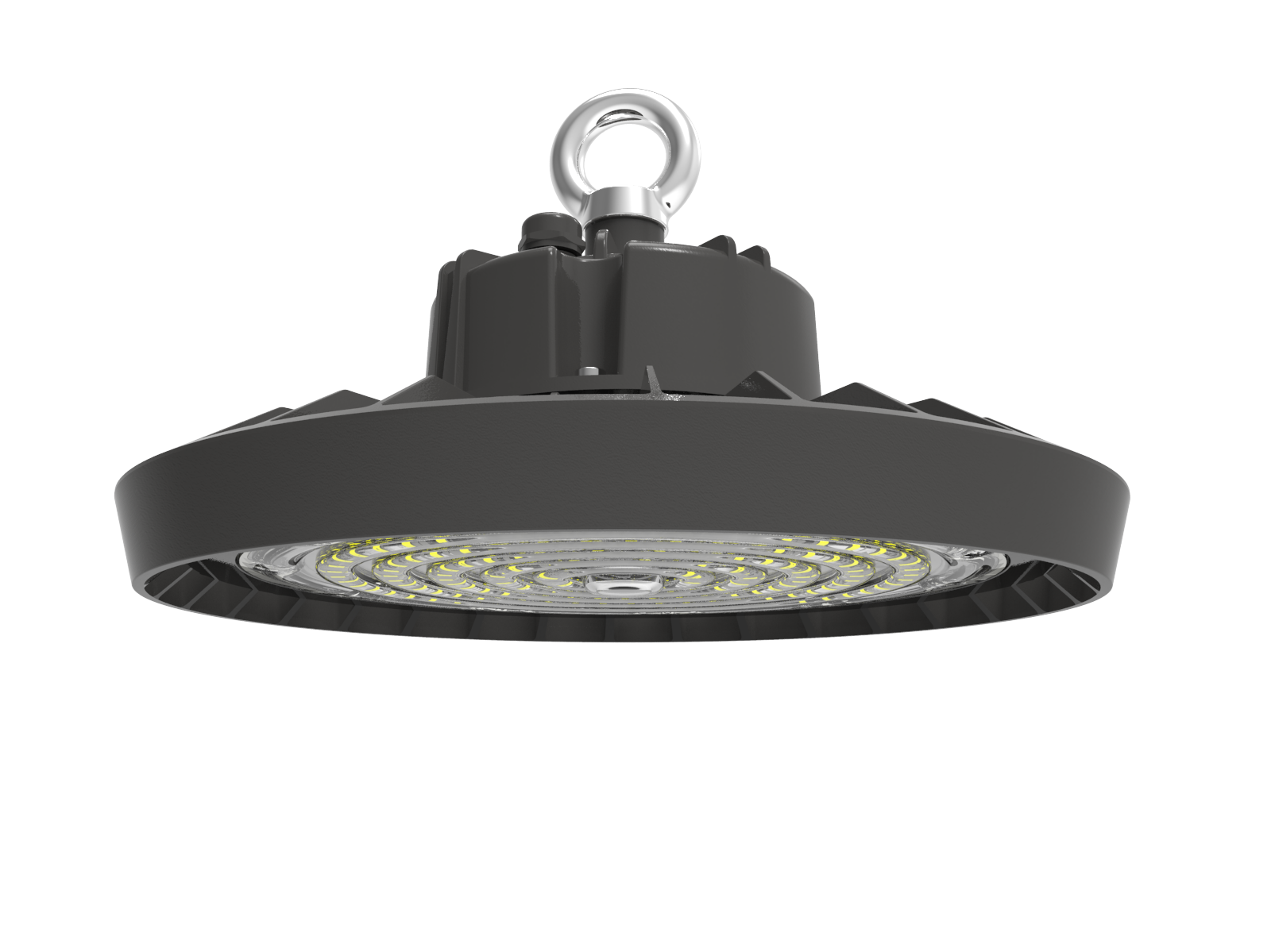

UniBay Standard range provides high performance while minimizing the product cost.
| ◎ Combining ultra-high-efficiency and reliability |
| ◎ Deliver outstanding light efficacy with up to 75% lower energy consumption |
| ◎ CLASS I |
| ◎ PF>0.9 |
| ◎ Pendant mount and U bracket mount optional |
| ◎ Various beam angles optional |
Applications: Manufacturing areas, car dealer shops, warehouses, convention centers etc.
| PARAMETERS | |||
|---|---|---|---|
| Model | UNI-EC1-100/150/200 | UNI-EC2-100/150/200 | |
| Input Voltage | 100-277V | ||
| Power Factor | >0.95 | ||
| Rated Power | 100/150/200W | 100/150/200W | |
| Luminaire Efficiency | 135 lm/W | 145 lm/W | |
| Luminous Flux | 13500/20250/27000 lm | 14500/21750/29000lm | |
| Color Temperature | 3000/4000/5000/±300 K | ||
| CRI | >80 | ||
| UGR | <19 | ||
| Beam Angles | 60°/90° | ||
| Working Temperature | -40°C~+45°C | ||
| Working Humidity | 10%~90% RH | ||
| Storage Temperature | -40°C~+55°C | ||
| Lifespan | >50,000 Hours | ||
| Housing Material | Die-casting aluminum + PC | ||

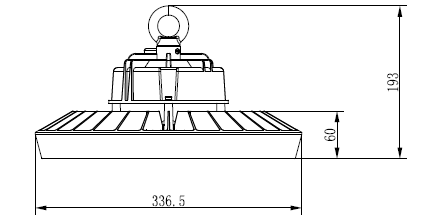

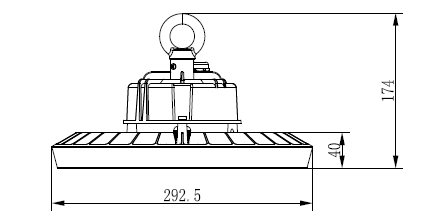

| Product Dimension(mm) | φ292.5 x H174 | φ336.5 x H193 | |
| IP Rating | IP65 | ||
| Installation Method | Ceiling mount/wall mount | ||
